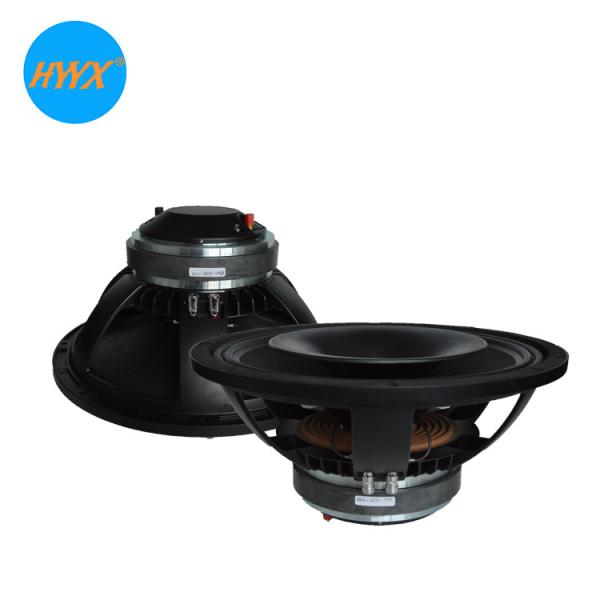

Ferrite magnet 15'' 20khz Coaxial PA Speaker With Big Horn
Ferrite magnet 15'' 20khz Coaxial PA Speaker With Big Horn
Ferrite magnet 15'' 20khz Coaxial PA Speaker With Big Horn
Ferrite magnet 15'' 20khz Coaxial PA Speaker With Big Horn
Ferrite magnet 15'' 20khz Coaxial PA Speaker With Big Horn
Ferrite magnet 15'' 20khz Coaxial PA Speaker With Big Horn
Ferrite magnet 15'' 20khz Coaxial PA Speaker With Big Horn
Ferrite magnet 15'' 20khz Coaxial PA Speaker With Big Horn
Specifications
Place of Origin :
Guangdong, China
Brand Name :
OEM
Model Number :
HYW-1575-076
Supply Ability :
50000 Piece/Pieces per Month
Packaging Details :
1. Inside + outside strong double boxes 2. Customized
MOQ :
2 Piece/Pieces
Price :
$50.00 - $70.00 / Piece
Type :
Coaxial speaker
Nominal diameter :
15 inch
Frequency response :
41hz-20khz
Program power :
1400W
RMS Power handling :
500W
Sensitivity :
100dB
LF magnet :
Ferrite
LF Voice coil diameter :
75mm
HF Voice coil diameter :
75mm
Impedance :
8 ohm
Power :
500W
Frequency Range (Hz) :
40hz-20khz
Port :
Huangpu port, Guangzhou
Description

Product Description

Features:

  • 15“ Coaxial speaker with big horn for high sensitivity design
  • 500Wrms power handling, 1000W max power
  • 41hz- 20kHz frequency response
  • 100dB sensitivity
  • Single ferrite magnet assembly
  • Inside/Outside copper voice coil

Specification
Nominal diameter
380/15
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
40-20k
Hz
RMS Power
500
Magnet material
 Ferrite
Specification LF
Sensitivity (1w/1m)
 100
dB
Nominal power handling
500
Watts
Continuous power handling
1000
Watts
Voice coil diameter
75/3
mm/ inch
Winding material
Copper
Cone material
Paper
Surround material
Cloth
Specification HF
Sensitivity (1w/1m)
110
dB
Nominal power handling
100
Watts
Continuous power handling
200
Watts
Voice coil diameter
75/3
mm/inch
Diaphragm
Titanium
T/S Parameter
Fs
 45
Hz
Re
 5.2
Qes
 0.66
Qts
 0.60
Qms
 6.58
Vas
 123.7
L
Rms
 4.1
kg/s
Cms
 0.1287
mm/N
Mms
 94.65
gr
BL
 14.58
N/A
Mounting information
Overall diameter
 395/15.5
mm/inch
Bolt Circle diameter
 375/14.76
mm/inch
Baffle Cutout diameter
 360/14
mm/inch
Total Depth
 210/8.26
mm/inch
Shipping information
Net weight
 9.2
KG
Shipping weight
 9.7
KG
Shipping box
 420x420x220
mm
