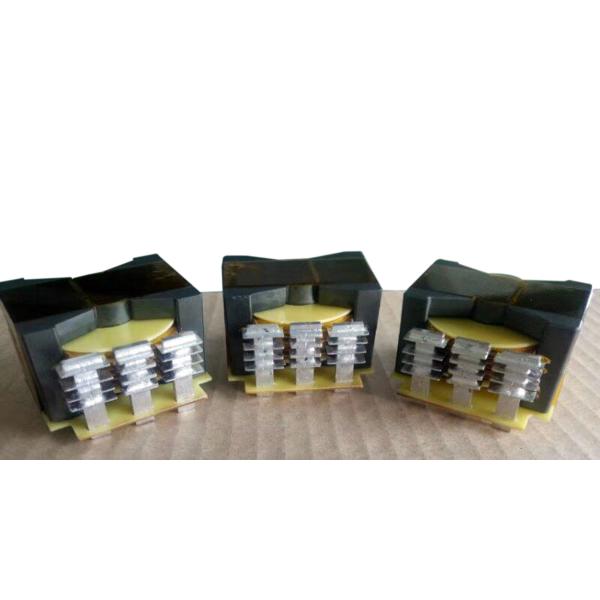

12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer
12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer
12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer
12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer
12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer
12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer
Specifications
Brand Name :
Shinhom
Model Number :
TPQ18D
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Delivery Time :
4~8 Weeks
Packaging Details :
Carton
Type :
Power Transformer
Operating Frequency :
100KHz
Core :
Mn-Zn ferrite
Thickness :
12.5mm
Operation temperature :
-40℃ to +125℃
Customized :
Customized
Description

Planar Power Transformer , PQ Type Ferrite PCB Planar Transformers

APPLICATIONS:

  • High performance DC/DC converters.
  • High efficiencies up to over 98 percent, high power density of 500 watts per cubic inch DC/DC converters.
  • For forward, full-bridge, half-bridge and push-pull DC/DC converters.
  • Input voltages between 18V and 75V, and output voltages from 18V down to 1.2V DC/DC converters.
  • Applicable to aerospace, communications, rail transportation, inverter, UPS, digital home appliances, LED lighting and other fields

FEATURES:

  • Power Rating Up to 65 Watts
  • High Efficiency of Over 98%
  • High Isolation (operational) 1500 Vdc
  • Operating Frequency 100KHz
  • Operating Temperature -40℃ to +125℃
  • High Creepage and Clearance distances between primary and secondary

12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer

12.5mm Thick 100KHz PQ Type Ferrite Planar Transformer
