Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
Specifications
Brand Name :
Shinhom
Model Number :
HS2410/2411
Place of Origin :
China
Certification :
RoHS
MOQ :
5000PCS
Packaging Details :
Carton
Delivery Time :
4~8 Weeks
Payment Terms :
T/T
Supply Ability :
1000000/MONTH
Price :
Negotiation
Turns ratio :
1:1
Pins :
24
Standards :
350 uH OCL with 8mA bias
Hi-Pot :
1500Vrms
Operating Temperature :
0℃ to 70℃
Storage Temperature :
-55℃ to 125℃
Description

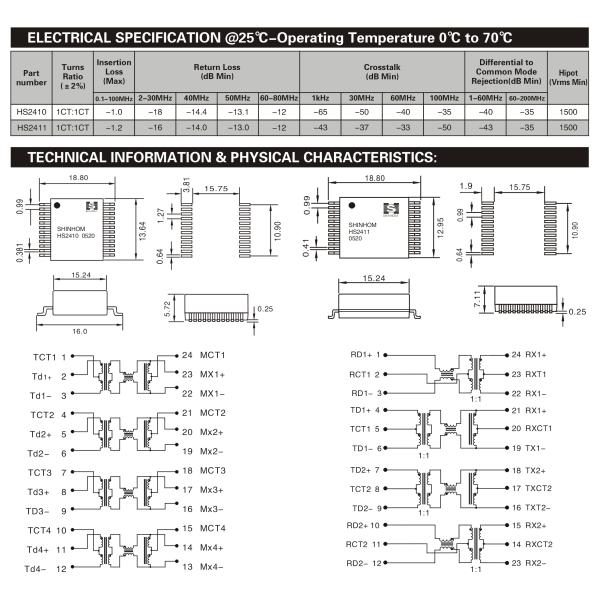

HS2410/2411 Series 1000 Base-T Magnetics modules,Ethernet Magnetics Lan Transformer,Surface Mount Lan Transformer

FEATURES:

  • 1:1 Turns Ratio
  • Full Duplex Compatible
  • PoE MAGNETICS
  • Compliant with IEEE802.3u and ANSI X.3.263
  • standards including 350 uH OCL with 8mA bias
  • Hipot : 1500 VRMS
  • Soldering methods:Wave,Reflow
  • Operating Temperature:0℃ to 70℃
  • Storage Temperature:-55℃ to 125℃

Surface Mount Ethernet Magnetic Transformer 350 uH OCL With 8mA Bias
