High Current Common Mode Choke , Ferrite Core Choke For DC / DC Converter
High Current Common Mode Choke , Ferrite Core Choke For DC / DC Converter
High Current Common Mode Choke , Ferrite Core Choke For DC / DC Converter
High Current Common Mode Choke , Ferrite Core Choke For DC / DC Converter
High Current Common Mode Choke , Ferrite Core Choke For DC / DC Converter
High Current Common Mode Choke , Ferrite Core Choke For DC / DC Converter
High Current Common Mode Choke , Ferrite Core Choke For DC / DC Converter
High Current Common Mode Choke , Ferrite Core Choke For DC / DC Converter
Specifications
Brand Name :
Shinhom
Model Number :
STRF01 Series
Certification :
RoHS
Place of Origin :
China
MOQ :
5000PCS
Packaging Details :
Carton
Delivery Time :
4~8 Weeks
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Price :
Negotiation
Inductance :
650uH~15000uH
Rated current :
1.0A~3.6A
Inductor Value :
Fixed Inductor
Transport Package :
Carton
Specification :
RoHS/SGS/UL/ISO9001
Size :
16.38*14.2*11mm
Description

STRF01 Series high current common mode inductor,SMT Toroidal Ferrtie Core Common Mode Choke Designed for DC/DC Converter

FEATURES:

· Common mode chokes for AC Power lines
· High impedance to minimize common mode noise
· Excellent EMI performance

· Toroidal common-mode inductor
· Low profile and small size SMD
· Suitable for reflow soldering
· RID common-mode choke coils
· Small-profile choke coils
· Ferrite core toroid choke coils
· Large-current choke coils
· Low resistance choke coils
· Operate temperature range :-40 ℃to + 125℃(Including self temperature rise)
· Storage temperature range: -40℃to +125℃

COMMON APPLICATIONS:

· DC/DC, AC/DC converter
· Filter and Noise suppression

· Input Filter (Series Mode)
· EMI/RFI Suppression
· Desktops,Laptops,DSC and computer peripheral
· DC/DC converter.
· LCD display
· Telecommunication Equipment
· Communication System
· Automotive Systems
· Liquid Crystal Televisions

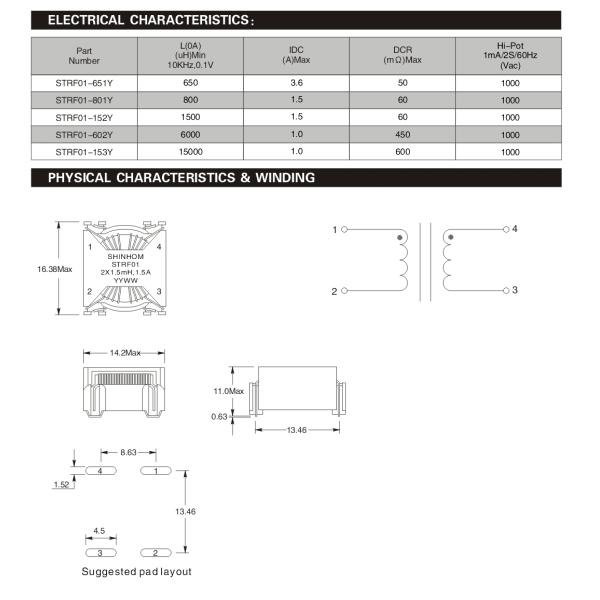

TECHNICAL INFORMATION:

·IDC: Temp. rise 40℃ Max
·lnductance test: HP4284A 100KHz 0.1V
·RDC:QuadTech 1880 Milliohmmeter
·Solder methods: Vapor Phase, Infrared Reflow
·Resistance to soldering heat:260℃ for 10 seconds
·Solvent resistance: Conforms to MIL-STD-202E
·Weight------------------1.5grams TYP
·Tape & Reel--------------700/reel

High Current Common Mode Choke , Ferrite Core Choke For DC / DC Converter

High Current Common Mode Choke , Ferrite Core Choke For DC / DC Converter

More sizes to choose from

High Current Common Mode Choke , Ferrite Core Choke For DC / DC Converter

Note: Product specifications can be customized.
