12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer
12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer
12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer
12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer
12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer
12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer
12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer
12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer
12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer
12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer
Specifications
Brand Name :
Shinhom
Model Number :
HT1040-291
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000000/MONTH
Delivery Time :
4~8 Weeks
Packaging Details :
Carton
Core material :
Ferrite core R8*28
Output voltage :
12KV
Type :
High voltage ignition coil
Usage :
High Frequency

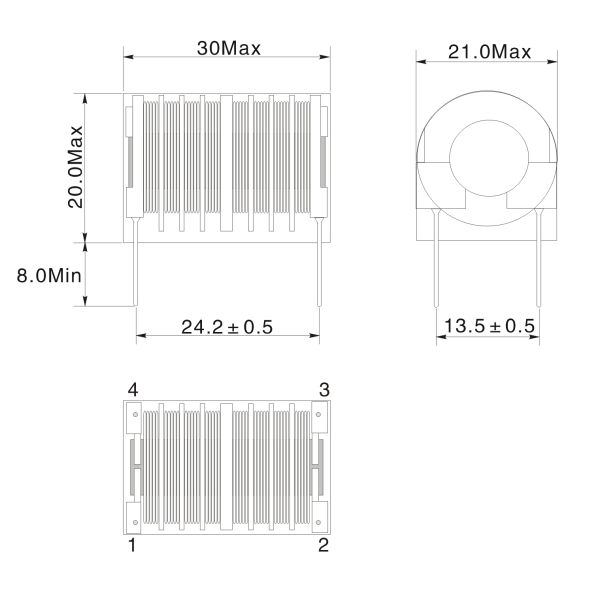

Size :
30*21*20mm
Turns ratio :
16:1
Description

12kv High Voltage Ignition Transformer Heater/Cooker Electronic Ignition Transformers For Gas/Oil Burners

Features:

  • Ignition coils for gas and oil burners
  • Customized transformers for number of applications
  • High-voltage power and pulsed transformers
  • Customized specifications are accepted
  • High-voltage Custom-made Ignition Transformer
  • High-voltage transformer for ozone generator
  • High voltage ignition transformer inductor, designed for small engine trigger, with RoHS mark

Electrical specification:

  • Inductance: Pin2-1: 705uH±15%@1KHz,0.1V
  • Inductance: Pin4-3: 167mH±15%@1KHz,0.1V
  • Turns ratio: Sec:Pri=16Ref

12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer

Primary Competitive Advantages:

  • Experienced Staff
  • Green Product
  • International Approvals
  • Military Specifications
  • Prompt Delivery
  • Quality Approvals
  • Small Orders Accepted

Notes: More products can be customized

12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer

12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer
