Specifications
Brand Name :
Shinhom
Model Number :
ACST014-016 Series
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiation
Packaging Details :
Carton
Delivery Time :
4~8 Weeks
Payment Terms :
T/T
Supply Ability :
10000/MONTH
Price :
Negotiation
Turns :
1:1000,1:2000,1:2500,1:3000
Input :
5-10A
Output :
1-5mA
Installation :
PCB Mounting
Frequency range :
20Hz~500Hz
Insulation resistance :
4000V,1mA,60S
Description

ACST014-016 Series High-frequency Current Transformers with Up to 10A Maximum Current input

FEATURES:

  1. Low profile,directly to PCB.
  2. PBT 94V0 Case burn-resistant epoxy resin,stable.
  3. Toroid high frequency current transformer
  4. Current range: up to 10A maximum
  5. Turns ratio: 1:1000,1:2000,1:2500,1:3000

APPLICATIONS:

  1. Switching power output and smoothing circuits
  2. Used as choke coil for high frequency SMPs
  3. Countermeasure against spike ripples
  4. EMI/RFI filters
  5. DC/DC converters
  6. IP and OP devices

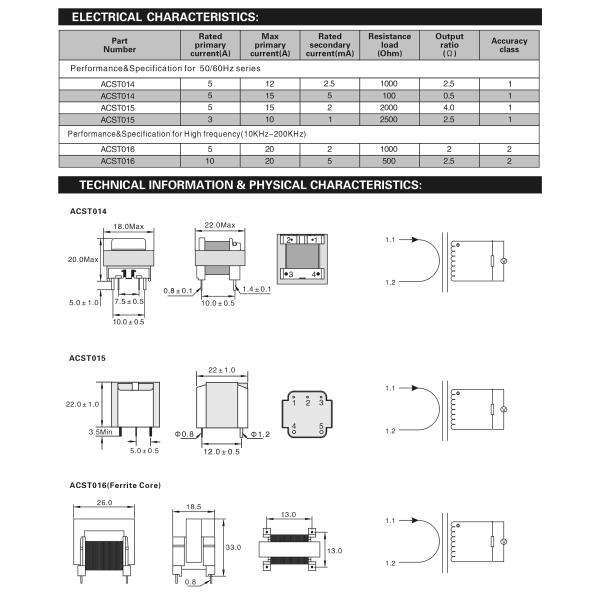

TECHNICAL INFORMATION:

  1. Working Frequency range: 20Hz~500Hz
  2. Insulation resistance: 500V DC >100MΩ
  3. Hi-Pot : 4000V 1mA 60S
  4. Temperature range: -25℃ to +85℃
  5. Storage Temperature: -40℃℃ to +105℃℃
  6. Resistance to soldering heat:260℃ for 10 seconds
  7. Marking: Part number and date code

High Sensitivity Current Sense Transformer , Toroidal Current Transformer

Note: Product specifications can be customized.
