Electrical Split Core Type Current Transformer High Frequency Self Locking
Electrical Split Core Type Current Transformer High Frequency Self Locking
Electrical Split Core Type Current Transformer High Frequency Self Locking
Electrical Split Core Type Current Transformer High Frequency Self Locking
Electrical Split Core Type Current Transformer High Frequency Self Locking
Electrical Split Core Type Current Transformer High Frequency Self Locking
Electrical Split Core Type Current Transformer High Frequency Self Locking
Electrical Split Core Type Current Transformer High Frequency Self Locking
Specifications
Brand Name :
Shinhom
Model Number :
SCTK731 Series
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000/MONTH
Delivery Time :
4~8 Weeks
Packaging Details :
Carton
Current range :
5-5000A
Output :
0-5A
Accuracy :
0.5、1.0、3.0
Specification :
Split Core
Insulating Medium :
Epoxy Resin
Customizable :
Yes
Description

SCTK731 Series Electrical High Frequency Split Core Steel Current Transformers with 5 to 5000A input

Application
SCTK731 series retro-fit (split-core) current transformer has been speciallydesigned to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe
voltage output. It can save time and the installation costs.
Current measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air-condition equipment and automation control system.Current , power and energy monitoring device.

Feature

  • The structure of the self-locking, safe, easy to install, portable
  • Wide inner window, allowing clamping of big cables or bus-bars
  • Wide range of sizes to accommodate all the existing installations



Electrical Parameter

Frequency50-400Hz
Rated Input5A-5000A
Measuring range5%In-130%In
Rated Output0-5A
Ratio≤ ± 0.5%
Phase angle≤ ±30min
Dielectric strength2.5KV/1mA/1min
Insulation ResistanceDC500V/100MΩmin


Mechanical Parameter

CasePC /UL94-V0
BobbinPC
CoreSilicon steel
Internal structureEpoxy
ConstructionScrew
Operating Temp－25℃～＋75℃
Operating Humidity≤85%
Output ConnectionTerminal


Type selection

P/N

Rated Input

(A)

Output

(A)

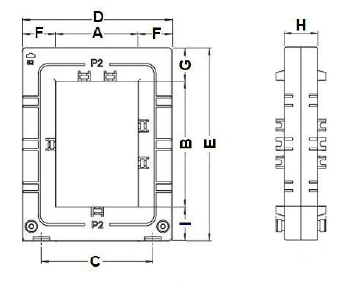

AccuracyDimensions(mm)
ABCDEFGHI
SCTK731A(23)100-400A1A/5A0.5,1.0,3.02030508810434414031
SCTK731B(58)250-1000A1A/5A0.5,1.0,3.050807811414532323333
SCTK731C(88)250-1000A1A/5A0.5,1.0,3.0808010814414532323333
SCTK731D(812)500-1500A1A/5A0.5,1.0,3.08012010814418532323333
SCTK731E(814)600-5000A1A/5A0.5,1.0,3.08014012217622847475338
SCTK731F(816)800-5000A1A/5A0.5,1.0,3.08016012017624648485338
SCTK731G(36)100-3000A1A/5A0.5,1.0,3.030608813213149365543
SCTK731H(513)100-4000A1A/5A0.5,1.0,3.0551308012519535305335

Electrical Split Core Type Current Transformer High Frequency Self Locking

Notes: Product specifications can be customized
