High Frequency Choke coil , Low Magnetic Flux Leakage For Filter LF2015
High Frequency Choke coil , Low Magnetic Flux Leakage For Filter LF2015
High Frequency Choke coil , Low Magnetic Flux Leakage For Filter LF2015
High Frequency Choke coil , Low Magnetic Flux Leakage For Filter LF2015
Specifications
Brand Name :
Shinhom
Model Number :
LF2015
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000000/MONTH
Delivery Time :
4~8 Weeks
Packaging Details :
Carton
Working Frequency :
High Frequency
Inductance range :
1.7mH to 100mH
Mode :
Common mode
Structure of Magnetizer :
Ferrite Coil
Nature of Operation :
Choke Coil
Application :
Filter
Description

Coil filter,Customized AC Line Filter Choke High Inductance Low Magnetic Flux Leakage

Features:

  • 0.35A to 2A ratings,low temperature rise
  • 1.7mH to 100mH dual chokes
  • Excellent Mechanical Strength
  • High Reliability and variant PCB-mount housing
  • Low resistance and temperature rise

Application:

  • DC/DC, AC/DC line noise suppression
  • Communication System
  • Automotive Systems
  • LCD/PDPTelevisions
  • Computer Peripheral Equipment It accord with the standards of FCC VCCI CISPR FTZ,etc, eliminating of electromagnetic noise of power and signal circuit.

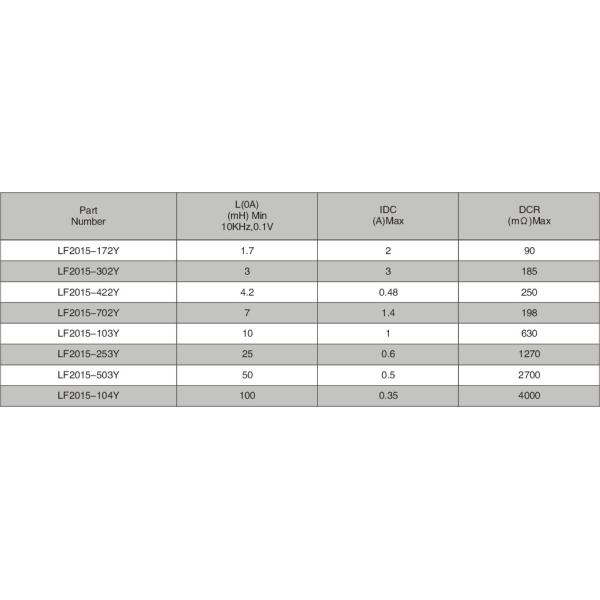

TECHNICAL INFORMATION

  • IDC Max: rating AC/DC current A @40℃
  • Hi-Pot 2500V AC winding to winding 3S.
  • Insulation resistance 100MΩ Min DC 500V
  • Temperature Rise Max:40℃
  • Inductance Testing: 10KHz 0.1V HP4284A
  • RDC:QuadTech 1880 Milliohmmeter
  • Surge current Max 10ms: 20X IDC
  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +105℃
  • Resistance to soldering heat:260℃ for 10 seconds
  • Marking: Part number and date code

High Frequency Choke coil , Low Magnetic Flux Leakage For Filter LF2015

High Frequency Choke coil , Low Magnetic Flux Leakage For Filter LF2015
