Customized Magnetic Powder Cores High Stability Low Eddy Current Losses
Customized Magnetic Powder Cores High Stability Low Eddy Current Losses
Customized Magnetic Powder Cores High Stability Low Eddy Current Losses
Customized Magnetic Powder Cores High Stability Low Eddy Current Losses
Customized Magnetic Powder Cores High Stability Low Eddy Current Losses
Customized Magnetic Powder Cores High Stability Low Eddy Current Losses
Specifications
Brand Name :
Shinhom
Model Number :
KT/KE/KP/DR/G
Certification :
RoHS
Place of Origin :
China
MOQ :
5000PCS
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Delivery Time :
4~8 Weeks
Packaging Details :
Carton
Product Name :
Iron power cores
Material :
Iron-based Nanocrystalline Core
Specifiction :
Various size
Type :
Soft
Composition :
Ferrite Magnet
Description

Various Size G type Ferrite Core , Ferrite Toroid Core Small Volume

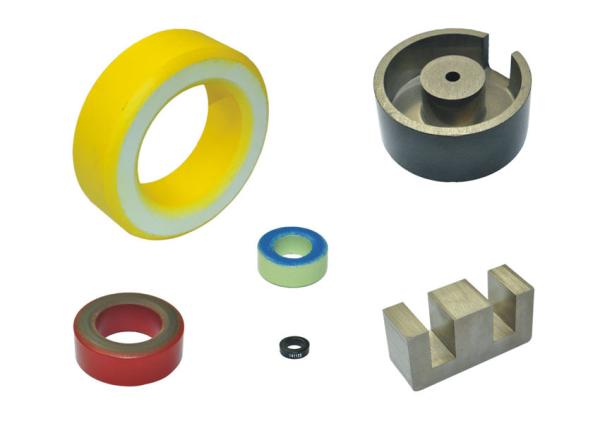

Toroidal type/E type/Cylinder type/Drum type etc. Iron power cores​

Part No. AL nH/N2 A(mm) B(mm) C(mm)
T50-26 Yellow/White 33 12.7±0.5 7.7±0.5 4.83±0.50
T68-26Yellow/White 43.5 17.5±0.5 9.4±0.5 4.83±0.50
T80-26Yellow/White 46 20.2±0.5 12.6±0.5 6.35±0.64
T90-26Yellow/White 70 22.9±0.5 14.0±0.5 9.53±0.64
T94-26Yellow/White 60 23.9±0.5 14.2±0.5 7.92±0.64
T106-26Yellow/White 93 26.9±0.5 14.5±0.5 11.1±0.64
T130-26Yellow/White 81 33.0±0.5 19.8±0.5 11.1±0.64
T150-26Yellow/White 96 38.4±0.5 21.5±0.5 11.1±0.64
T60-52Blue/Green 47 15.2±0.5 8.53±0.5 5.94±0.50
T68-52Blue/Green 40 17.5±0.5 9.40±0.5 4.83±0.50
T80-52Blue/Green 42 20.2±0.5 12.6±0.5 6.35±0.64
T90-52Blue/Green 64 22.9±0.5 14.0±0.5 9.53±0.64
T106-52Blue/Green 95 26.9±0.5 14.5±0.5 11.1±0.64
T130-52Blue/Green 79 33.0±0.5 19.8±0.5 11.1±0.64
T150-52Blue/Green 89 38.4±0.5 21.5±0.5 11.1±0.64

Features:

  • Low eddy current losses
  • High satration flux density Bs> 1.56T
  • Application for solar power converter PFC chokes and outputchokes
  • High-speed rail car power system
  • Fe-based nanocrystalline cores
  • Co-based Mag-Amp transformer cores
  • Main materials: Fe-based, nanocrystalline-alloy, Co-base
  • High saturation magnetic induction intensity
  • Small core volume
  • Rectangular structure
  • Core openings
  • Resist DC bias saturated
  • Low loss
  • Excellent temperature stability -55 to 130°C
  • Customized cores sizes and various characteristics are available

Note: since there are many specifications and varieties of t-type iron powder cores, please put forward specific requirements on shape size and inductance when ordering.
