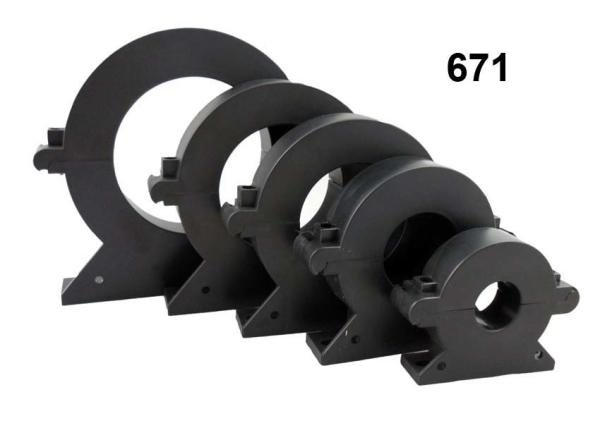

Split Core Current Transformer, 5-5000A Input, 1-5A Output
Split Core Current Transformer, 5-5000A Input, 1-5A Output
Split Core Current Transformer, 5-5000A Input, 1-5A Output
Split Core Current Transformer, 5-5000A Input, 1-5A Output
Specifications
Brand Name :
Shinhom
Model Number :
SCTK831 Series
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10000/MONTH
Delivery Time :
4~8 Weeks
Packaging Details :
Carton
Current range :
5-5000A
Output :
1-5A
Accuracy :
0.2, 0.5, 1.0, 3.0
Product name :
Split-core current transformer
perating Frequency :
50-60Hz
Customizable :
Yes
Description

SCTK831 Series Split Core Current Transformer up to 5000A Input Snap Closing / Opening,Light Weight


The SCTK831 series of split core style current transformers are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without disconnecting cables circuits for CT installation. This method permits a safer, easier and portable current measurement.

Electrical Parameter

Frequency 50-60Hz
Rated Input 5A-5000A
Measuring range 10%In-130%In
Rated Output 1-5A
Ratio ± 1.0％
Phase angle ≤ ±30min
Dielectric strength 3.0KV/1mA/1min
Insulation Resistance DC500V/100MΩmin

Features:

  1. Test range: 5 to 5000A AC input, output of 1-5A
  2. Split core design, safe, easy to install, portable
  3. Wide inner window, allowing clamping of big cables or bus-bars
  4. Test hole series size clamp leaker AC current transformer
  5. Split core current transformer with interleaved joint and hinge structure
  6. Wide range of sizes to accommodate all the existing installations
  7. Operating Temp: －25℃～＋75℃

Applications:

  1. Electrical lines and equipment of current measurement, control and protection
  2. Measures AC current flow to electric motors, lighting, air condition equipment, etc
  3. Compatible with HVAC temperature control, power management, building automation systems

Split Core Current Transformer, 5-5000A Input, 1-5A Output

Notes: Product specifications can be customized
