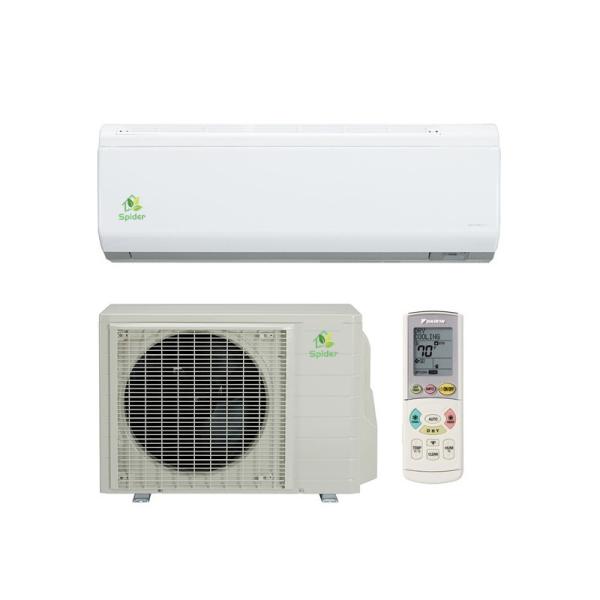

Auto Protection 9000 BTU Split Air Conditioner Optional Refrigerant CE Listed
Auto Protection 9000 BTU Split Air Conditioner Optional Refrigerant CE Listed
Specifications
Brand Name :
Spider
Model Number :
9000 BTU Split Air Conditioner
Certification :
SGS ROHS CE UL
Place of Origin :
FUJIAN
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
15000 PC per month
Delivery Time :
25-30 days
Packaging Details :
carton with plastic foam.
Power Source :
Electrical
Condition :
New
Use :
Room
Voltage :
220 (V)
Power Type :
DC
Name :
9000 BTU Split Air Conditioner
Function :
Cooling/Heating
Capacity :
9000(btu)
Description

DC Inverter 9000 BTU Split Air Conditioner With Screw Rotary Type Compressor

Features:

Big LCD display
Ultra-quiet design
24-hour timer
LCD remote controller
Fault self-diagnosis function
Efficient energy saving
Ultra-strong EMC
Sleeping mode function
Independent dehumidification (Dry mode)
Constant fan speed control
360-D blowing
PG motor
CE CB TUV GS approvaled
Double-muting technology
Auto-defrost function
With 3m connection copper pipe and 4m electrical cables
Auto-restart function
Galvanized outdoor casing with anti-rust layer

Parameters

Name

Auto Protection 9000 BTU Split Air Conditioner Optional Refrigerant CE Listed

Class in Cooling

A

Class in Heatling

A

Control type

Remote Control

Performance

Cooling Capacity

Btu/h

9000(3410~11500)

Heating Capacity

Btu/h

10000(5120~12700)

EER

W/W

3.22

COP

W/W

3.28

Noise Level

Indoor(Hi/Med/Lo)

dB(A)

36

Outdoor

dB(A)

51

Pressure

High(DP)

MPa

4.5

Low(SP)

MPa

1.9

Moisture Removal

L/h

0.6

Electrica Data

Voltage,Frequency,Phase

V~,Hz,Ph

220V-50HZ

Rated Power Input

Cooling

W

820(220~1200)

Heating

W

890(370~1400)

Rated Current

Cooling

A

3.7(1.3~5.5)

Heating

A

4.0(1.5~6.5)

Max. Input Consumption

Cooling

W

1200

Heating

W

1500

Max. Current

Cooling

A

5.5

Heating

A

6.5

Aunual energy consumption

kwh

410

Refrigerating System

Refrigerant

R410A/520g

Compressor

Type

ROTARY

MFG

RECHI

Fan System

Indoor air circulation Cooling/heating

m3/h

430/430

Indoor fan type

Cross Flow

Indoor fan speed H/M/L

Cooling

rpm

1250/1150/900

Heating

rpm

1250/1150/900

Dry

rpm

900

Sleep

rpm

900

Indoor fan motor output

W

15

Outdoor fan type

Propeller fan

Outdoor fan speed

rpm

900

Outdoor fan motor output

W

31

Package System

Net Dimension

Indoor(WxHxD)

mm

718×240×180

Outdoor(WxHxD)

mm

700×256×552

Net Weight

Indoor

kg

7

Outdoor

kg

28

Packing Dimension

Indoor(WxHxD)

mm

805×305×255

Outdoor(WxHxD)(Without Pipe)

mm

803×325×600

Outdoor(WxHxD)(With Pipe)

mm

803×361×600

Gross Weight

Indoor

kg

9

Outdoor (Without Pipe)

kg

31

Outdoor (With Pipe)

32

Main Features

1, World famouns brand rotary type compressor
2, High Efficient Internal Thread Copper pipe for condensor and evaporator
3, LED digital display, Best Visibility
4, Self-diagnose capability, error code showing for detection convenience
5, Intelligent Defrost, Independent Dehumidification, Sleep Mode, Quiet Operation
6, Low Voltage Startup, Auto-protection, Auto Restart
7, Optional Refrigerant: R410A & R22
8, Optional Voltage: 220V/50Hz & 220V/60Hz
9, With CE, RoHS, ISO9001, ISO14001 standard
10, Sales Area: Mid East, Africa, South America, Europe, Asia, Central America, Oceania.

Details

Compressor

Brand: GMCC
Original: China
The independent compression technology effectively improves the jet cycle energy efficiency by independently compressing the flash gas, reduces the loss of compression indication efficiency, reduces the dryness of the refrigerant entering the evaporator, improves the evaporation heat transfer efficiency, and achieves high energy efficiency.

Copper tube

Original: China
Due to the increased internal surface area of the internally threaded copper tube, its thermal conductivity is 20 to 30 percent higher than that of the optical tube.

Heat Exchanger

Original: China
The double-row heat exchanger indirectly increases the heat exchange area of the copper tube, and the heat exchange is more effective and thorough, which can save energy and increase the working efficiency of the machine.

Connecting pipe

Original: China
The design of the copper tube in the heat exchanger is two-in and two-out, and the refrigerant enters and exits at a high speed, which effectively increases the heat exchange efficiency of the refrigerant.

FAQ

Q1:What's the warranty of your air conditioner?

A1: Our warranty is complete unit for 1 year and compressor for 3 years.

Q2:Can you allow trail order firstly?

A2:Of course,small order also can be allowed.

Q3:What kind of certification do you have for your air conditioner?

A3:We have CCC,CE,ROHS,EMC,ISO9001 for our air conditioner.

Q4:Can you export your air conditioner?

A4:Yes,above 90% are exported
