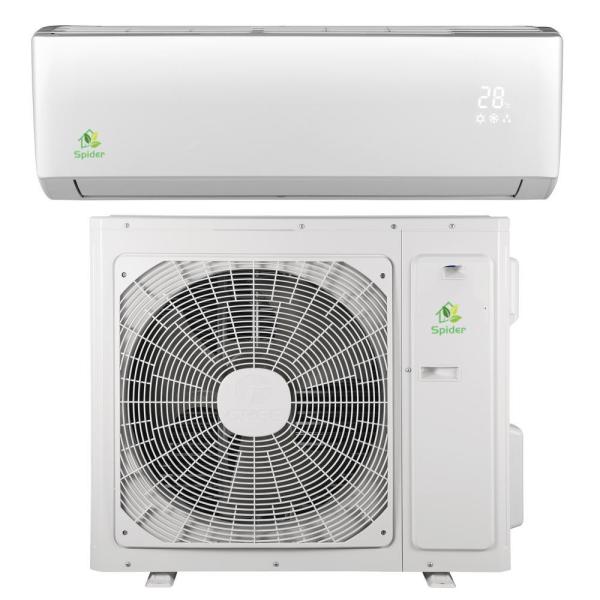

Auto Restart Split Type Air Conditioning Unit , Room Mini Split Ac 18000 Btu
Auto Restart Split Type Air Conditioning Unit , Room Mini Split Ac 18000 Btu
Specifications
Brand Name :
Spider
Model Number :
18000 BTU Split Air Conditioner
Certification :
CB, CE, RoHS, SASO, UL
Place of Origin :
FUJIAN
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
15000 PC per month
Delivery Time :
25-30 days
Packaging Details :
carton with plastic foam.
Name :
18000 BTU Split Air Conditioner
Function :
Cooling/Heating
Use :
Room
Power Source :
Electrical
Noise Level :
≤42dB(A)
Capacity :
18000(btu)
Condition :
New
Power :
1200(W)
Description

Auto Restart Split Type Air Conditioning Unit , Room Mini Split Ac 18000 Btu

Product Description

9000btu-36000btu cooling capacity

Fast Cooling, inverter and no-inverter

Refrigerant: R22 or R410A for choice

Cheaper Split Air Conditioner 9000 btu

World famous brand rotary type compressor

High Efficient Internal Thread Copper pipe for condenser and evaporator

LED digital display, Best Visibility

Self-diagnose capability, error code showing for detection convenience

Intelligent Defrost, Independent De-humidification, Sleep Mode, Quiet Operation

Low Voltage Startup, Auto-protection, Auto Restart

Advantage

1) Rapid cooling, dehumidification effect is good.
2) Ultra-quiet operation, quiet and low-pitched.
3) Easy to install and overhaul.
4) Economical and practical, flexible to use.

Parameters


Name

Auto Restart Split Type Air Conditioning Unit , Room Mini Split Ac 18000 Btu

Power supply

Ph-V-Hz

220-240V- 50Hz, 1Ph

Cooling

Capacity

Btu/h

18000

Input

W

1860

Rated current

A

8.2

EER

W/W

2.84

Heating

Capacity

Btu/h

18000

Input

W

1700

Rated current

A

7.8

COP

W/W

3.10

Max. input consumption

W

2700

Max. current

A

12.3

Starting current

A

41

Compressor

Model

PA200M2AS-4KU2

Type

ROTARY

Brand

GMCC

Capacity

Btu/h

16975/17179

Input

W

1670/1795

Rated current(RLA)

A

7.85/8.15

Locked rotor Amp(LRA)

A

41

Thermal protector

-----

Thermal protector position

INTERNAL

Capacitor

uF

45

Refrigerant oil/oil charge

ml

ESTEL OIL VG74 · 620

Indoor fan motor

Model

RPG45C

Input

W

72

Capacitor

uF

3.0

Speed(Hi/Mi/Lo)

r/min

1180 / 1100 / 900

Indoor coil

a.Number of rows

2

b.Tube pitch(a)x row pitch(b)

mm

21x13.37

c.Fin spacing

mm

1.3

d.Fin type (code)

Hydrophilic aluminium

e.Tube outside dia.and type

mm

Φ7,innergroove tube

f.Coil length x height x width

mm

780x315x26.74

g.Number of circuits

5

Indoor air flow (Hi/Mi/Lo)

m3/h

1050/980/800

Indoor noise level (Hi/Mi/Lo)

dB(A)

48/46/39

Indoor unit

Dimension(W*D*H)

mm

1045x235x315

Packing (W*D*H)

mm

1135x395x315

Net/Gross weight

Kg

12 / 15

Outdoor fan motor

Model

YDK48-6H(A)

Input

W

110

Capacitor

uF

3.0

Speed

r/min

890 / -- / --

Outdoor coil

a.Number of rows

2

b.Tube pitch(a)x row pitch(b)

mm

21x13.37

c.Fin spacing

mm

1.4

d.Fin type (code)

Hydrophilic aluminium

e.Tube outside dia.and type

mm

Φ7,innergroove tube

f.Coil length x height x width

mm

660x546x26.74

g.Number of circuits

3

Outdoor noise level

dB(A)

59

Outdoor unit

Dimension(W*D*H)

mm

760x285x590

Packing (W*D*H)

mm

887x355x645

Net/Gross weight

Kg

35.5 / 38

Refrigerant type

g

R410A/1280g

Design pressure

MPa

4.2/1.5

Refrigerant piping

Liquid side/ Gas side

mm(inch)

Φ6.35/Φ12.7(1/4"/1/2")

Max. refrigerant pipe length

m

25

Max. difference in level

m

10

Connection wiring

2.5(Optional)

Plug type

2.5x3

Thermostat type

Remote Control

Operation temperature

℃

17-30

Room temperature

Indoor(cooling/ heating)

℃

17-32/0-30

Outdoor(cooling/heating)

℃

18-43/-7-24

Application area (Cooling Standard)

m2

24-35

Qty’per 20’ /40’ /40'HQ

78/166/190

F&Q

Are you a manufacturer or trading company?

We are a manufacturer that specialized in ice machine. Our products have abtained the CE

How can I get some samples?

Usually we can’t offer free sample, pls pay the sample and express fee, the sample costing can be deducted in your first large order

What’s your delivery time?

1.The samples can be sent to you within 15-20 days

2.The batch order can be shipped to you within 15-20 days after down payment received
