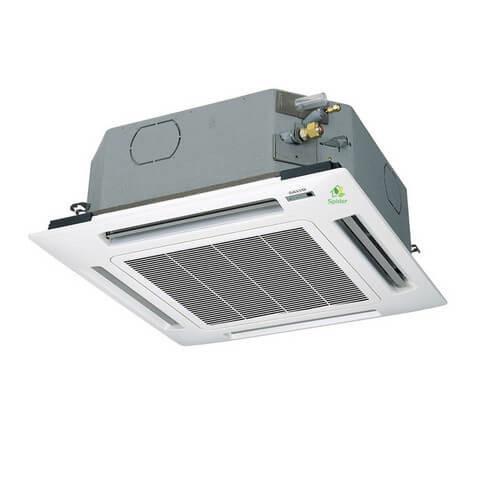

Indoor Central AC Unit Cassette Fan Coil Unit VRV VRF System Heating / Cooling
Introduction
1. Efficient and energy-saving, reliable operation
2. Grading start, run by station
3. Modular design, multiple unit combinations, meet more needs
4. Easy to use, flexible control
5. Run quiet
6. Intelligent centralized control
Main Feature:
1. Control box with ventilation system
2. Original imported circuit board
3. Black heat sink fins for better heat dissipation
4. Original imported compressor
5. Bionic cooling fan, low air resistance, good heat dissipation
6. Equipped with intelligent control system, smarter.
Parameters
Power supply | V, Ø, Hz | 220, 1,50 | 220, 1,50 | 220, 1,50 | |
Capacity | Cooling | kW | 11.2 | 14 | 15.5 |
Heating | kW | 12.5 | 16 | 18 | |
Power | Cooling | kW | 2.6 | 3.92 | 3.96 |
Heating | kW | 2.91 | 4.08 | 4.09 | |
COP | Cooling | W/W | 4.30 | 3.57 | 3.91 |
Heating | W/W | 4.30 | 3.92 | 4.4 | |
Air volume | m3/min | 60 | 110 | 110 | |
Connecting pipe | Liquid | mm(inch) | 9.52(3/8) | 9.52(3/8) | 9.52(3/8) |
Gas | mm(inch) | 15.88(5/8) | 15.88(5/8) | 19.05(3/4) | |
Dimension(WxHxD) | mm | 950×834×330 | 950×834×330 | 950×1380×330 | |
Weight | kg | 70 | 73 | 94 | |
Noise | Cooling | dB(A) | 54 | 55 | 52 |
Heating | dB(A) | 56 | 58 | 54 | |
Signal Line | No.xmm | 2C × 1.0 ~ 1.5 | 2C x 1.0 ~ 1.5 | 2C x 1.0 ~ 1.5 | |
Refrigerant | name | R410A | R410A | R410A | |
quantity | kg | 1.8 | 3 | 3 | |
Max quantity of indoor unit | 6 | 8 | 9 |
