3500GPM Split Case Centrifugal Pump
3500GPM Split Case Centrifugal Pump
3500GPM Split Case Centrifugal Pump
3500GPM Split Case Centrifugal Pump
3500GPM Split Case Centrifugal Pump
3500GPM Split Case Centrifugal Pump
3500GPM Split Case Centrifugal Pump
3500GPM Split Case Centrifugal Pump
3500GPM Split Case Centrifugal Pump
3500GPM Split Case Centrifugal Pump
Specifications
Brand Name :
CNP NM FIRE
Model Number :
SCF250-200-600(UL/FM)
Certification :
UL /FM/Non-listed
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
60 Days
Packaging Details :
Export Packing
Engine :
NM&UL
Capacity :
3500GPM
Head :
130PSI
RPM :
1480
Casing :
Ductile Cast iron
Impeller :
SS304
Usage :
fresh water , sea water
Fuel :
Electric , Diesel
Description

  • 3500GPM 130PSI Diesel Engine Split Case Centrifugal Pump Centrifugal Fire Pump Ul Fm Approved Fire Pump

 You can leave the flow, head and other information about the project, I will recommend the most suitable pump set for you.

NMFIRE is the first NFPA (National Fire Protection Association) member in China's pump industry and also the only Chinese company among the members of EFSN (European Fire Sprinkler Network). We are the first company in China to receive both UL/FM fire pumps and UL/FM fire diesel engines. Our company was a key contributor to the revision of China's fire pump industry standards. Our products technology and certificated range are leading in both the domestic and global market place.

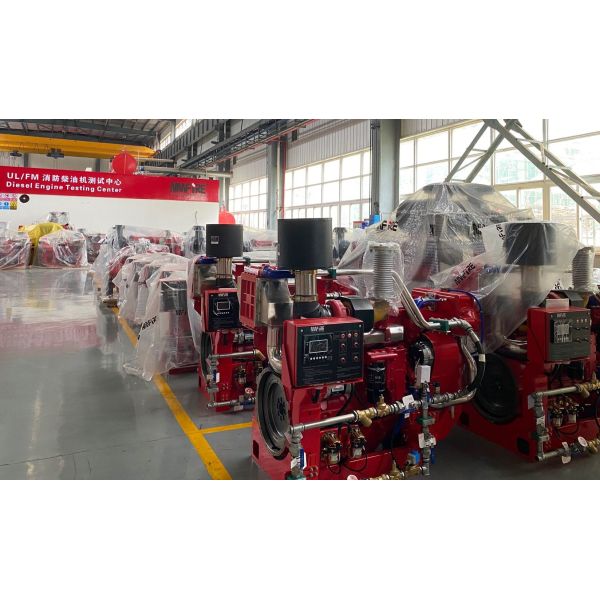

Diesel Engine Pump Set( Heat Exchanger)

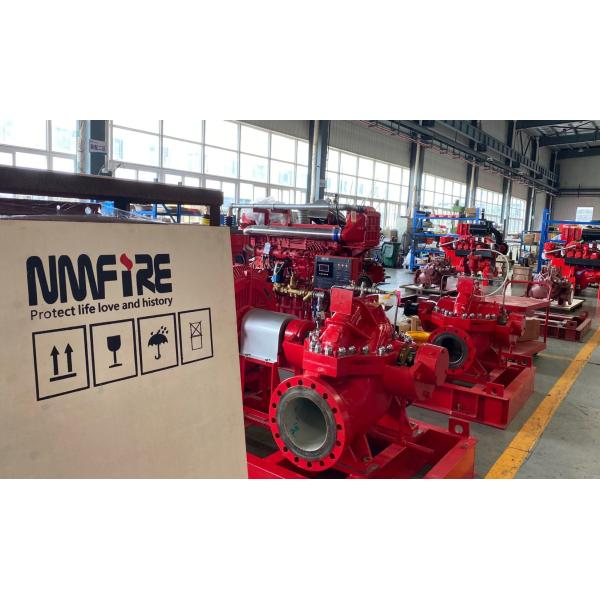

NM Fire Split Case Pump
Model SCF250-200-600(UL/FM) This Diesel Engine Group includes the pump(air relief valve, inlet & outlet gauges) Diesel Engine, Commonbase, Flexible exhaust connector, Control System, Battery, Silencer, Coupling (non-listed), Cooling System.
Please contact me if you need a Fuel tank, Main relief valve, Waste corn, or other accessories.
Capacity 3500GPM
Head 130PSI
RPM 1480rpm
Material: 　
Casing Ductile Cast iron
Impeller SS304
Shaft AISI 4340
Shaft sleeve SS304
Seal Gland packing
Wear ring Bronze
Bearing SKF
Engine: NM&UL
Model: NM6-128
Controller : c(UL/FM)
Model: GPD24-220-C05
Jockey Pump set: 　
Pump: NM FIRE CDL
Control Panel Tornatech





  • About NMFIRE
NMFIRE is not only a UL/FM fire pump manufacturer but also a UL/FM fire engine manufacturer. This makes us very different than the other suppliers.
A fire pump is the heart of an automatic sprinkler system, providing the needed water flow and pressure to allow the system to successfully defend against a fire involving hazards in a facility. Select a safe and reliable fire pump system, maintaining an adequate and reliable water supply is essential for any life and property protected by automatic sprinklers
UL Listed and FM Approvals will audit the facilities of each manufacturer of the entire fire pump system, ensuring adherence to their stringent standards and production to the highest level of quality and reliability on an ongoing basis
NMFIRE, not only produce the UL/FM fire pump, but also produce the UL/FM fire engine, we know more knowledge about the main parts of the fire pump system, and know how to make it work more safer.

  • Five Advantages of CNP NM FIRE

 ​① The late-mover advantage of products, we R&D better fire products than other Suppliers; ② Have the most complete and all series of fire pump models; ③ Have listed diesel engines with self-owned brand--- NM FIRE； ④ Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services； ​⑤ Shorter delivery time.







​

  • FAQ

 Q1.Do you have the UL-LISTED Fire Pump Sets? Yes, We have the UL/FM and NFPA standard Fire Pump Sets.  Q2.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ? Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.  Q3.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ? You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.  Q4.I need the UL/FM Vertical Tubine Fire Pump Set ,please sent me the price. For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.If you need Jockey Pump or other accessories,please tell us together.
  • Service:

1. Reply within 24 hours.
2. High-quality products and the most reasonable price
3. Data and chemical technology support.
