NFPA20 Containerised Fire Fighting Pump UL FM Approved
NFPA20 Containerised Fire Fighting Pump UL FM Approved
NFPA20 Containerised Fire Fighting Pump UL FM Approved
NFPA20 Containerised Fire Fighting Pump UL FM Approved
Specifications
Brand Name :
CNP NM FIRE
Model Number :
SCF200-150-310
Certification :
UL /FM
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T
Delivery Time :
60 Days
Packaging Details :
Export Packing
Engine :
NM&UL
Capacity :
1500GPM
Head :
130PSI
RPM :
2900
Casing :
Ductile Cast iron
Impeller :
SS304
Description

  • NFPA20 Containerised Fire Fighting Pump Sets Fire Fighting Products Fire Pump Group UL FM Approved

DESCRIPTION

After simply connecting the water and power supplies on-site, the unit is immediately operational.

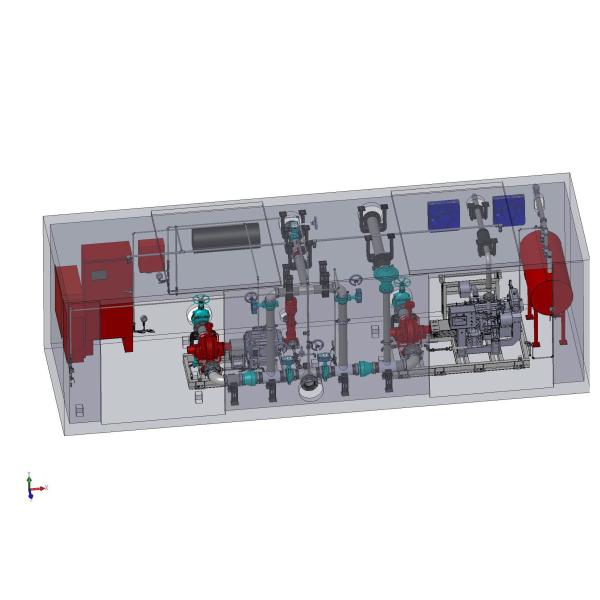

3D design built in a clean, controlled environment to a high NFPA20 high engineering standard.
Fully tested at an ISO 9001 manufacturing facility prior to shipment.

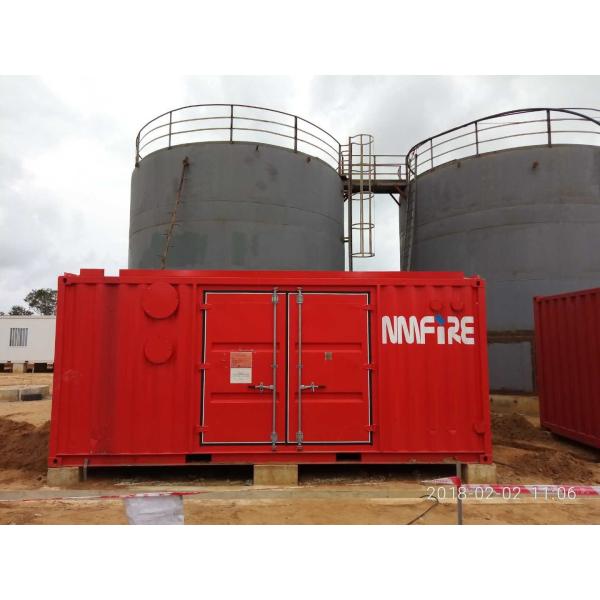

Once on-site, the containerized pump house can simply be lowered onto a prepared concrete base.

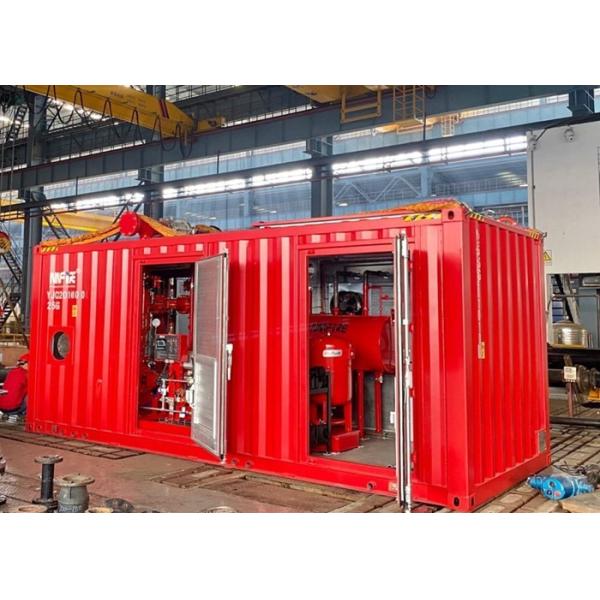

The integral pumps station, compact, safe, step in place, including:
Electric driven pump, diesel driven pump, and jockey pump.
All the controllers
Pipework and Valves
Fuel Tank
Lighting, Air System
Wall insulation reduces environmental noise.

Product Details

NMFIRE is not only a UL/FM fire pump manufacturer but also a UL/FM fire engine manufacturer.

This makes us very different than the other suppliers.

NO. Name Model
1 OS&Y Gate Valve (Suction Control Valve) 8"
2 Test Header DN65
3 Butterfly Valve
(Test the pipe)		 8"
Butterfly Valve
(Test Header)		 8"
4 Flow Meter 8"-1500-G
5 Automatic Air Release 3410AR-116.3 1/2"
6 Diesel engine
assembly		 NM6-110E 2900rpm/143kw
The diesel auxiliary control cabinet 　
Battery Box 　
Battery 　
Silencer 　
Coupling 　
Coupling Shield 　
Flywheel 　
Sleeve 　
Fuel Tank 800L D.W
7 Pump assembly SCF200-150-310 1500usgpm@130psi
Vacuum Manometer Φ100 -0.1~9bar
Pressure Gauge Φ100 0~300psi
Automatic Air Release 3410AR-116.3 1/2"
8 Check Valve
(Pump Discharge)		 8"
9 OS&Y Gate Valve (Discharge Control Valve) 8"
...... ......
Container 20"
Application

With the progress of city and industry development, the application of fire fighting can be divided into commercial fire fighting and industrial fire fighting.

Commercial fire fighting includes hotels, hospitals, supermarkets, metro stations, airports, office buildings, schools, warehouse,s etc.,

Industry fire fighting includes petrochemical power plants, industrial enterprises, electronic industry, seaport and dock, offshore platform, etc...
Fire Adavatages of CNP NM FIRE

​① The late-mover advantage of products, we R&D better fire products than other Suppliers;
② Have the most complete and all series of fire pump models;
③ Have listed diesel engines with self-owned brand--- NM FIRE；
④ Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services；
⑤ Shorter delivery time.
Certificates

Our products are manufactured to the highest standards in the fire fighting market

Split Case Pump: UL Listed and FM approved, Flow range:300gpm-8000gpm

End Suction Pump: UL Listed and FM approved, Flow range:50gpm-750gpm

Vertical In-Line Pump: Flow range:50-1500gpm

Vertical Turbine pump: UL Listed and FM approved, Flow range:100gpm-7000gpm

Diesel Engine:UL Listed and FM approved,Power range: 51hp-1207hp


FAQ

​

Q1. Do you have the UL-LISTED Fire Pump Sets?
Yes, We have the UL/FM and NFPA standard Fire Pump Sets.


Q2. I need your motor drive End-suction/Split-casing fire pump, what information should I send to you?
Sir/Madam, you can provide the Capacity, Heed, Voltage, and Frequency, we will make the quotation for you, If you need a Jockey Pump or other accessories, please tell us together.


Q3. If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information should I send to you?
You can send the Capacity Heed, Temperature, and Altitude (temperature and altitude will affect the performance of diesel engines). If you need a Jockey Pump or other accessories, please tell us the Voltage and Frequency or accessories together.


Q4. I need the UL/FM Vertical Turbine Fire Pump Set, please sent me the price.
For the motor Diver Vertical Turbine Fire Pump Set: you should give us the Capacity, Heed, Voltage Frequency, and the tank deep.For the Diesel Engine Drive Vertical Turbine Fire Pump Set: you should give us the Capacity, Heed, and the tank deep. If you need a Jockey Pump or other accessories, please tell us together.
About Us

  • Our mission is to produce the highest standard products with advanced technology to "Protect life, love and history" for the big world.

    The first company in the world was authorized by UL CCIC as a witness testing center for both fire pumps and fire fighting engines.NMFIRE is the only company in the world that owns two witness laboratories meeting of UL448 for fire pumps and UL1247 for diesel engines.
