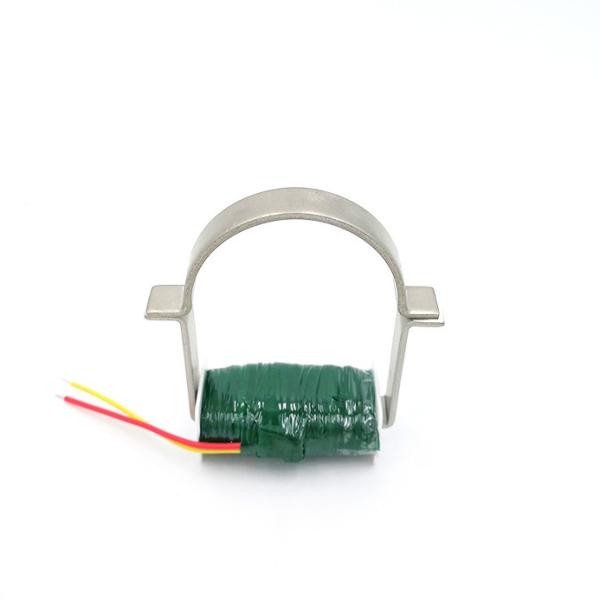

11mW Permalloy Punch Core Split Coil 18mm Current Transformer
11mW Permalloy Punch Core Split Coil 18mm Current Transformer
Specifications
Brand Name :
HEMEI
Model Number :
66*18*2MM
Certification :
CE/UL
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000PCS/Month
Packaging Details :
Standard Carton
Material :
Permalloy
Type :
Current Transformer
Process :
stamping,bending,cnc milling stamping,printing
Size :
Customer's Requst,as drawing,Customized
Color :
printing / enamel / laser / anodize / plating /injection etc.
Technique :
Stamping,Polished
Service :
Customized OEM,oem/ odm,OEM Service
Description

Permalloy Punch Core

Application:current transformer

Commonly used alloys are 1J50, 1J79, 1J85 and so on. The saturation magnetic induction of 1J50 is slightly lower than that of silicon steel, but its magnetic permeability is dozens of times higher than that of silicon steel, and its iron loss is also 2 to 3 times lower than that of silicon steel. It is made into a transformer with a higher frequency (400~8000Hz), and the no-load current is small. It is suitable for making a small high-frequency transformer below 100W. 1J79 has good comprehensive performance and is suitable for high frequency and low voltage transformers, leakage protection switch cores, common mode inductance cores and current transformer cores. The initial permeability of 1J85 can reach more than 100,000 105, which is suitable for low-frequency or high-frequency input and output transformers, common mode inductors and high-precision current transformers with weak signals.

size Input Current Turns ratio Workload Voltage Output Power
66*18*2mm 10A 3500T 3.3K 6.2V 11mW
68*10*2mm 10A 4100T 3.3K 4.5V 6mW
73*10*2mm 10A 4100T 3.3K 4.5V 6mW

11mW Permalloy Punch Core Split Coil 18mm Current Transformer
