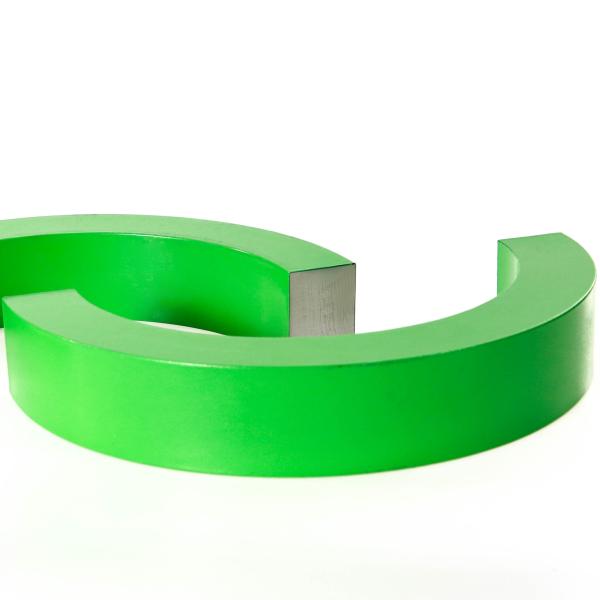

Alloy 5A Soft Magnetic Powder Cores Transformer Iron 1j85
Alloy 5A Soft Magnetic Powder Cores Transformer Iron 1j85
Alloy 5A Soft Magnetic Powder Cores Transformer Iron 1j85
Alloy 5A Soft Magnetic Powder Cores Transformer Iron 1j85
Specifications
Brand Name :
HEMEI
Model Number :
55*75*10mm
Certification :
CE
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Standard Carton
Material :
Permalloy
Primary Input :
5A
Output Power :
38MW Min
Voltage :
74VAC
Coil Structure :
Toroidal
Usage :
Protection, Measurement
Description

Soft Magnetic Alloy 1j85 Permalloy for Transformer Core
Mu 85 is a nickel-iron-molybdenum alloy with very high initial and maximum magnetic permeabilities and minimal core losses at low field strengths. This vacuum-melted product also offers the advantages of small size and weight in magnetic core and shielding materials. Due to its high magnetic permeability it is used in manufacturing transformers and inductors. Mu 80 is also used as a component for both saturating and non-saturating application.

Application:
They are suitable for the application in weak magnetic field, can be used for manufacturing high sensitivity and small power transformer, low power magnetic amplifier, relay, head of magnetic recording device, zero sequence current transformer, power converter, precision current transformer, magnetic amplifier, power transformer, choke, pulse transformer, change polarity pulse transformer, DC voltage converter, magnetic modulator, constant inductance element, unipolar pulse transformer, magnetic shielding, and so on.

Parameters

Size(mm) Input current (A) Output Power(mW)
55*65*5 10 13mW min
55*75*10 5 38mW min
55*75*12 5 45mW min
48*68*15 5 50mW min
55*75*20 3 45mW min

Alloy 5A Soft Magnetic Powder Cores Transformer Iron 1j85

parameter:

SIZE Input Current Turns ratio Workload Voltage Output Power
55*65*5mm 10A 900T 1K 3.7V 13mW
55*75*10mm 5A 400T 400Ω 3.9V 38mW
54*78*12mm 5A 500T 1K 7V 49mW
67*47*15mm 5A 400T 750Ω 6V 48mW
55*75*20mm 3A 250T 500Ω 4.3V 36mW
95*75*20mm 3A 5A 250T 400Ω 300Ω 3.4V 4.5V 28mW 67mW
85*55*25mm 3A 5A 250T 600Ω 500Ω 5.4V 7.6V 48mW 115mW
88*67*10mm 5A 400T 500Ω 4.5V 40mW
72*47*27mm 3A 5A 250T 600Ω 500Ω 5.6V 7.7V 52mW 118mW
63*50*12mm 5A 400T 300Ω 2.9V 28mW
58*42*8mm 5A 400T 300Ω 2.7V 24mW
58*45*20mm 5A 400T 300Ω 5.3V 46mW
50*35*15mm 5A 400T 400Ω 3.7V 34mW
48*38*10mm 5A 900T 1K 4.7V 22mW
43*33*6mm 5A 900T 600Ω 2.6V 11mW
40*25*15mm 5A 400T 500Ω 5V 50mW
43*33*9mm 5A 900T 1K 4.5V 20mW
