1. Product Name

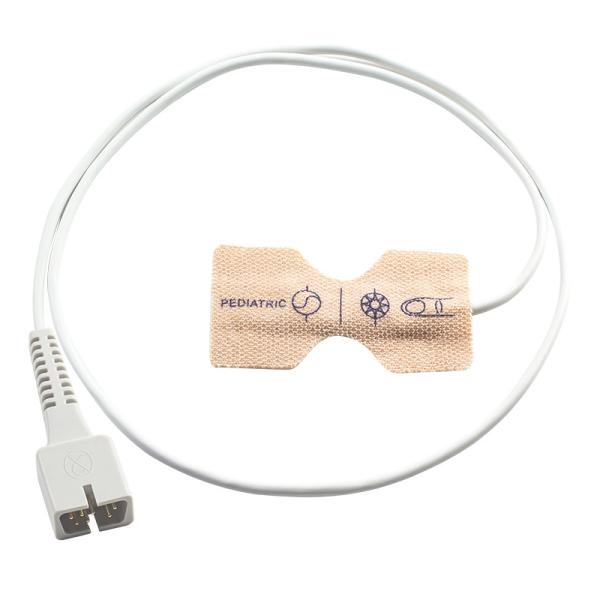

Contec Creative Digital Tech adult Neonate skin stretch Fabric Disposable SpO2 Sensor for CMS 6000 CMS 6500 CMS 6800

2. Warning and suggestive instructions Of Disposable Spo2 Sensor

1. Follow the cleaning and disinfection recommendations;
2. If the product has any from damage, stop using it immediately;
3. Operation in environments with strong ambient light may be affected (including infrared and ultraviolet light). If necessary, cover the probe area with surgical gauze;
4. Check every four hours and reattach the probe at other recommended locations;
5. Intravascular pigmentation can affect probe performance and can result in incorrect measurement of the monitor;
6. Excessive movement can affect probe performance of the probe and the monitoring instrument. To reduce the movement, the lead can be circled and fixed with tape;
7. Nail polishing or artificial nails can cause erroneous blood oxygen levels;
8. Refer to the monitor’s operating manual for additional warnings and warnings.

3. Technical Parameters

LED/PD: 660/905/940

Emission Wavelength: 660nm(±5nm)

Absorption Wavelength: 905nm(±5nm)

Spo2 Test Range: 70%-100%

Spo2 Accuracy: ±1%(90%-100%), ±3%(70%-89%)

Pulse Rate Test Range: 30-245bpm

Pulse Rate Accuracy: ±1 bpm(30-59bpm), ±2 bpm(60-149bmp),

±3 bpm(150-245bmp

4. OEM Part Number Cross References:

5. Compatibility:

6. Other Models :

7. Company Product :

Reusable SpO2 Sensor

Disposable SpO2 Sensor

SpO2 Adapter Cable

ECG Cable and Leadwires

EKG Cable and Leadwires

ECG Holter Cablel and Leadwires

ECG Trunck Cable 3/5/10 Lead

ECG Leadwires 3/5/10Lead

ECG Electrodes and ECG/EKG Accessories

Radiatranparent ECG Cable and Leadwires

Temperature Probe and Adapter Cable

IBP Cable and Adapter Cable and Disposable IBP Transducer

NIBP Cuff and NIBP Adapter Hose Tube

EEG Electrodes Leadwires

Spare parts and semi-sinished cables

8. Certificates
