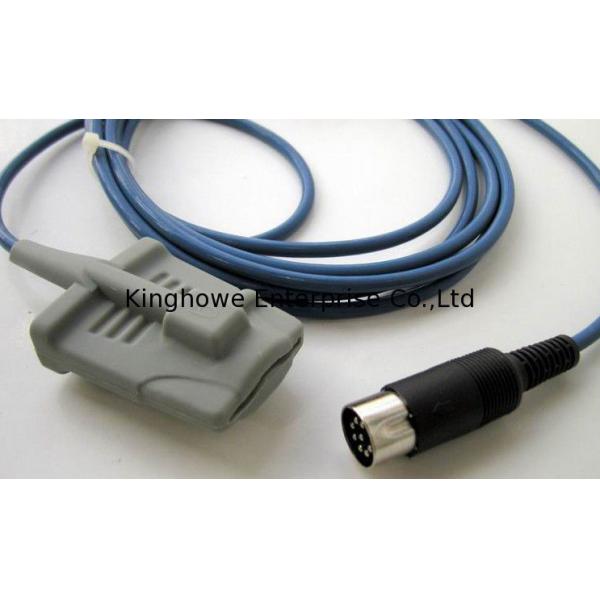

Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
Specifications
Brand Name :
Datascope
Model Number :
Datascope 006000002601
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
5-7 work days
Packaging Details :
10*7*3(CM)/pc
Material :
TUP/PVC - latex - free
function :
Dressings and Care For Material
style :
Clip, Softwrap
Color :
grey, white and blue
Connector :
DIN 8Pin
Warranty :
12 months
Description
Detailed Product Description
Suitable for Datascope:Accutorr 3/4 SAT,Accutorr
Plus,Passport (Database Sp02)Compatible for 0020-00-071-01

Datascope Passport XG spo2 sensor, 8pins, 3m


Description: Datascope Passport XG spo2 sensor, 3m
Connector Guid: 8 pin

http://www.spo2-ecg.com

OEM P/N Part No. Description(Cable & Connector)
0020-00-071-01 DCJ0001 Adult finger clip, 12ft blue cable & DIN 8-Pin
DCJ0002 Pediatric finger clip, 12ft blue cable & DIN 8-Pin
DCJ0003 Adult silicone soft tip, 12ft blue cable & DIN 8-Pin
DCJ0004 Pediatric silicone soft tip, 12ft blue cable & DIN 8-Pin
DCJ0005 Neonate silicone Wrap, 12ft blue cable & DIN 8-Pin
DCJ0006 Adult ear clip spo2 sensor ,12ft blue cable & DIN 8-Pin
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard

OEM P/N Part No. Description(Cable & Connector)
0020-00-071-01 DCJ0001A Adult finger clip, 12ft blue cable & DIN 8-Pin
DCJ0002A Pediatric finger clip, 12ft blue cable & DIN 8-Pin
DCJ0003A Adult silicone soft tip, 12ft blue cable & DIN 8-Pin
DCJ0004A Pediatric silicone soft tip, 12ft blue cable & DIN 8-Pin
DCJ0005A Neonate silicone Wrap, 12ft blue cable & DIN 8-Pin
DCJ0006A Adult ear clip spo2 sensor ,12ft blue cable & DIN 8-Pin
Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard


TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa

Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.

Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard Pediatric Datascope SPO2 Finger Sensor DIN 8 Pin 3m Cable CE Standard
