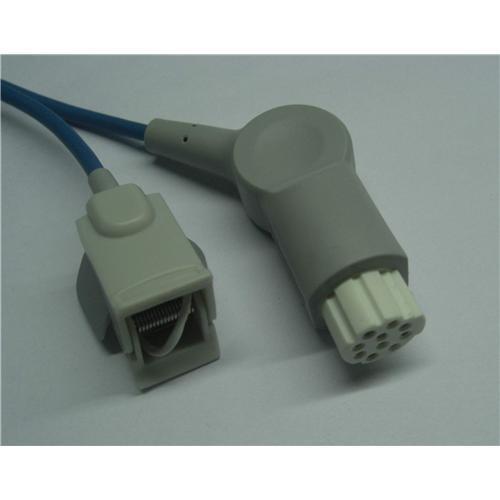

Patient Monitor Datex SPO2 Finger Sensor Direct Connect With 0% - 80% Humidity
Patient Monitor Datex SPO2 Finger Sensor Direct Connect With 0% - 80% Humidity
Patient Monitor Datex SPO2 Finger Sensor Direct Connect With 0% - 80% Humidity
Patient Monitor Datex SPO2 Finger Sensor Direct Connect With 0% - 80% Humidity
Patient Monitor Datex SPO2 Finger Sensor Direct Connect With 0% - 80% Humidity
Patient Monitor Datex SPO2 Finger Sensor Direct Connect With 0% - 80% Humidity
Patient Monitor Datex SPO2 Finger Sensor Direct Connect With 0% - 80% Humidity
Patient Monitor Datex SPO2 Finger Sensor Direct Connect With 0% - 80% Humidity
Specifications
Brand Name :
Datex
Model Number :
Datex _ OXY - F4 - N
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
5-7 work days
Packaging Details :
10*7*3(CM)/pc
Material :
TUP/PVC - latex - free
function :
Dressings and Care For Material
style :
Clip, Softwrap
Color :
grey, white and blue
Connector :
DPK1 10Pin
Warranty :
12 months
Description
Detailed Product Description

Suitable for

This compatible sensor connects directly to the bedside monitor without an extension cable. It works with the following patient monitors: Datex-Ohmeda®: Aespire, Aespire 15, AS/3, AS/3 Compact, CS/3, S/5, S/5 Compact, CH/S, CH/2S, CH-RS, CG/2S, Cardiocap I, Cardiocap II, Cardiocap 5, Capnomac Ultima, Light Monitor, M-NESTPR, Oscar II, OSP-200, Satellite Trans, Satellite, Satellite Plus II, Trans Plus, System 5, ULTS00, OXY-E4-N, ULTSIO, ULTSVI, ULTSVO. 9-foot cable. Compatible sensors are available for the following Datex-Ohmeda® OEM part numbers:

  • OXY-F4-N (Adult Clip)
  • TS-F4-N (Adult Clip)
  • SAF-F4 (Adult Clip)
  • OXY-W4-N (Neonate Silicon Wrap)
  • OXY-E4-N (Adult Ear Clip)
  • TS-E4-N (Adult Ear Clip)

http://www.spo2-ecg.com

OEM P/N Part No. Description(Cable & Connector)
OXY-F4-N DJ0001A Adult finger clip, 12ft blue cable & DPK1 10-Pin
DJ0002A Pediatric finger clip, 12ft blue cable & DPK1 10-Pin
DJ0003A Adult silicone soft tip, 12ft blue cable & DPK1 10-Pin
DJ0004A Pediatric silicone soft tip, 12ft blue cable & DPK1 10-Pin
OXY-W4-N DJ0005A Neonate silicone Wrap, 12ft blue cable & DPK1 10-Pin
TS-E4-N DJ0006A Adult ear clip spo2 sensor ,12ft blue cable & DPK1 10-Pin
Patient Monitor Datex SPO2 Finger Sensor Direct Connect With 0% - 80% Humidity Patient Monitor Datex SPO2 Finger Sensor Direct Connect With 0% - 80% Humidity

TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa

Products more details

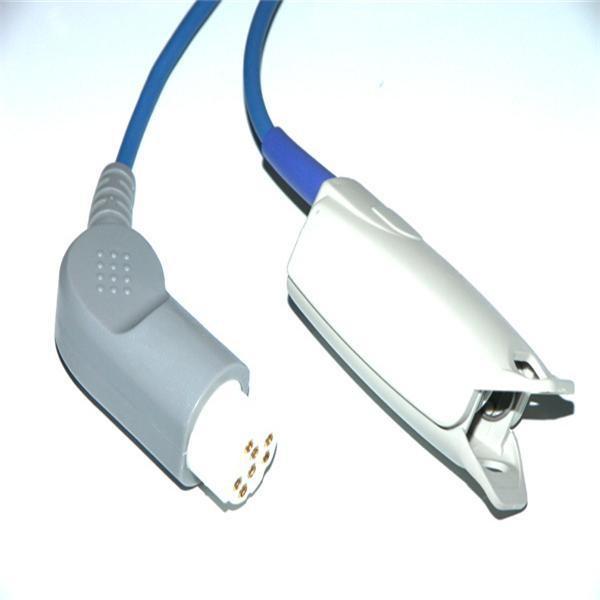

1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.
4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.

Patient Monitor Datex SPO2 Finger Sensor Direct Connect With 0% - 80% Humidity Patient Monitor Datex SPO2 Finger Sensor Direct Connect With 0% - 80% Humidity
