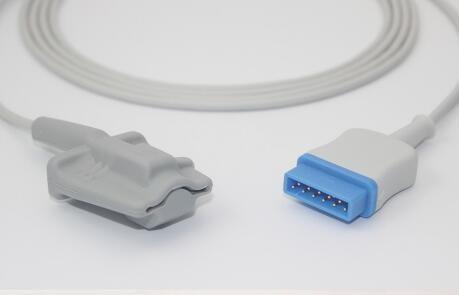

Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech
Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech
Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech
Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech
Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech
Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech
Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech
Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech
Specifications
Brand Name :
GE-Marquette
Model Number :
GE-Marquette: 407705 - 006
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
5-7 work days
Packaging Details :
10*7*3(CM)/pc
Material :
TUP/PVC - latex - free
function :
Dressings and Care For Material
style :
Clip, Softwrap
Color :
grey, white and blue
Connector :
GE Quadrate-11pin
Warranty :
12 months
Description

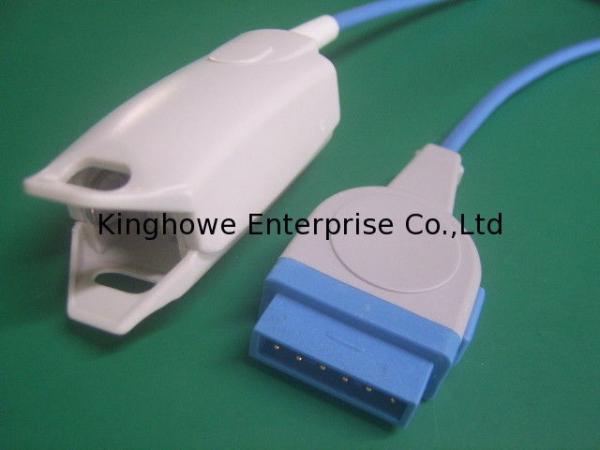

GE-Marquette Adult finger clip, Quadrate 11pin, Gray or bule cable, tech or o tech
Detailed Product Description


Suitable for Dash 3000/4000/5000 with o option Solar
8000/8000M, i/9500 with Tram Module 451M/851M
CardioLab®/Mac-Lab® with Tram Module 451M
Corometrics® 259
http://www.spo2-ecg.com

OEM P/N Part No. Description(Cable & Connector)
407705-006 GMJ0001A Adult finger clip, 12ft blue cable & Quadrate-11Pin
GMJ0002A Pediatric finger clip, 12ft blue cable & Quadrate-11Pin
GE-o tech GMJ0003A Adult silicone soft tip, 12ft blue cable & Quadrate-11Pin
GMJ0004A Pediatric silicone soft tip,12ft blue cable & Quadrate-11Pin
GMJ0005A Neonate silicone Wrap, 12ft blue cable & Quadrate-11Pin
GMJ0006A Adult ear clip spo2 sensor ,12ft blue cable & Quadrate-11Pin
Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech

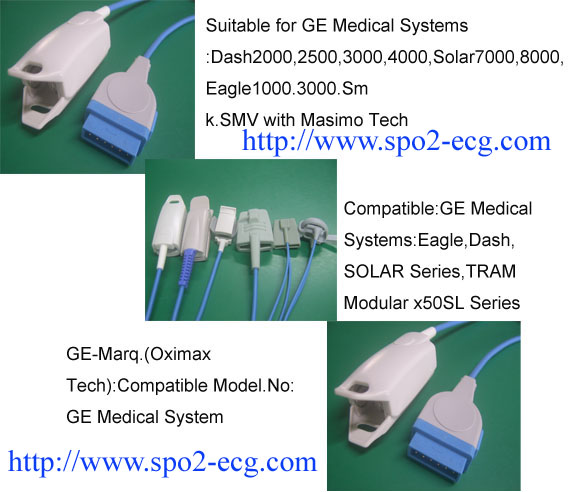

Compatible:Dash 2000/3000/4000 with
option,Dash 3000/4000/5000 with Ohmeda
option, Solar 8000/8000M, i/9500 with Tram
Module 451/451N/851/851N, CardioLab®/Mac-
Lab®with Tram Module 451/451N;Corometrics
® 120/2120 series;Eagle 1000/3000/4000
Responder 3000

OEM P/N Part No. Description(Cable & Connector)
GE- Tech GMJ0001B Adult finger clip, 12ft blue cable & Quadrate-11Pin
GMJ0002B Pediatric finger clip, 12ft blue cable & Quadrate-11Pin
GMJ0003B Adult silicone soft tip, 12ft blue cable & Quadrate-11Pin
GMJ0004B Pediatric silicone soft tip, 12ft blue cable & Quadrate-11Pin
GMJ0005B Neonate silicone Wrap,12ft blue cable & Quadrate-11Pin
GMJ0006B Adult ear clip spo2 sensor ,12ft blue cable & Quadrate-11Pin
Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech

Compatible Dash 3000/4000/5000
with option Solar
8000/8000M, i9500 with Tram module
451N5/851N5

OEM P/N Part No. Description(Cable & Connector)
Tech GOJ0001X Adult finger clip(),11pins
GOJ0002X Pediatric finger clip(),11pins
GOJ0003X Adult silicone soft tip(),11pins
GOJ0004X Pediatric silicone soft tip(),11pins
GOJ0005X Neonate silicone Wrap(),11pins
GOJ0006X Adult ear clip spo2 sensor(),11pins
Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech


TECHNICAL PARAMETERS:

LEDS Red 660nm normal
Infrared 880 / 905 / 940nm normal
Test Range Oxygen Saturation(%SpO2) 0 % to 100 %
Pulse Rate(bpm) 30 to 245
Accuracy SpO2 ± 2%(90% -1 00 %)
±3%(70%-89 %)
unspecified(0-69 %)
Pulse Rate ±1 bpm(30 - 59bpm)
±2 bpm(60 - 149bmp)
±3 bpm(150 - 245bmp)
Storage and Transport Environment - 10°C~ + 40°C
Operating Temperature + 5°C~ + 40°C
Operating/Storage/Transportation humidity 0% - 80%
Hyperbaric pressure 86kPa - 106 kPa

Products more details
1. Adult finger clip type spo2 sensor
Such blood oxygen probe, sensor acquires signal on adult fingers, the hard plastic shell for fixed sensors is larger and fits adult measurement, the instruments of different brand its probe shell may be slightly different, different shell shape cannot influence the performance of product.
2. Pediatric finger clip type spo2 sensor
Such blood oxygen probes, sensors in children's fingers acquisition signal, the hard plastic shell used in fixed sensor is smaller and measurements are suitable for children.
3. Adult Soft Tip type spo2 sensor./soft rubber/soft silicone tip
Such blood oxygen probe, sensor covered on adult finger to collect signals, the soft gel coat used in fixed sensors is bigger, suitable for adults. Different brands of instruments and its probe coat may be slightly different, different shape of coat cannot influence the product performance.

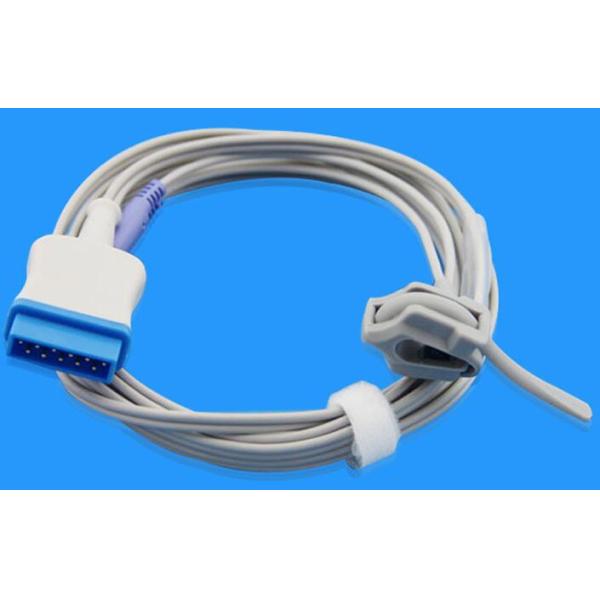

4. Neonatal wrap spo2 sensor or"Y" type wrap spo2 sensor.
The type of blood oxygen sensor, the sensor wrapped in neonatal acquisition signals on his foot, fixed sensors used in soft gel coat is bind package type, suitable for newborns.

Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech Medical Equipment Infant Spo2 Sensor , Paediatric Sats Probe o / Tech
