Condenser Wire Welding Machine , Bundy Tube Straightening and Cutting Machine
Condenser Wire Welding Machine , Bundy Tube Straightening and Cutting Machine
Condenser Wire Welding Machine , Bundy Tube Straightening and Cutting Machine
Condenser Wire Welding Machine , Bundy Tube Straightening and Cutting Machine
Specifications
Brand Name :
HWASHI
Model Number :
WL-SP-MF160K
Certification :
CE/CCC/ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
7-30 working days after received your payment
Packaging Details :
sea worthy wooden package
Product Name :
Condenser Wire Welding Machine , Bundy Tube Straightening and Cutting Machine
Application :
Bundy Tube Straightening and Cutting
Size :
4000x2400x2700mm
Weight :
3000 kg
Condition :
New
Warranty :
12 months
Standard :
CE/CCC/ISO
Service Life :
8-10 years
Welding gun moving speed :
0.5m/sec
Description

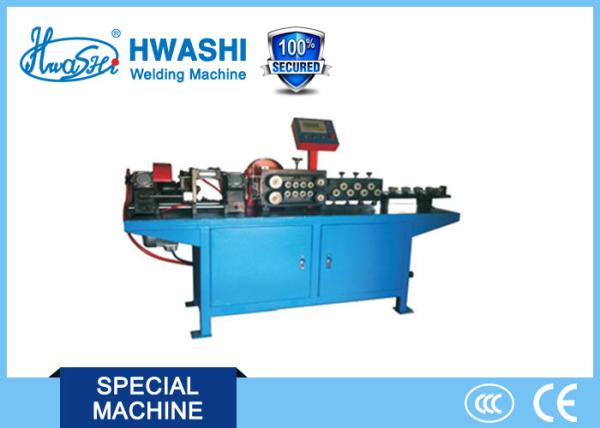

Condenser Wire Welding Machine , Bundy Tube Straightening and Cutting Machine

DESCRIPTION

We can supply the condenser production line machines:Wire Straightening and Cutting Machine,

Bundy Tube Straightening and Cutting Machine,Bundy Tube Bending Machine ,Condenser Welding Machine,Tube End Expanding Machine

  1. Motor driving for loading material. Frequency speed control; rotary encoder measuring; Equipped with functions like output counting, tube winding, feeding slip protection.
  2. PLC control. Human-machine interface operation to set parameters.
  3. Use no scraps cutting method for cutting the tube coil.
  4. The fixture, straightening wheels, feeding wheels are made of Cr12 steel which passed heat treatment and fine polishing.
  5. Spare parts: cutters- 5 sets; Tool: 1 set

TECHNICAL PARAMETERS

Input Voltage 380V, Three-phase 50Hz
Applicable Tube

Copper tube, aluminium tube, bundy tube
Working Air Pressure 0.6-0.8Mpa
Tube Coil Specification ￠4~￠20mm
Tube Wall Thickness 0.4~1.5mm
Making Length 50mm~99m
Output Power 1.12KW
Control System Full Automatic
Max Material Feeding Speed 60m/min
Precision

≤1000mm±0.5mm；≤3000mm±1mm；

≤5000mm±1.5mm
Machine Dimension 2000x500x1500(mm)
Weight 500kg

MATERIAL CONFIGURATION

No. Items Brand Country of Origin
1 Feeding Motor CPG Taiwan
2 Cutting Motor Tianyang China
3 Pneumatic Parts Tiangong China
4 PLC Delta Taiwan
5 Display Screen Delta Taiwan
6 Contactor, switch, button Schneider France
7 Frequency changer RCEN Taiwan

APPLICATION

Applicable to produce wire tube condenser, wire mesh,etc.

COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.

Condenser Wire Welding Machine , Bundy Tube Straightening and Cutting Machine

Condenser Wire Welding Machine , Bundy Tube Straightening and Cutting Machine
