Description

This machine uses MF DC welding method. The lower electrode is lower flat locating mould. According to the position of welding spots, the work piece will be moved on the CNC working table. There are two sets working tables with welding moulds for each side. When one of the working table enters into welding process, the other set is for the worker to prepare and load the material. Adopt medium frequency welding power source, the welding spot will be good at looking and working efficiency is high.

Features

1. Welding Structure: The coding stepping motor is transmitted by belt drive, coordinating with finish machining slide. The welding gun conducts constant motion. Good stability.
2. Main Body:The main body is made of good quality steel plate. Reasonable rigid structure. Ensure the main body has enough rigidity and stability to support the machine when conducting high speed welding.
3. Power Source: Both the imported pulse AC and DC from “Panasonic, OTC” or argon arc welding machine from famous brand as the welding power source. The minimum thickness of sheet is 0.2mm. Pressurized structure: Adopt pneumatic components of famous brands as the pressurized source of the machine. The upper part will press down while the lower part will rise up. To ensure the reasonable machine structure and to coordinate with fast locating structure to conduct welding locating.
4. Welding Control System: Adopt electricity and gas, coordinating with transmission mechanism to form the overall operation network. Use Japan Panasonic PLC as the central processing unit to transmit all kinds of data. Easy debugging and convenient operation.
5. Cooling System: Adopt parallel connection embedding cooling system. Forced water cooling. Provide guarantee for high frequency and long time working.

Applicable Area

Suitable for welding heating tube.

Technical Parameters

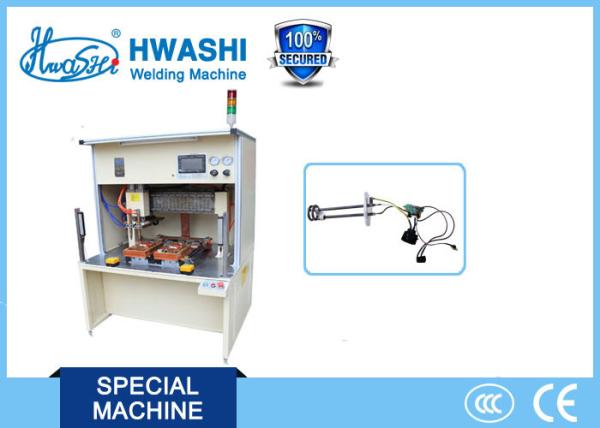

CNC Heating Tube Automatic Mobile and Welding Machine
