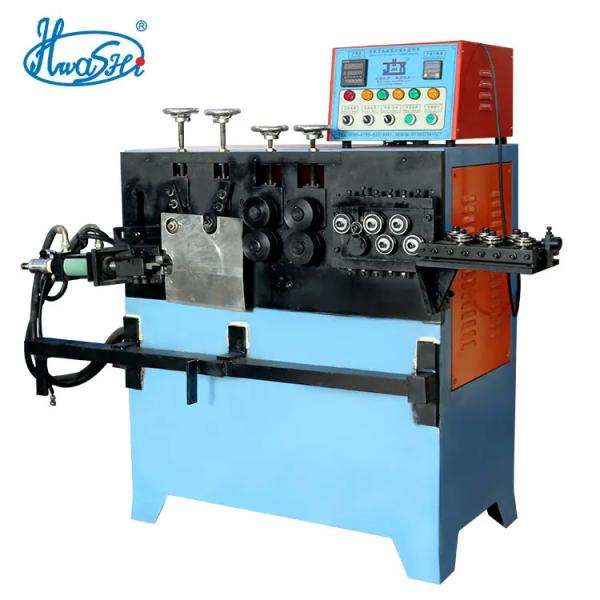

Wire Ring Automatic Coiling Butt Welding Machine Three Phase 380V 50Hz
Wire Ring Automatic Coiling Butt Welding Machine Three Phase 380V 50Hz
Wire Ring Automatic Coiling Butt Welding Machine Three Phase 380V 50Hz
Wire Ring Automatic Coiling Butt Welding Machine Three Phase 380V 50Hz
Specifications
Brand Name :
Hwashi
Model Number :
WL-AB-2
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
12000usd
Payment Terms :
L/C, T/T
Supply Ability :
300 pcs/month
Delivery Time :
5-10 working days
Packaging Details :
Wooden
Condition :
New
Power :
75K
Application :
Metal welding
Color :
Grey
Sample test :
Support
Quality report :
Support
Description

Automatic wires ring making and welding machineWire Ring Automatic Coiling Butt Welding Machine Three Phase 380V 50Hz

Wire Ring Automatic Coiling and Butt Welding Machine

Wire Ring Automatic Coiling and Butt Welding Machine includes the function of automatic wire feeding, automatic coiling, automatic welding and automatic unloading.

The steel wire will pass through the feeding plate, and then enter into the wire feeding wheel and wire pressing wheel. The machine will conduct ring coiling. The cutter will cut the wire into certain length, then the robot arm will grab the ring and put it into welding position to conduct butt welding. At last, the robot arm will take out the ring. The whole process will be finished.

Working Process:

  • Automatic feeding ( feeding the wire)
  • Automatic coiling ( hydraulic system, wire pressing wheel)
  • Automatic moving (cylinder mechanical arm)
  • Automatic welding (AC pulse power/MF DC power)
  • Automatic unloading (cylinder mechanical arm)
  • Sound-light alarm function: the machine will give alarm when the material is used up, the power is overpressure, the welding current is abnormal or when the temperature is too high.
  • Counting function: the machine will sum up the number of qualified product, defective product and welding times of electrode.
  • Monitoring function: the display screen will monitor the whole process of actions and the welding current of each welding process. It will give alarm when the monitoring function is abnormal.

Technical Parameters of Wire Ring Automatic Coiling and Butt Welding Machine

Model Small Ring Making Vertical Type 6mm Wire Special Use 10mm Wire Special Use
Wire Diameter Range 1.2-3mm 1.6-5mm 5-6.5mm 6.5-10mm
Ring Diameter Range 18-80mm 70-450mm 250-450mm 350-450mm
Air Pressure Range 4-6Mpa
Power Type AC Type
Motor Power 2.3KW 2.3KW 3.0KW 5.0KW
Dimension 1000x800x1130mm 1320x1000x1300mm 1450x1100x1300mm 1450x1300x1400mm
Weight 1000kg 1200kg 1400kg 1600kg
Main Power Voltage Three-phase 380V 50Hz
Welding Method Resistance Welding
Suitable Wire Material Cold Drawn Wire, Galvanized steel wire, iron wire, etc.
