CCC Portable C Gun Suspension Spot Welding Machine
CCC Portable C Gun Suspension Spot Welding Machine
Specifications
Brand Name :
HWASHI
Model Number :
WL-X-40C
Certification :
CCC
Place of Origin :
Guangdong China
MOQ :
1 set
Price :
US $2,000-5,000 / Set
Supply Ability :
50 Set/Sets per Month
Delivery Time :
7-30 days
Packaging Details :
wooden packing
Product Name :
Suspension Portable Type Spot Welding Machine for Household Appliance
Type :
Spot Welding Parts
Closure :
130-230mm
Pressurization :
1500kg
Fusing current :
50A
Energy Storage :
8000J
Arm Distance :
100-330mm
Cooling Water :
6 Lit/min
Secondary Voltage :
4.3V
The Electrode Head Welding Route :
15-25mm
Description

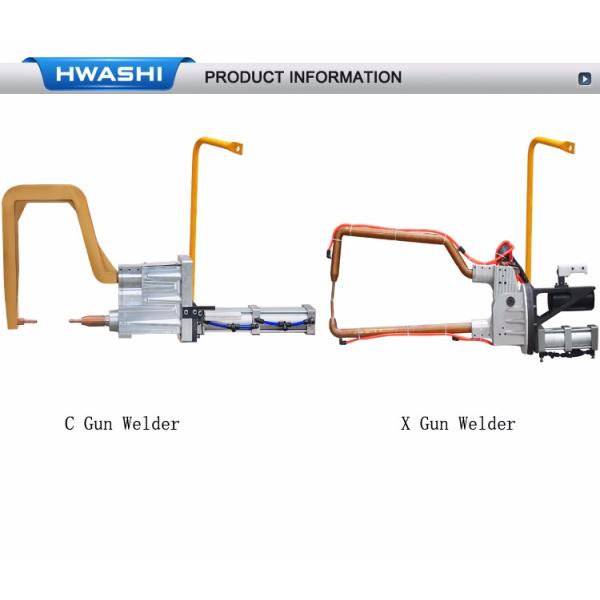

HWASHI C Type Gun Suspension Spot Welding machinery


Product Application

Suspension portable type spot welding machine consist of welding gun, welding machine transformer, welding machine controller, water cooling system, pneumatic pressure system, the suspension device, etc. Processing method adopts work piece fixed and moving welding gun.


Main Features

1. Compact structure. Convenient maintenance. Small in size and light in weight. Greatly reduce the labor intensity and largely saves the energy consumption.

2. Electrode arm is made of high quality chromium zirconium copper alloy, ensuring the stability of welding performance, service life of welding machine and strength of electrode arm.

3. Large diameter of gas path system, with imported pneumatic components. Makes the welding gun move fast and improve production efficiency.

4. When welding, heating time is short, heat concentration, no arc, no sparks, no welding slag, no fusion welding accumulation and no deformation. Beautiful appearance. Good quality.

5. Change thyristor conduction angle for heat regulation by welding machine controller. Make it easy to achieve mechanization and automation. So can match with the industrial robots for fully automated welding operation.

Application

Mainly used for welding of general fixed welding machine which cannot or inconvenient for welding low carbon steel, low alloy steel, stainless steel, coated steel, plates and bars material. Widely used in automobile, commercial sheet metal, security doors, cabinets, household appliances, and other industries.


Applicable Area
Production industries like automobile, metal plate, household appliances, etc. and repair industry like vehicle maintenance and repair; Match up with manipulator to achieve the needs of automatic production line.


Technical Parameters
Suspension Portable Type Spot Welding Machine for Household Appliance

ITEM / MODEL WL-25C WL-25C WL-35C WL-35C WL-40C WL-25C
Load Occupation Rate 50%(KVA) 25 25 35 35 40 40
Secondary Voltage (V) 2.75 2.75 4.3 4.3 4.25 4.52
20m of Cable Sectional Area 8 8 10 10 12 12
Fusion Current (A) 35 35 50 50 60 60
Arm Space (mm) 100-158 120- 110-330 120- 110-605 120-
Minimum Arm Length (mm) 160 160 160 160 160 160
Electrode Tip Welding Stroke (mm) 15-25 15-25 15-25 15-20 15-35 15-20
Maximum Cylinder Stroke (mm) 40 40 70 70 50 70
Maximum Arm Length (mm) 6.5 6.5 6.5 6.5 6.5 6.5


CCC Portable C Gun Suspension Spot Welding Machine
