Blood, Milk Powder, Starch, Herbal, Herb Extract, Milk, Stevia, Spirulina, Protein, Coffee, Egg Use Spray Dryer
PRINCIPLE OF WORK

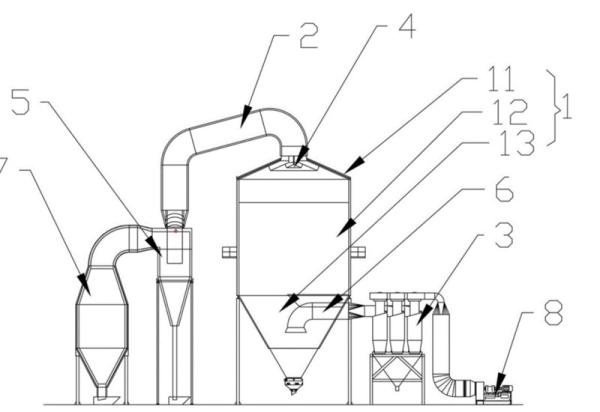

Air is turned into hot air through air filter and heater and enter sin to hot air distributor at the top of dry chamber and then enters into dry chamber spirally and evenly, At the same time liquid of raw material is sent to centrifugal atomizer at the top of dry chamber pumped by pump through filter, In which liquid of raw material atomizes ting droplets. Air and liquid of raw material flows and contacts each other fully. The moisture vaporizes rapidly. Liquid of raw material is dried into finished product in a short time. Tile finished product is discharged through cyclone separator at the bottom of drier. The wasted air is exhausted through fan.
FEATURES OF EQUIPMENT
Its dry speed is very quick. In general, it needs 5~15 seconds. It has feature of momentary dry.
Because of raw material can be dried momentarily. Especially, it is suitable for drying thermal sensitive raw materials. It can maintain color, smell and smell of raw material.
Its operation is stable and simple. Its regulation and control is very convenient. It is easy to realize continuous operation. The distribution, fluidity and solubility of product are good.
| No | LPG-5 | LPG-25 | LPG-50 | LPG-150 | |||
| Max evaporated amount moisture | 5 | 25 | 50 | 150 | |||
| Spray type | High speed Centrifugal atomizer | High speed Centrifugal atomizer | High speed Centrifugal atomizer | High speed Centrifugal atomizer | |||
| Revolution of Atomizer | 25000 | 18000 | 18000 | 16000 | |||
| Diameter of atomizer | 50 | 120 | | | |||
| Diameter of tower | 0.9 | 1.75 | 2.3 | 2.7 | |||
| Power of electric heating KW | 9 | 31.5 | steam +18KW | Steam +36 | |||
| Heating Source KW | steam /electric / oil fuel /natural gas /hot air / | 6750ml | | | |||
| Dimension (L* W*H) | 1600*9100*17500 | 4000*2700*4500 | 4500*2800*5500 | 5200*3500*6700 | |||
