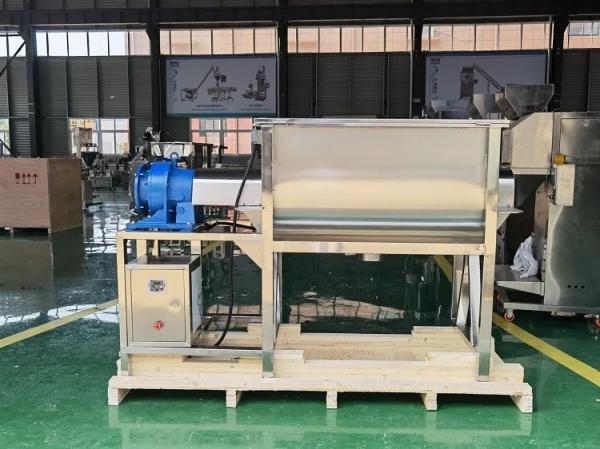

WLDH Horizontal Ribbon Blender Mixer 250L-10000L Double Helix Ribbon Blender
WLDH Horizontal Ribbon Blender Mixer 250L-10000L Double Helix Ribbon Blender
WLDH Horizontal Ribbon Blender Mixer 250L-10000L Double Helix Ribbon Blender
WLDH Horizontal Ribbon Blender Mixer 250L-10000L Double Helix Ribbon Blender
WLDH Horizontal Ribbon Blender Mixer 250L-10000L Double Helix Ribbon Blender
WLDH Horizontal Ribbon Blender Mixer 250L-10000L Double Helix Ribbon Blender
WLDH Horizontal Ribbon Blender Mixer 250L-10000L Double Helix Ribbon Blender
WLDH Horizontal Ribbon Blender Mixer 250L-10000L Double Helix Ribbon Blender
WLDH Horizontal Ribbon Blender Mixer 250L-10000L Double Helix Ribbon Blender
WLDH Horizontal Ribbon Blender Mixer 250L-10000L Double Helix Ribbon Blender
WLDH Horizontal Ribbon Blender Mixer 250L-10000L Double Helix Ribbon Blender
WLDH Horizontal Ribbon Blender Mixer 250L-10000L Double Helix Ribbon Blender
Specifications
Brand Name :
Melton
Model Number :
WLDH，Customized
Certification :
CE/ISO
Place of Origin :
Changzhou，China
MOQ :
1 Piece (Min. Order)
Price :
US $1,000-10,000 / Piece |
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets / Year
Delivery Time :
8-10 work days
Packaging Details :
Backage By Three Plywood,Suitable And Convenient For Shipment
Range of Spindle Speed(r.p.m) :
30 - 40 r.p.m
Application :
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules
Capacity :
250L-10000L
Voltage :
380V/220V/450V
Power (kW) :
Customized
Warranty :
1 year
Description

WLDH Horizontal Ribbon Blender Mixer Powder Mixing Machine / Stainless Steel Double Helical Mixer

The Ribbon Mixer Series consists of five high performance trough format mixing machines for combining powders or pastes into a homogenous end product. They range in size from 100 litres capacity to 5000 litres. These blending machines use a thin mixing blade and carefully controlled motion to ensure that the materials are thoroughly combined, without dead spots. With stainless steel contact parts that are easy to clean, and mixing blades that are fully sealed at each end to avoid leakage, they are suitable for both dry powders and semi-liquid materials across a range of applications including the food and chemical industries.
Ribbon blenders are convective mixers. The mixture movement is forced by the rotation of the ribbon which is circulating the product in 2 directions: the ribbon is actually made in 2 parts, 1 external ribbon circulates the product in 1 direction while another ribbon located inside the 1st one moves the product in the other direction (it can be possible to have even more complex profiles to attempt optimizing the mixing efficiency and thus the mixing time). By mixing enough time, those 2 axial movement, coupled with some radial movement (blades "cutting" the material when rotating), will allow to reach the required degree of homogeneity. The twist of the helix must be studied by the manufacturer so that the direction in which the outer ribbons is pushing is towards the outlet valve of the mixer, if it is not the case, good discharging rate of the mixer cannot be achieved.

Introduction

Main Features

1) Horizontal tank body, need small space but more capacity.

2) Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides to the center to make the material effective mixing.
3) Gear box drive the auger shaft , low noise and low malfunction, long using life.
4) U-Shape tank bottom, better for material discharge and cleaning.
5) Pneumatic cylinder to control the discharge exit.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer
6) Air cylinder help the top cover easy open. dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating
7) Heating,cooling function can be realized.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating
8) Customized ribbon blender available. dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating
9) PLC controlled,equipped with mettler toledo weigh modular
Specifications Configuration
1) Major sections: barrel, ribbon agitators, feeding parts, discharging part and driven unit
2) Sizes: available from 200L to 10000L.Ribbon auger mixer detergent powder horizontal ribbon mixer
3) Material: Carbon Steel, Stainless Steel 201,304,316L.
4) Discharge: Flap valve, butterfly valve, slide gate valve, ball valve, manually or pneumatically.
5) Speed:Constant speed rotation,also controls such as variable frequency drives, motor starters and operator stations are available.
6) Temperature: mixer can be equipped with heating or cooling jacket if temperature control is required,
7) Spray :nozzles for liquid introduction.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer
8) Open cover: pneumatic, manual.Horizontal ribbon blender#mixer washing powder mixing machine.

Discharging mode

Big open structure, using pneumatic materials has the advantages of fastdischarging, no residual; Adopt high fineness of materials or semiliquid materialusing manual buterly valve or pneumatic buterly valve. Configurable heating orcoling jacket, Heating mode has electric heating and heat conduction oil heatingin two ways. Cooling process can be directly to infuse water jacket and clip hotswap area is large, the cooling speed. Small type mixer adopts reducer directmode, simple structure, high operating rlialily. maintenance is convenient. Largenumber mixer adopts pulley drive the cycloid speed reducer drive, belt transmis-sion of elastic connection has the advantage of the overload protection whendriving part.
Main Application

The product has a wide range of applications, and can mix and stir powder and powder, powder and liquid, especially paste, viscous or larger specific gravity materials (such as putty, real stone paint, metal powder and other products) .

Product Paramenters
Model
Total Volume(L)
Load Coefficient
Power(KW)
Dimensions(mm)
Weight (kg)
WLDH-100
100
0.4-0.8
3
1190x740x770
330
WLDH-300
300
0.4-0.8
4
2030x630x980
720
WLDH-500
500
0.4-0.8
7.5
2320x730x1130
980
WLDH-1000
1000
0.4-0.8
11
2800x920x1320
1700
WLDH-1500
1500
0.4-0.8
11
3180x1020x1550
1800
WLDH-2000
2000
0.4-0.8
15
3310x1120x1640
2100
WLDH-3000
3000
0.4-0.8
18.5
3750x12290x1820
3000
WLDH-4000
4000
0.4-0.8
22
4220x1400x1990
3980
WLDH-5000
5000
0.4-0.8
22
4220x1500x2100
4620

We have various types of mixers, please tell us your needs, and we will recommend a suitable machine for you!
Product Details
Sample Picture

Shipping

FAQ

1. How is the quality of your products?

Our products are prohibited according to national and international standard, and we take a test on every machine before delivery. dry powder ribbon mixer horizontal ribbon mixer ribbon mixer,dry powder ribbon mixer horizontal ribbon mixer
2. Guarantee
If the quality is not consistent with the description as we said or promised before you place order, we promise you 100% refund.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer,dry powder ribbon mixer horizontal ribbon mixer
3.How about price?
We have our own factory and can give you the lowest price,besides, we have a policy that "for saving time and absolutelyhonest business attitude, we quote as low as possible, discount can be given according to quantity.
4. Can I customize?
Most of our machine can be customized, so you can tell your kinds of requirement before ordering. We will try to meet yours requirement.
