Single Layer 1.6M Width Conveyor Mesh Belt Dryer For Vegetable
Single Layer 1.6M Width Conveyor Mesh Belt Dryer For Vegetable
Single Layer 1.6M Width Conveyor Mesh Belt Dryer For Vegetable
Single Layer 1.6M Width Conveyor Mesh Belt Dryer For Vegetable
Specifications
Brand Name :
Guojin
Model Number :
SPCD-1.6-8
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
10 sets per month
Delivery Time :
20-30days
Packaging Details :
Standard export Carton
Item Name :
Vegetable Single Layer Tunnel Conveyor Mesh Belt Dryer
Model Type :
SPCD-1.6-8
Application :
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Unit No. :
5
Belt width :
1.6M
Length of drying section :
8M
Thickness of maaterial covered :
10-80 mm
Temperature :
60-150Deg. C
Steam pressure :
0.2-0.8 Mpa
Steam consumption :
150-375 kg/h
Drying time :
0.2-1.2h
Blower power :
9kw
Equipment power :
9.55kw
Heat source :
Electricity,Steam
Description

Vegetable Single Layer Tunnel Conveyor Mesh Belt Dryer

1, Single layer Mesh Belt Dryer / Vegetable Mesh Belt Dryer / Vegetable Dryer

2, Good mobility and dissolving

3, Easy operation and control

Product Descriptions

SPCD Single Pass/Single Plate Conveyor Dryer is continuous dryer for large production. It is used for drying sheet materials, bar masterials granules materials that have good air permeability. As to dehydrated vegetable Chineseherb pieces which have high moisture and need low drying temperature, SPCD belt dryer is specially suitable.

Product Application

The vegetable dryer is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry( fruit and vegetable or nut ), pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.

Technical Parameters

Type SPCD-1.2-8 SPCD-1.2-10 SPCD-1.6-8 SPCD-1.6-10 SPCD-2-8 SPCD-2-10
Unit number 4 5 5 5 4 5
Belt width(m) 1.2 1.2 1.6 1.6 2 2
Length of drying section(m) 8 10 8 10 8 10
Thickness of the mataerial to be covered(mm) 10~80
Temperature(oC) 60~150
Steam pressure(Mpa) 0.2~0.8
Steam consumption(kg/h) 120-300 150-375 150-375 170-470 180-500 225-600
Drying time(h) 0.2-1.2 0.25-1.5 0.2-1.2 0.25-1.5 0.2-1.2 0.25-1.5
Drying efficiency(kg H2O/h) 60-160 80-220 75-220 95-250 100-260 120-300
Total power of the blower(kw) 6.6 8.8 9 12 12 16
Total power of the equipment(kw) 7.15 9.55 9.55 12.75 12.55 16.75

Product Feature

1, Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
2, The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.
3, Most air is recycled to realize saving energy
4, The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.
5, Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.

Single Layer 1.6M Width Conveyor Mesh Belt Dryer For Vegetable

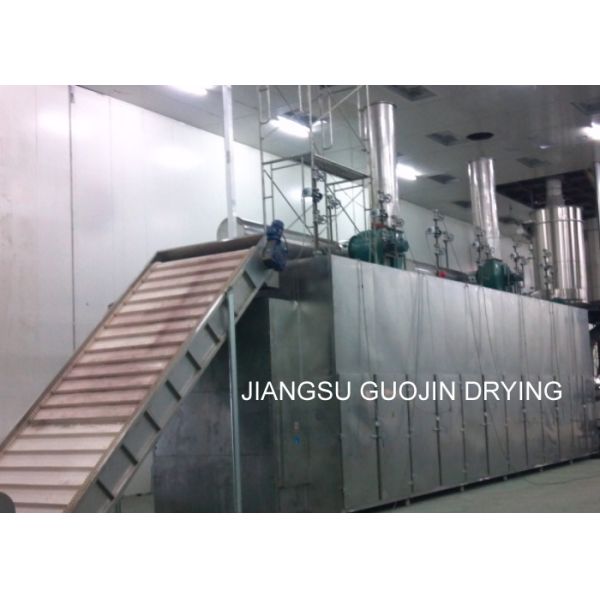

Product Show

Single Layer 1.6M Width Conveyor Mesh Belt Dryer For Vegetable
