Wet Material Swing Vibrating Pellet Granulator 200kg/h
Wet Material Swing Vibrating Pellet Granulator 200kg/h
Wet Material Swing Vibrating Pellet Granulator 200kg/h
Wet Material Swing Vibrating Pellet Granulator 200kg/h
Specifications
Brand Name :
Guojin
Model Number :
ORM-B
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
10 sets per month
Delivery Time :
20-30days
Packaging Details :
Standard export Carton
Item Name :
Wet Material Swing Vibrate Pellet Granulator
Application :
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Model type :
Model B
Productive capacity :
100-200 kg/h
Motor power :
3 kw
Roller revolution :
65 r/min
Swing angle :
360
Roller diameter :
160 mm
Weight :
300 kg
Overal dimension :
100x680x12500 mm
Description

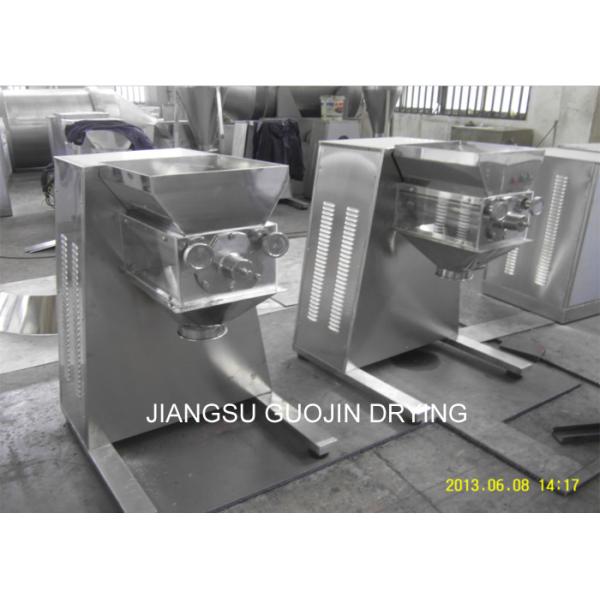

Wet Material Swing Vibrate Pellet Granulator

The material is fed from the top hopper. The oscillating roller crushes the dry lump and breaks them down into small grain or powder, which is passed through sieve hole. It also can extrude wet material into regular size granule via sieve hole by oscillating roller.

It can be widely used in Pharmaceutical Industry, Foodstuff Industry, Chemical Industry, etc.

Product Features
1. This Oscillating granulating machine makes use of the rolling motion of rotating barrel, granulates the wet powder materials into granule by sieve, it also can be used to crush agglomerate materials into small granules directly.
2. In chemical medicine field, it can be used for granulating the mixed powder into granule, and compressed into tablet after being dried. It also can be used for granulating the coagulated material that is formed during storage or during chemical processing, In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate
such as porcelain and plastic mixtures into forming granules.
3. It is not suitable for solid, fluid medium, paste or pulverizing.
4. Its mesh number of sieve should be prepared by users, according to the size of granule.
Technical Parameters

Product Application

This machine is mainly suitable for pharmaceutical industry, chemical industry and foodstuff industry to make granule with different specifications. After it is dried through backing, then press it to form all kinds of shaped products. It can also be used for dry block raw material that is crushed and coagulated. All parts in this machine are made of stainless steel. Its appearance is beauty. Its cleaning is very convenient. Its operation is very simple. Its energy consumption is very low.

Technical Parameters

Model Model B Model C(heavy type) ORM160-F-120(Non-standard)
Productive capacity(kg/h) 100-200 150-300 600-1000
Motor power(kw) 3 4 7.5
Roller revolution(r/min) 65 65 10-44
Swing angle 360 360 360
Roller diameter(mm) 160 160 160
Overall dimensions(mm) 100*680*1250 1260*750*1250 3100*930*1250
Weight(kg) 300 450 2200
