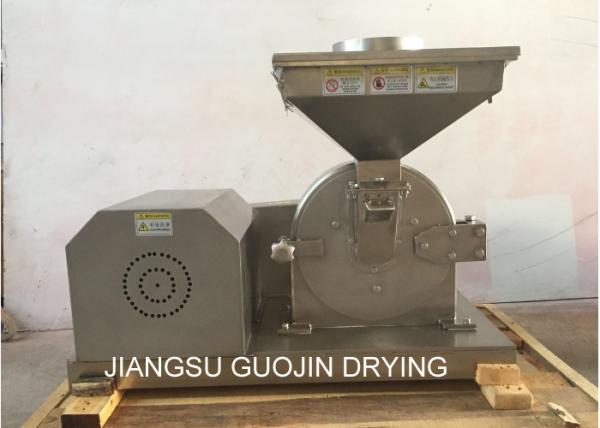

3800r/min 120 Mesh Universal Grinder For resin powder
3800r/min 120 Mesh Universal Grinder For resin powder
3800r/min 120 Mesh Universal Grinder For resin powder
3800r/min 120 Mesh Universal Grinder For resin powder
Specifications
Brand Name :
Guojin
Model Number :
UIM-60B
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
10 sets per month
Delivery Time :
20-30days
Packaging Details :
Standard export Carton
Item Name :
60B 20-120mesh Crushing granularity Universal Grinder
Application :
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Model type :
UIM-60B
Production capacity :
300-1500kg/h
Spindle rotation speed :
3800r/min
Feeding granularity :
15mm
Crushing granularity :
20-120mesh
Crushing motor :
22kw
Dust removal motor :
2.2kw
Dimension of single machine :
850x800x1820mm
Dimension with dust removal :
1600x900x2300mm
Description

60B 20-120mesh Crushing granularity Universal Grinder

This machine consist of universal pulverizer , dust collecting cabinet and dedusting collector, preventing dust flying during powder grinding, suits for pulverizing sugar, herbs, chemical products, food materials and spices etc into the powder of 20-150mesh.

This machine is widely used for weak current substances and high temperature resistant substances such as chemical industry, medicine(traditional Chinese medicine), food, spices, resin powder, coating powder, etc.

Product Features

This machine adopts a wind wheel type high-speed rotating knife. The fixed knife performs impact, shearing and grinding. Not only is the grinding effect good, but also a strong airflow is generated in the cavity at the grinding time. The heat of the grinding chamber and the finished product flow out of the screen together. The grinding fineness can be determined by changing the screen.

Technical Parameters

Model 20B 30B 40B 50B 60B 80B
Production capacity(kg/h) 60-150 100-300 160-800 200-1000 300-1500 500-2000
Spindle rotation speed(r/min) 5300 4200 3800 3200 2800 2200
Feeding granularity(mm) 10 10 10 15 15 15
Crushing granularity(目) 20-150 20-120 20-120 20-120 20-120 20-120
Crushing motor(kw) 4 5.5 7.5 18 22 30
Dust removal motor(kw) 0.55 0.55 1.1 1.5 2.2 3
Dimensions(LxWxH) With dust removal 1100x600x1650 1300x700x1850 1350x700x1920 1400x800x2700 1600x900x2300 1800x1200x2500
Single machine 550x500x1200 600x550x1320 650x600x1550 700x650x1680 850x800x1820 950x900x1960

Product Working Principle

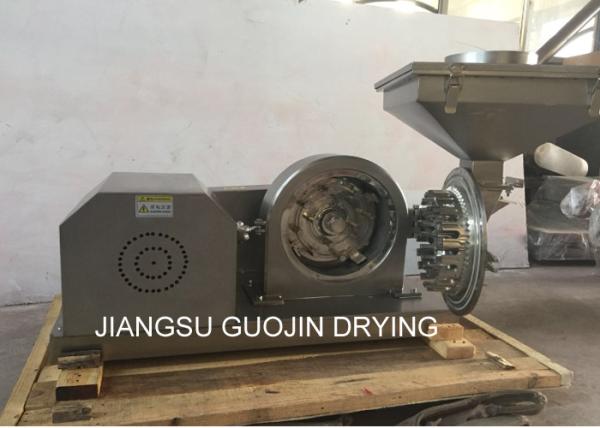

By means of relative motion between movable and fixed discs,material is crushed through impact and friction of the teeth
and impact among the material.The machine is designed according to GMP standard and made of stainless steel 304.The advantages of it are simple structure,high production capacity and convenient cleaning.Currently it is the pretty ideal one among coarse crushing machines.

Product Structure:

3800r/min 120 Mesh Universal Grinder For resin powder

Product Show

3800r/min 120 Mesh Universal Grinder For resin powder

Contact Me
3800r/min 120 Mesh Universal Grinder For resin powder

electrical, steam, natural gas or other
