100mm Disc Diameter Cyclone Filtermat Spray Dryer 18000rpm
100mm Disc Diameter Cyclone Filtermat Spray Dryer 18000rpm
100mm Disc Diameter Cyclone Filtermat Spray Dryer 18000rpm
100mm Disc Diameter Cyclone Filtermat Spray Dryer 18000rpm
Specifications
Brand Name :
Guojin
Model Number :
RWSD
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
10 sets per month
Delivery Time :
20-30days
Packaging Details :
Standard export Carton
Item Name :
100mm Disc Diameter Cyclone Filtermat Spray Dryer
Model Type :
Spray Dryer
Application :
Plastics Industry
Spray disc diameter :
100mm
Warranty :
1 year
Material :
Stainless steel
Rotary speed :
18000
Control :
PLC touch screen
Heating source :
Steam+electricity Gas Oil
Outlet air temperature :
~80-90°C
Description

100mm Disc Diameter Cyclone Filtermat Spray Dryer

1 High speed centrifugal atomizer spray dryer / food spray dryer / industrial spary dryer
2 Liquid or slurry drying processor
3 Easy operation and control
4 Stainless steel / Carbon Steel

RWSD food rotary spray dryer machine is widely applied in liquid process shaping and drying industry. It is a special drying equipment that is suitable for producing solid powder or practical products by drying liquid material like emulsion, suspension liquid, mash, liquor and so on. And it is a strong performer in drying polymer and resin; dye and pigment; ceramics, glass; rust remover; vermifuge; carbohydrate, dairy products; detergent and surfactant; fertilizer, organic compounds and inorganic compounds.

Product Principle Of Work

After filtering and heating, the air enters air distributor at the top of the dryer. The hot air enters the drying chamber in the spiral form uniformly. By passing through the high-speed centrifugal atomizer at the top of the tower, the material liquid will be rotated and sprayed into extremely fine mist liquid beads, through the very short time of contacting with hot air, products will be discharged continuously from the bottom of the drying tower and from the cyclone separator. The waste gas will be discharged by blower.

Product Application

High Speed Centrifugal Spray Dryer is widely used in foodstuff, pharmaceutical and chemical industry, such as egg powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, coconut, milk, gelatin, gum and acacia etc.

Product Features

1. Drying speed is fast. Material is atomized and superficial area is increased greatly. During contacting with hot air, 95%~89% moisture will be evaporated instantly. Drying time just need seconds, so it is suitable for drying thermal sensitive materials.

2. The product has good degree of homogeneity, fluidity and solubility.

3. Production process is simple and operation is easy to control. Liquid can be dried to powder product one time, and after dried crushing and sieving is not needed, so the production steps are reduced. The particle size, density, moisture content of product can be adjusted and controlled by changing operation condition.

4. Adopts mechanical type centrifugal atomizer, driven by gear, rotary speed is stable and can ensure the uniform distribution of forgdrops.

5. The direction and angle of hot air distributor adopt adjustable structure, it can ensure the forgdrop contact with hot air fully.

6. Elbow is made of sanitation degree steel pipe, it can avoid the material blocked in the elbow.

Technical Parameter

Model 5 25 50 100 150 200-10000
Inlet temperature 140-350 automatic control
Outlet temperature ~80-90
Max. moisture evaporation 5 25 50 100 150 200-10000
Centrifugal spray hear drive Compressed air drive Machanical drive
Speed 25000 18000 18000 18000 15000 8000-15000
Spray disc diameter 50 100 120 140 150 180-340
Heat source electric electricity+steam Electricity+steam,fuel,gas Resolved by the user
Max. power of electric heating 9 36 63 81 99
Outline dimension 1.8x0.93x2.2 3x2.7x4.26 3.7x3.2x5.1 4.6x4.2x6 5.5x4.5x7 Determined according to specific circumstances
Dry powder recovery >95 >95 >95 >95 >95 >95

What is the different characteristic of centrifugal spray dryer from others ?

1. The tower body has cold wind jacket.

2. The tower body is provided with an automatic vibrating device.

3. The tower body, the pipeline is equipped with the quick opening cleaning hole and the sewage hole.

4. Automatic control of constant temperature feeding tank.

5. Manual high-pressure washing tower random accessories.

6. The part in contact with the material is made of stainless steel material (or all stainless steel manufacturing.

7. The material collection adopts the two-stage cyclone dust collector, or the first stage cyclone dust collector and the wet type dust collector.

8. Automatic control of inlet air temperature and continuous device.

9. Equipped with air sweep device.

Special Notice

In order to quota you the right rotary atomizer spray dryer price / rotary atomizer spray dryer / lab rotary atomizer type spray dryer price, we would like to get the following information include in your inquiry:

  • -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
  • -What is the capacity per hour you need (kg/h)?
  • -What is the initial moisture and final moisture of finished products you require to get?
  • -What about the maximum heat temperature of raw material?
  • -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
  • -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
  • -Provide us your country’s electricity information, such as phases, voltage, HZ?
  • -How about dust collect requirements?
  • -Other special requirements?

Use Contrast​

100mm Disc Diameter Cyclone Filtermat Spray Dryer 18000rpm

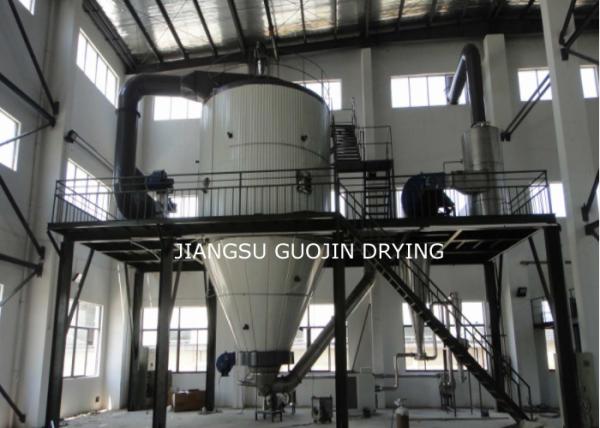

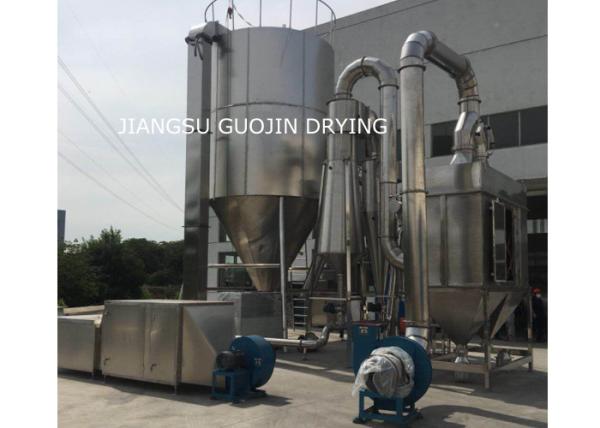

Product Show

100mm Disc Diameter Cyclone Filtermat Spray Dryer 18000rpm
