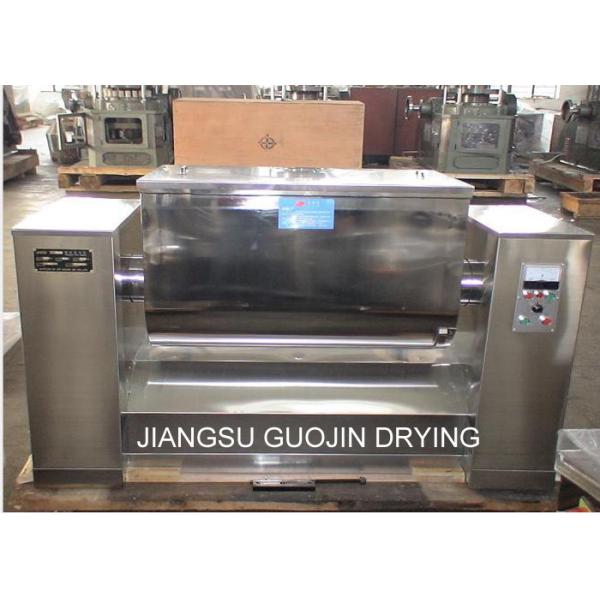

GTM Series Groove Type Mixer
GTM Series Groove Type Mixer
GTM Series Groove Type Mixer
GTM Series Groove Type Mixer
Specifications
Brand Name :
Guojin
Model Number :
GTM-150
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
10 sets per month
Delivery Time :
20-30days
Packaging Details :
Standard export Carton
Item Name :
GTM Series Groove Type Mixer
Model type :
GTM-150
Application :
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Total volume :
0.15M3
Feed amount :
30kg/batch
Stirring speed :
24rpm
Mixing power :
3kw
Discharge power :
0.55kw
Overall dimension :
1480x1190x600mm
Heating source :
electrical
Description

GTM Series Groove Type Mixer

GTM series guttered mixer is widely used for mixing powder or wet materials, and can make the materials in different proportions mixed uniform.

The parts of the machine which contact with materials are made of stainless steel. The gap between blades and the inner wall of the cylinder is very small, so there's no "dead corner" in mixing. Seal devices are fixed on both ends of the stirring shaft to prevent the materials from rushing out. Feed hopper is controlled though buttons. So it's very convenient to feed or discharge materials. This type of mixer is widely used in pharmaceutical, chemical, foodstuff industry and so on.​

Technical Parameters

Type Total volume(m3) Feed amount(kg/batch) Overall dimension(mm) Stirring speed(rpm) Power formxing(kw) Power for discharge(kw)
150 0.15 30 1480*1190*600 24 3 0.55
200 0.2 40 1480*1200*600 24 4 0.55
300 0.3 60 1820*1240*680 24 4 1.5
500 0.5 120 2000*1240*720 20 5.5 2.2
750 0.75 150 2300*1260*800 19 7.5 2.2
1000 1.0 270 2500*1300*860 19 7.5 3
1500 1.5 400 2600*1400*940 14 11 3
2000 2 550 3000*1500*1160 12 11 4
2500 2.5 630 3500*1620*1250 12 15 5.5
3000 3 750 3800*1780*1500 10 18.5 5.5

Product Application
The mixer is used for mixing the dry material grains inmedical, chemical, food, metallurgical and other industries.
GTM Series Groove Type Mixer

Product Show

GTM Series Groove Type Mixer
Contact Me
GTM Series Groove Type Mixer

electrical, steam, natural gas or other
