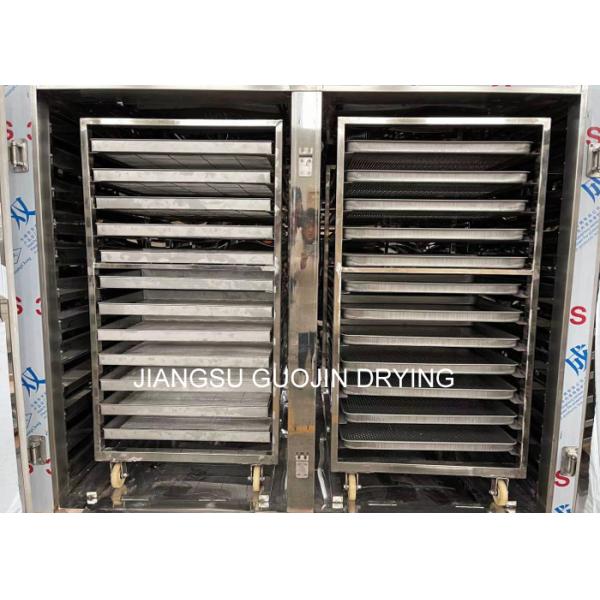

144 Trays CT-C-IV Food Circulating Tray Dryer Machine
144 Trays CT-C-IV Food Circulating Tray Dryer Machine
144 Trays CT-C-IV Food Circulating Tray Dryer Machine
144 Trays CT-C-IV Food Circulating Tray Dryer Machine
Specifications
Brand Name :
Guojin
Model Number :
CT-C-IV
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
10 sets per month
Delivery Time :
20-30days
Packaging Details :
Standard export Carton
Item Name :
144 Trays CT-C-IV Food Circulating Tray Dryer Machine
Model Type :
CT-C-IV
Application :
Foodstuff Industry,Medical Industry
Tray :
192PCS
Trolley :
8 PCS
Evaporatioin area :
56.5 M2
Efficient volume :
10.3 M3
Radiator area :
120 M3
Steam consumption :
80 kg/h
Electric heating power :
60 KW
Fan volume :
10350M3/h
Drying capacity :
480kg/ batch
Description

144 Trays CT-C-IV Food Circulating Tray Dryer Machine

CT-C series hot air circulation oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulation oven makes that the hot air circulation drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit. In1990,the medical management bureau of the State issued the industry standard and the uniform type is RXH.

Working Principle

This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

Product Feature

1. Controlling cabinet equipped with button(touch screen optional), easily operation and prolongs service life.

2. Most hot air is circulated in the chamber which ensures high heating efficiency and saves energy.

3. Forced ventilation used, adjustable air distributing board in the chamber makes evenly drying of materials.

4. The machine is low noisy, smooth operated, temperature auto controlled and easy for maintenance.

5. Widely applied. Suitable for versatile materials and is universal drying machine.

6. Initial and medium effective filter can be added in the air inlet and outlet as requested by custermer.

More Parameters

1. The temperatures to be used: Steam heating 50-140° C, Max. 150° C

2. Electric infrared heating: 50-350

3. Commonly used steam pressure 0.2-08Mpa(2-8kg/cm2)

4. If the electrical heating and type one, the calculation is 15kw, and the practical use is 5-8kw/h

5. The special requirements should be indicated at the time of order.

6. The use temperatures more than 140° Cand less than 60° C, should be inducted at the time of order.

7. The ovens and baking plates made by our factory are uniform in the dimensions, and can be exchangeable. The baking plate dimensions: 460*640*45mm, heating method: Steam, electricity, infrared.

Technical Parameters

Model MField standard model drying capacity(kg/batch) Radiator area(m3) Steam consumption(kg/h) Electric heating power(kw) Fan Power(kw) Overall dimensions(WxDxHmm) Equipped drying cart(set) Drying pallet tobe equipped(pc) Total weight(kg)
CT-C-O RXH-7-C 60 10 10 6 0.45 1380x1200x2000 1 24 820
CT-C-I RXH-14-C 120 20 18 15 0.45 2260x1200x2000 2 48 1580
CT-C-II RXH-27-C 240 40 36 30 0.45x2 2260x2200x2000 4 96 1800
CT-C-IIA RXH-27-C 240 40 36 30 0.45x2 4280x1200x2270 4 96 1880
CT-C-III RXH-41-C 360 80 60 45 0.45x3 2260x3200x2000 6 144 2100
CT-C-IIIA RXH-41-C 360 80 60 45 0.45x3 3240x2200x2000 6 144 2210
CT-C-IV RXH-54-C 480 120 80 60 0.45x4 4280x2200x2270 8 192 2800
CT-I RXH-14-B 120 23 20 15 1.1 2480x1200x2375 2 48 1220
CT-II RXH-27-B 240 48 40 30 1.5 2480x2200x2438 4 96 1530
CT-III RXH-41-B 360 72 60 45 2.2 3430x2200x2620 6 144 2110
CT-IV RXH-54-B 480 96 80 60 3 4460x2200x2620 8 192 2300

Product Application

This drying oven is suitable for the material and for solidification and drying de-watering in the pharmaceutical, chemical, food, farming, aquatic product, light and heavy industry as well as other industries. Such as: Raw material medicine, crude drug, prepared herbal medicine of CTM, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

Product Show

144 Trays CT-C-IV Food Circulating Tray Dryer Machine
