Chemical Industry PLC Touch Screen Control Spray Dryer 25kg/h
Chemical Industry PLC Touch Screen Control Spray Dryer 25kg/h
Chemical Industry PLC Touch Screen Control Spray Dryer 25kg/h
Chemical Industry PLC Touch Screen Control Spray Dryer 25kg/h
Specifications
Brand Name :
Guojin
Model Number :
RWSD-25
Certification :
ISO
Place of Origin :
China
Model Name :
25Kg/H Water Evaporation Chemical Industry Spray Dryers
Model type :
RWSD-25
Water evaporaton :
25kg/h
Application :
Chemicals Industry
Rotate speed :
18000
System control :
PLC touch screen
Machine material :
Stainless steel 304
Inlet air temperature :
140~350
Heating source :
Electrcity+Steam
Spray disc diameter :
100mm
Description

25Kg/H Water Evaporation Chemical Industry Spray Dryers

The spray machine for drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is the most suitable for producing solid powder or particle products from liquid materials, for this reason, when the particle size and distribution of the final products, residual water contents. Mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technology.

Spray Dryers Principle Of Work

Air is turned into hot air through air filter and heater and enters into hot air distributor at the top of the dry chamber and then enters into dry chamber spirally and evenly. At the same time, liquid of raw material is sent to centrifugal atomizer at the top of dry chamber pumped by pump through filter in which the liquid of raw material atomizes the droplets. Air and liquid of raw material flows and contacts each other fully. The moisture vaporizes rapidly. Liquid of raw material is dried into finished product in a short time. The finished product is discharged through cyclone separator at the bottom of drier. The wasted is exhausted through fan.

Spray Dryers Features

1. After the spraying of the liquid material, the speed of drying is fast, the surface area of the material will be increase greatly.

2. In the hot-air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.

3.This is especially suitable for drying the heat sensitive materials. Its final products own the good uniformity, mobility, dissolving capacity. And the final products are high in their purity and good in quality.

4. The production procedures are simple and the operation and control are easy. The liquid with the moisture contents 40-60%(for special materials, the contents may reach 90%), can dried into the powder or particle products once a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation in a certain scope. It is convenient to carry out the control and management.

Spray Dryers Technical Parameter

Model RWSD-25
Inlet temperature 140-350 automatic control
Outlet temperature ~80-90
Max. moisture evaporation 25
Centrifugal spray hear drive Compressed air drive
Speed 18000
Spray disc diameter 100
Heat source electric+Steam
Max. power of electric heating 36
Outline dimension 3x2.7x4.26
Dry powder recovery >95

Special Notice

In order to quota you the right rotary atomizer spray dryer price / rotary atomizer spray dryer / lab rotary atomizer type spray dryer price, we would like to get the following information include in your inquiry:

  • -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
  • -What is the capacity per hour you need (kg/h)?
  • -What is the initial moisture and final moisture of finished products you require to get?
  • -What about the maximum heat temperature of raw material?
  • -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
  • -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
  • -Provide us your country’s electricity information, such as phases, voltage, HZ?
  • -How about dust collect requirements?
  • -Other special requirements?

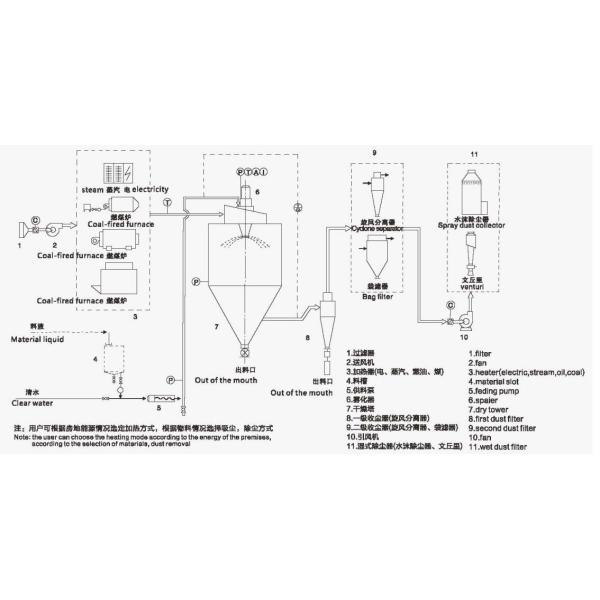

Spray Dryers Flow Diagram
Chemical Industry PLC Touch Screen Control Spray Dryer 25kg/h

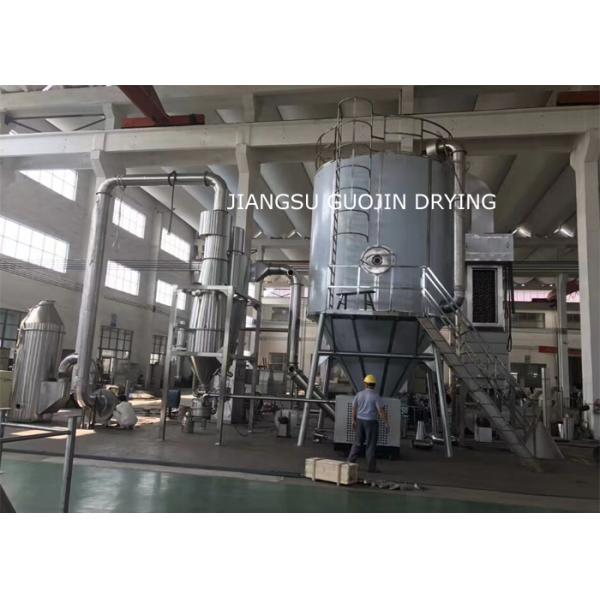

Spray Dryers Show

Chemical Industry PLC Touch Screen Control Spray Dryer 25kg/h
