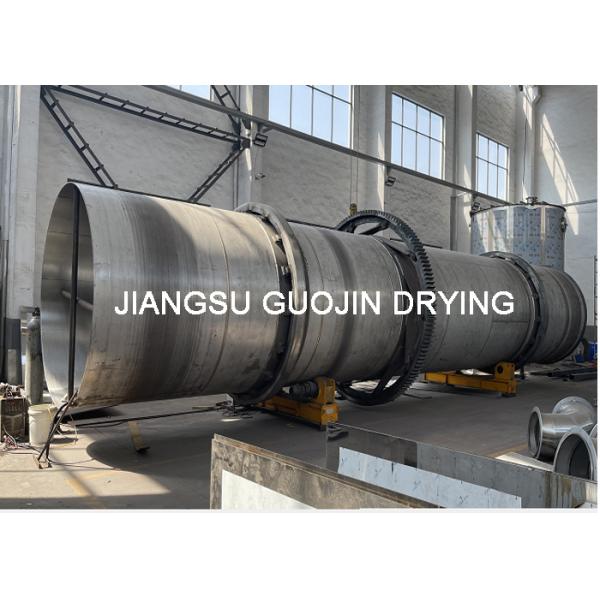

Coal Rotary Drying Machine 10M Length 5000kg/h Treated Amount
Coal Rotary Drying Machine 10M Length 5000kg/h Treated Amount
Coal Rotary Drying Machine 10M Length 5000kg/h Treated Amount
Coal Rotary Drying Machine 10M Length 5000kg/h Treated Amount
Specifications
Brand Name :
Guojin
Model Number :
HG2x10M
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
20-30days
Packaging Details :
Standard export Carton
Item Name :
10Meters Length 5000kg/h Treated Amount Rotary Drum Dryer For Coal
Application :
Medicine Processing, Chemicals Processing, Industry Processing
Item :
2x10M
Productive capacity :
5000kg/h
Revolution(r/min) :
0.6-6
Install angle :
3-5
Final Temperature :
< 1.5%
Drying Type :
Continous Drying
Heating source :
Steam, Natural Gas,Heavy oil
Description

10Meters Length 5000kg/h Treated Amount Rotary Drum Dryer For Coal

Drum drying equipment is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the blade, and are conveyed, collected and packed.

Product Features

1. High heat efficiency. The principle of heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical in the whole operation circle. Except heat loss of end cover and radiation loss, all heat can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.

2. Large operation elasticity and wide application. Various drying factors of the dryer can be adjusted, such as concentration of feeding liquid/thickness of material film, temperature of heating medium, rotating speed of the drum etc. which can change drying speed of the under dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry various materials and to meet different requirements of production.

3. Short drying period. The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive materials. It also can be pressure reducing operated if it is put in vacuum vessel.

Product Working Principle

The heat sources of the dryer is from the combustion train. Because of the tilting device of dryer, when the materials enter into the body from the feeding device, i will flow to the bottom end under the infuence of gravity, as the drier is in an inclined position. This process makes the material well-distributed in the body, then ensure the heat exchange with the heat wind. After repeated cycle with this process,the moisture content will be dried and discharged from the dryer.

Product Application

Rotary Dryers have many applications but are most commonly seen in the mineral industry for drying sands, limestone, stones and soil, ores, fertilizers, wood chips, coal, iron sulfate, filter cakes, sewage sludge, etc.

Technical Parameters

Item Productive capacity(t/h) Revolution(r/min) Motor power(kw) Install angle(o) Temp. of final
Ø1.0x5.0 0.5-1.2 0.6-6 4 3-5 <1.5%
Ø1.2x6-10 1.5-3 0.6-6 5.5 3-5 <1.5%
Ø1.5x12-18 3-5.5 0.6-6 15 3-5 <1.5%
Ø1.8x12-18 5-6.5 0.6-6 18.5 3-5 <1.5%
Ø2.2x12-22 7-12 0.6-6 22 3-5 <1.5%
Ø2.4x15-20 9-15 0.6-6 30 3-5 <1.5%
Ø3.0x25 16 0.6-6 55 3-5 <1.5%

Product Flowchart

Coal Rotary Drying Machine 10M Length 5000kg/h Treated Amount

Production Show

Coal Rotary Drying Machine 10M Length 5000kg/h Treated Amount

Contact Me
Coal Rotary Drying Machine 10M Length 5000kg/h Treated Amount

electrical, steam, natural gas or other
