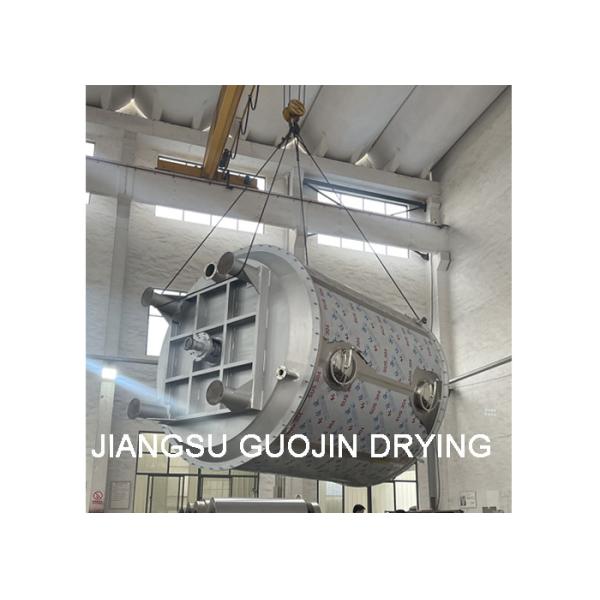

PLG2500/22 Disc Plate Food Drying Machine 316 Stainless Steel Material
PLG2500/22 Disc Plate Food Drying Machine 316 Stainless Steel Material
PLG2500/22 Disc Plate Food Drying Machine 316 Stainless Steel Material
PLG2500/22 Disc Plate Food Drying Machine 316 Stainless Steel Material
Specifications
Brand Name :
Guojin
Model Number :
PLG-2500/22
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
10 sets per month
Delivery Time :
20-30days
Packaging Details :
Standard export Carton
Item Name :
PLG2500/22 22layers 316 Stainless Steel Continuous Disc Plate Food Dryer
Model Type :
PLG-2500/22
Layers :
22
Application :
Industry processing,pharmaceutical processing
Big disc diameter :
2500 mm
Small disc diameter :
2300 mm
Dryer diamter :
3115 mm
Height :
7341mm
Drying area :
96.3M2
Power :
11kw
Material :
Stainless Steel 304, SS316, Carbon Steel
Heating source :
Electricity,Steam,Gas or others
Description

PLG2500/22 22layers 316 Stainless Steel Continuous Disc Plate Food Dryer

PLG Series Continuous disc dryer is a high efficiency conducting and continuous drying equipment. Its unique structure and operating principle determine that it has advantages of high heat efficiency, low energy consumption, small occupied area, simple configuration, easy operation and control as well as good operating environment and etc. It can be widely used in drying process in the fields of chemical, pharmaceuticals, agricultural, foodstuff, feed, and other industries.

There are three major types: normal pressure type, closed type, and vacuum type; and four major models: 1200, 1500, 2200 and 3000; and three kind of material grades, A (carbon steel), B (use stainless steel for material contacted area), and C (use stainless steel for material contacted area, steam pipes, main shaft and supports, and linings for cylinder body and top cover).The drying area of the dryer is 4 to 180. We have produced hundreds of models with auxiliary devices which are available to meet requirements of all customers.

PLG Continuous Disc Plate Dryer Working Principle

The wet material is fed continuously to the first drying layer on the top of the dryer. It will be turned and stirred by rakes when the rake arm rotates and drop down to the outer edge of the large drying plate along the exponential helical line. The material will be moved from the small drying plate to its outer edge and drop down to the outer edge of the large drying plate underneath. Both small and large drying plates are arranged alternately so the materials can go through the dryer continuously. The heat medium can be saturated steam, hot water or thermal oil. The heat will be led into hollow drying plates from one end and come out from the other end. The dried materials will drop from the last layer of the drying plate to the bottom of the dryer and then moved by rakes to the discharge outlet. The material moisture will be removed from the exhaust outlet on the top cover. For the vacuum-type plate dryer, the moisture will be sucked out by the vacuum pump on the top cover. The dried materials will be discharged from the bottom layer. The drying capability can be improved if the dryer equipped with supplementary devices such as finned heater, condenser for solvent retrieval, bag dust remover, return and mix mechanism, draft fan, and etc.

PLG Continuous Disc Plate Dryer Feature

1. Easy regulation, strong applicability, very simple start-stop operation.

2. Each layer of drying plate can be separately fed into hot/cold media, and the material temperature control is accurate.

3. The residence time of materials can be adjusted accurately.

4. The material flow direction is single, there is no backmixing phenomenon, and the drying is uniform and the quality is stable.

5. The rake blade which transfers the material after stopping feeding can quickly empty the material in the dryer.

6. Careful cleaning and observation of the equipment can be carried out through special large-sized inspection doors and mirrors.

7. The material layer is very thin, the spindle speed is low, the installed power of the system is low, and the power consumption is low.

8. The operating environment is good, the solvent can be recovered, and the exhaust dust content is very low.

9. It can be operated in vacuum, especially for the drying of heat sensitive materials.

10. The dryer is manufactured as a whole. It only needs to be hoisted and positioned. It is very easy to install and locate.

11. Drying plate layout and vertical installation occupy a small area.

PLG Continuous Disc Plate Dryer Technical Parameters

Type Diameter(mm) Height(mm) Area of dry(m2) Power(kw)
1200/4 1865 2877 3.3 1.1
1200/6 3297 4.9
1200/8 3717 6.6 1.5
1200/10 4137 8.2
1200/12 4557 9.9 2.2
1500/6 2166 3327 8.0
1500/8 3747 10.7
1500/10 4167 13.4
1500/12 4587 16.1 3.0
1500/14 5007 18.8
1500/16 5427 21.5
2200/6 2820 3781 18.5
2200/8 4201 24.6
2200/10 4621 30.8 4.0
2200/12 5041 36.9
2200/14 5461 43.1 5.5
2200/16 5881 49.3
2200/18 6301 55.4 7.5
2200/20 6721 61.6
2200/22 7141 67.7 11
2200/24 7561 73.9
2200/26 7981 80.0
2500/6 3115 3981 26.3 4
2500/8 4401 35
2500/10 4821 43.8 5.5
2500/12 5241 52.5
2500/14 5661 61.3 7.5
2500/16 6081 70.0
2500/18 6501 78.8 11
2500/20 6921 87.5
2500/22 7341 96.3
2500/24 7761 105 15
2500/26 8181 113.8
3000/8 3768 5143 48 11
3000/10 5643 60
3000/12 6143 72
3000/14 6643 84
3000/16 7143 96
3000/18 7643 108 15
3000/20 8293 120
3000/22 8793 132 18.5
3000/24 9293 144
3000/26 9793 156
3000/28 10293 158

PLG Continuous Disc Plate Dryer Show
