Single Plate Conveyor Belt Dryer 15KW For Vegetable
Single Plate Conveyor Belt Dryer 15KW For Vegetable
Single Plate Conveyor Belt Dryer 15KW For Vegetable
Single Plate Conveyor Belt Dryer 15KW For Vegetable
Specifications
Brand Name :
Guojin
Model Number :
SPCD-1.6x12
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
20-30days
Packaging Details :
Standard export Carton
Item Name :
1.6x12Meter Single Layer Conveyor Mesh Belt Dryer For Vegetable
Model Type :
SPCD-1.6x12
Application :
Food Processing
Belt width :
1.6M
Length of drying section :
12M
Thickness of maaterial covered :
10-80 mm
Temperature :
60-150Deg. C
Steam pressure :
0.2-0.8 Mpa
Steam consumption :
150-375 kg/h
Drying time :
0.2-1.2h
Blower power :
15kw
Equipment power :
12kw
Heat source :
Electricity,Steam
Description

1.6x12Meter Single Layer Conveyor Mesh Belt Dryer For Vegetable

SPCD Single Pass/Single Plate Conveyor Dryer is continuous dryer for large production. It is used for drying sheet materials, bar masterials granules materials that have good air permeability. As to dehydrated vegetable Chineseherb pieces which have high moisture and need low drying temperature, SPCD belt dryer is specially suitable.

Product Application

The vegetable dryer is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry( fruit and vegetable or nut ), pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.

Technical Parameters

Type SPCD-1.2-8 SPCD-1.2-10 SPCD-1.6-8 SPCD-1.6-10 SPCD-1.6-12
Unit number 4 5 5 5 5
Belt width(m) 1.2 1.2 1.6 1.6 1.6
Length of drying section(m) 8 10 8 10 12
Thickness of the mataerial to be covered(mm) 10~80
Temperature(oC) 60~150
Steam pressure(Mpa) 0.2~0.8
Steam consumption(kg/h) 120-300 150-375 150-375 170-470 180-500
Drying time(h) 0.2-1.2 0.25-1.5 0.2-1.2 0.25-1.5 0.2-1.2
Drying efficiency(kg H2O/h) 60-160 80-220 75-220 95-250 100-260
Total power of the blower(kw) 6.6 8.8 9 12 15
Total power of the equipment(kw) 7.15 9.55 9.55 12.75 12.55

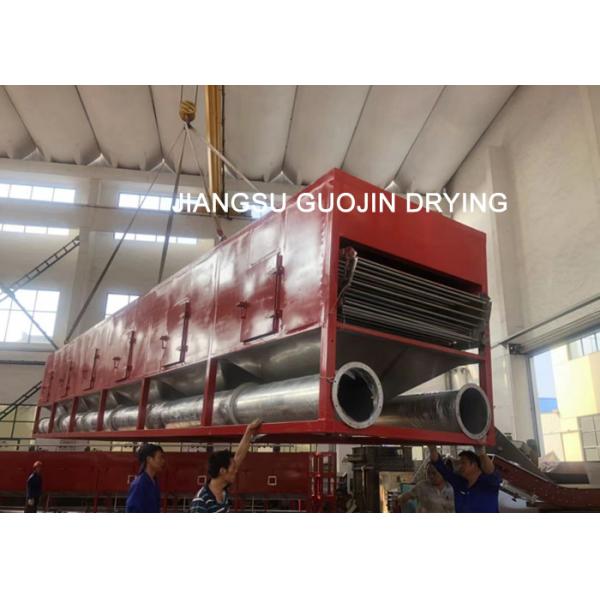

Product Show

Single Plate Conveyor Belt Dryer 15KW For Vegetable
