Roller Coating Line for Automobile Wheels and Turntables with Stepless Speed Adjustment

The Automated Roller Coating Line with Enhanced Efficiency is designed for medium-volume workpieces,

including automobile wheels and turntables. This system features pre-treatment and spray painting equipment,

an oven, a heat source system, an electronic control system, and a roller conveyor line. Workpieces are moved

on tooling fixtures through the spray area, driven by the roller's rotation. The line’s PLC control system, stepless

speed adjustment, and multiple induction probes ensure precise operation. Manual control buttons enhance

operational flexibility, making it perfect for efficient, high-quality coatings.

The roller coating line is suitable for medium-volume, regular workpieces; such as automobile wheels, turntables, ovens, etc.

As a kind of automated spraying equipment, the roller spray painting line mainly consists of six major components:

pre-treatment equipment, spray painting equipment, oven,heat source system, electronic control system, roller conveyor line, etc.

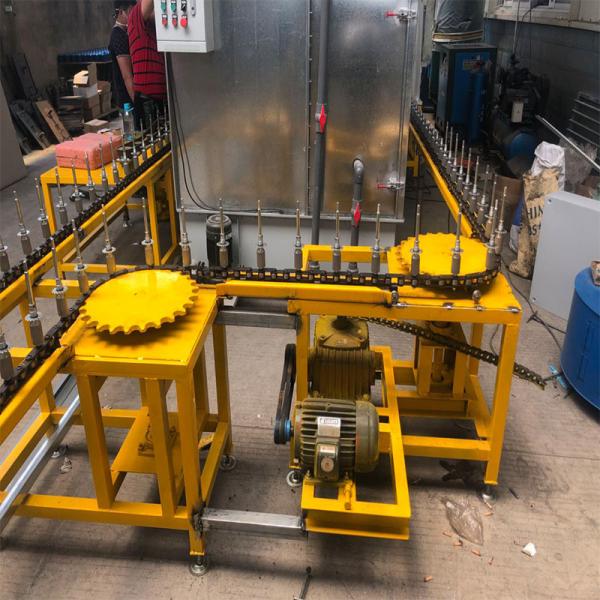

It can place the workpiece on the tooling fixture of the conveyor line, and send the workpiece into the spraying area

for spraying through the rotation of the roller. The roller line generally,uses an accumulation system. Each station has

a manual control button, and each completed workpiece can be lowered to the spraying area. Processed at the next station.

The entire line adopts PLC control, stepless speed adjustment, and is equipped with multiple induction probes and control buttons.

The electric roller is a new type of driving equipment in which the motor and reducer are placed inside the roller body.

It is mainly used in fixed and mobile belt conveyors,replacing traditional motors and separate drive equipment with

reducers outside the driving roller.





Peace Environmental Protection always adheres to the core principle of "quality first, honest service" and provides
excellent solutions for customers in the field of environmental protection equipment. The factory is located in
Guangzhou City, Guangdong Province.
The company's main products include environmental protection equipment such as spray booth,coating line,painting line
and waste gas and wastewater treatment,if you have any inquiry,please leave the inquiry here directly,will be respond to you within 12 hours
We will make the exact Design Drawing,Design Case in words,and Quotation in detail,just waiting for you leave the message here.
