16x40springsteel stainless steel Light duty slotted spring pin elastic cylinder pin ISO13337 spring lock pin roll pin te

M16x40 spring steel stainless steel Light duty slotted spring pin elastic cylinder pin ISO13337 spring lock pin roll pin tension pin spilt pin DIN7346 cotter pin dowel pin clamping pin used in machinery railway aviation automotive industry agriculture tools furniture mining plastic

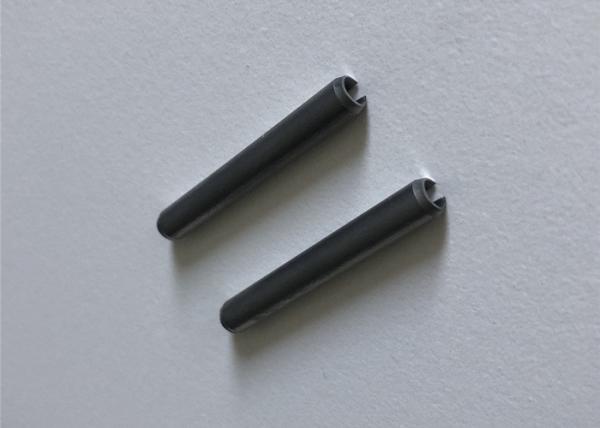

A slotted spring pin is a headless hollow cylindrical tube having a longitudinal slot down the entire length with chamfered or round ends to aid installation. This type of pin is produced to a controlled outside diameter slightly greater than the hole in which it will be installed.

The special features of slotted spring pins are as follows. First, these pins are used to connect two or more construction elements to each other. Second, they are highly suitable to absorb shear forces.

The pins can be easily removed using a mandrel and reused several times.
The pins can transmit high shear forces and are resistant to shocks and impacts due to their spring properties.

Features:

0.2 - 0.5 mm oversize compared with the nominal diameter guarantees a secure, firm, fit.

Tapered end simplifies driving into the hole.

The pins can be driven out again without damage.

Workshop

Package

FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: What is your payment method?
A: T/T. For small order less than 1000USD, 100% in advance to reduce the bank charges. For order more than 1000USD, 30% in advance and balance before shipment.

Q: Can you provide a sample?
A: Yes, our sample is provided free of charge, but not including the cost of freight.

Q: What's your delivery time?
A: Generally 15 days if the goods are in stock. If not in stock we’ll need 30 working days to produce. It depends on quantity.

Q: How to Custom-made?
A: If you have a new product drawing or a sample, please send to us, and we can custom-made for you. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.

Q: Which mode of transport would be better?
A: In general, we advice to make delivery by sea. Also we respect your views of other transportation as well.
