food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB
food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB
food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB
food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB
food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB
food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB
food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB
food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB
Specifications
Brand Name :
SPRING
Model Number :
SP-FM Filter Mesh
Certification :
ISO9001, FDA, ROSH, SGS
Place of Origin :
CHINA
MOQ :
50 Meter/Meters filter mesh
Price :
US $0.4 - 4.5 / Meter
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
10000 Meter/Meters per WeeK nylon filter mesh
Delivery Time :
3-5 work days
Packaging Details :
Waterproof plastic,Bubble bag,carton,Woven bag,Packing belt.
Material :
Nylon
Usage :
Liquid Filter
Type :
Filter Disc, filter cloth, filter elements,filter cylinder
Thickness :
53-1100um filter mesh
Length :
30-70m/roll nylon filter mesh
Width :
0.6m-3.65m filter mesh
Hole Shape :
Square
Filter Rating :
27%-80% nylon filter mesh
Product name :
nylon filter mesh
Other name :
filter screen
Mesh count :
4T-150T(13mesh~380 Mesh/inch)nylon filter mesh
Weave style :
Plain Woven nylon filter mesh
Mesh opening :
25-1931um filter mesh
Thread dia :
31-550 micron filter mesh
Factory advantage :
Lowest price, Low MOQ
Free samples :
1m Accepted
Our advantages :
more than 30 years professional factory experience
Description

Food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB

Product Description

70 100 240 250 300 400 micron nylon filter mesh manufacturer
Specification: 7T-165T Material: Nylon, stainless steel wire
Thread Diameter: 31-550 micron Width: 0.6-3.65m
Mesh Opening: 32-1931 micron Hole shape: square
Thickness: 51-1100 micron Mesh Count: 10-381 mesh/inch
Weave type: plain weave, woven filter Usage: liquid filter, air filter, dust filter
Type: filter mesh, filter cloth, mine sieving mesh, filter elements, filter disc, filter cylinder

Characteristic:

  • High Elongation
  • Excellent alkaline resistance
  • It has a working temperature of up to 120 degrees ℃.
  • Smooth filament, immersion resistance,no material drop off
  • Stable chemical and physical properties

food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB

food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB

Usage:

The filter mesh widely used in all kinds of filtration and separation, such as:

1. air filter mesh in air conditioner filter

2. liquid filter mesh for milk, juice, cheese, soya bean ect.

3. flour, solid mesh for milling

4. We can deep produce it into filter bags, filter disc and filter strainers.

food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB

Details sheet: 4T-150T for your choose

Model Specification (/cm) Mesh count (mesh/inch) Thread Diameter(um) Mesh opening(um) Open Area(%)

Thickness

(um)

Weight

(g/m2)
NL4/1931 4 10 550 1931 60 1100 251
NL5/1485 5 13 500 1485 55 1000 270
NL5/1535 5 13 450 1535 59 900 218
NL6/1254 6 15 400 1254 57 800 199
NL7/1068 7 18 350 1068 56 700 183
NL8/891 8 20 350 891 51 700 203
NL8/990 8 20 250 990 63 500 104
NL9/853 9 24 250 853 59 500 125
NL10/743 10 25 250 743 55 500 130
NL10/693 10 25 300 693 48 600 187
NL12/578 12 30 250 578 48 500 156
NL12/528 12 30 300 528 40 600 224
NL14/410 14 35 300 410 33 510 261
NL14/509 14 35 200 509 51 340 116
NL16/421 16 41 200 421 45 340 136
NL16/371 16 41 250 371 35 425 213
NL17/384 17 42 200 384 43 340 139
NL18/332 18 45 220 332 36 374 181
NL20/347 20 50 150 347 48 255 93
NL20/297 20 50 200 297 35 340 166
NL24/264 24 60 150 264 40 255 112
NL28/235 28 70 120 235 43 204 84
NL28/205 28 70 150 205 33 255 131
NL30/211 30 76 120 211 40 204 91
NL32/210 32 80 100 210 45 170 66
NL36/176 36 90 100 176 40 170 75
NL40/149 40 100 100 149 35 170 83
NL44/126 44 110 100 126 31 170 91
NL43/151 43 110 80 151 42 136 58
NL48/127 48 120 80 127 37 136 64
NL56/117 56 142 60 117 43 102 42
NL59/108 59 150 60 108 41 102 45
NL64/95 64 163 60 95 37 102 49
NL72/88 72 183 50 88 40 85 38
NL76/79 76 193 52 79 36 88 43
NL80/74 80 203 50 74 35 85 42
NL88/71 88 224 42 71 39 71 33
NL96/62 96 244 42 62 35 76 36
NL100/55 100 254 42 55 31 80 37
NL104/51 104 264 42 51 29 71 39
NL110/46 110 279 42 46 25 76 41
NL120/39 120 305 42 39 21 80 45
NL120/43 120 305 38 43 25 65 37
NL120/46 120 305 35 46 29 60 31
NL130/32 130 330 43 32 17 73 51
NL130/40 130 330 35 40 25 60 34
NL140/35 140 356 35 35 22 60 36
NL150/34 150 381 31 34 25 53 30

Our Factory

food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB

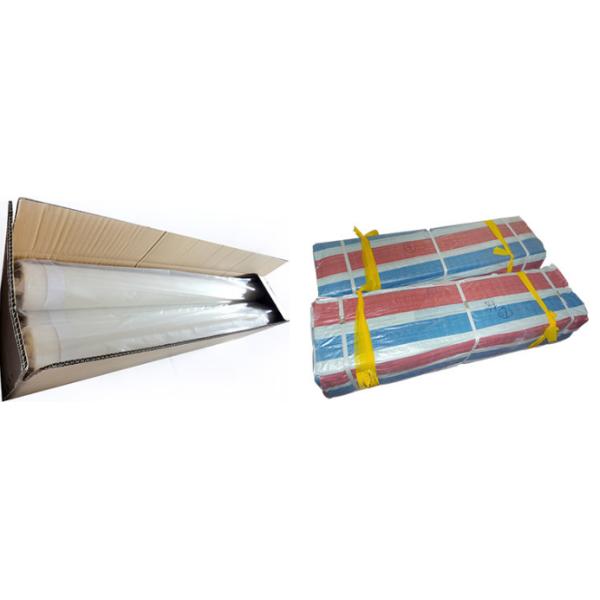

Packaging and shipping:

The common packaging:

1.30-70m/roll in PVC bag

2.2-8 rolls per carton
3.waterproof bags outside
4.package belt strengthen

The common shipping:

1.for small quantity, shipped by courier.
2.for large quantity, shiped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB
food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB
Certification
food grade nylon mesh/nylon filter mesh/nylon screen mesh with ISO19001, FDA, ROSH, SGS, LFGB
Contact Details
Shanghai Spring Industrial Corporation Co., Ltd.
Address: Room101,4#,NO.126,Siyuan Road, Shanghai,China.
Fax: +86-21-56011358
Website: www.silk-screen-mesh.com

Contact: Apple or Ms Yu
Tel: +86-21-56011358
Mobile: +8613774986069


Twitter:@springmesh
Facebook: www.facebook.com/pages/Spring-Industrial-Corporation
