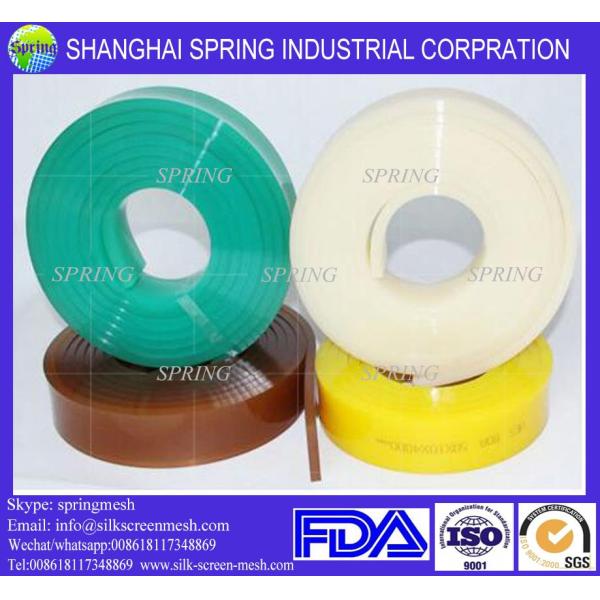

Screen printing squeegee blades

Screen printing squeegee blades is a screen printing machine used in the squeegee, mainly used in the following kinds of screen printing machine: Vertical screen printing machine, oblique arm screen printing machine, turntable screen printing machine, four-column screen printing machine and automatic screen printing machine.

Silk Screen Printing Squeegee Rubber Blade for use on screen printing Machine of the squeegee shape have six kinds: 1.straight square edge,2.single bevel + flat tip,3.single bevel,4.double bevel + flat tip,5.double bevel(V shape),6.bull nose(round top).

Edge Selection:

Screen printing squeegee blades Mainly used in textiles, advertising, self-adhesive, glass, ceramics, flower paper, tobacco and wine labels, bottles, containers, packaging, panels, signs, keyboards, membrane switches, PCB, electronics, circuit boards, CD-ROM, PVC, plastic and other aspects of screen printing machine printing.

Hardness Selections

Size Selections

Screen Squeegee Application Fields:

60,65 ShoreA squeegees are very soft; they are usually used to print on ceramic and with glitter inks.
70,75 ShoreA squeegees are recommended for printing on glass and on garments.
80,85 ShoreA squeegees are used to print with high-speed automatic machines, to print on CDs, credit cards, electronic circuits, small objects, where high precision is required.
Surface: if the item you have to print has an rough, non-planar surface, the most suitable squeegee durometer is between 60 and 70 sh. If the surface is smooth, a harder durometer squeegee, between 80 and 90, should be used.
Mesh: if a high mesh count (mesh very thin!) is being used, you need a harder squeegee (80 or 90 sh); if you are printing with glitter ink (which has large flakes of shiny, plastic material that have to pass through the mesh) you should use a softer squeegee.
Inks: the more aggressive inks, such as UV inks, cause more damage to the squeegee than a standard water based ink. The harder the material, the more solvent resistant the blade. Therefore, to eliminate swelling and chemical breakdown, use a harder durometer squeegee
Ink Deposit: a soft squeegee will deposit a thicker layer of ink than a harder squeegee.

Paraneter List:

Range of products:
We can supply special screen squeegee products. They are characterized by specific formulations according to the different final applications.

SPPU-II,SPPU-Ⅳ

Usually used in garment and textile printing. Suitable for manual and automatic printing, resistant to water-based inks and common solvents.

SPPU-II,SPPU-Ⅵ

High resistance squeegee, with optimal abrasion and chemical resistance. Perfect for high-speed printing (glass printing, cd printing, credit card printing...)

SPPU-Ⅵ,SPPU-V

Specifically conceived for high definition printing with UV and Vinyl inks. Highly recommended for printing on PVC, Polycarbonate, Polyesters, Aluminium.

SPPU-Ⅳ,SPPU-Ⅵ,SPPU-V
Realized to reduce dust deposits and optimize printing precision. The Anti-static formulation avoids electrostatic charges, even if the squeegee is used at a fast speed.

SPPU-HDI
This squeegee has been developed to meet the most demanding customers' needs.
It is highly resistant to abrasion and to the most aggressive inks and solvents. The special formulation reduces the swelling of the squeegee, granting a longer lifetime of the blade.
Especially conceived for high-speed automatic printing, glass printing, cd printing, credit card printing, and all industrial and electronic printing.

Screen printing squeegee blades are an essential tool for screen printing, probably the most important piece of equipment besides the actual screen! Shanghai SRING cooperated factory is established in 1988, with nearly 20 years experience, our factory imported the advance equipment, raw material from Europe and United states. With more than 300 skilled workers, the squeegees are well established in the world market.

Packaging and Labelling:
We usually use single box size :5x30x30 cm.
We can also use single-squeegee box – it protects the squeegees form edge damaging, dust and light.
We can label each squeegee with the data you need (batch, dimensions, hardness, profile, brand name...).
It is highly recommended to store squeegees in a dry, room-temperature (between 15°C and 21°C) environment, far from light sources. We advise to keep the squeegee laid down on a flat surface for 24 h before using it.

Why us:

1.We believe in providing quality not just first time, but every time.

2.High customer's satisfaction.

3.Focus on screen printing mesh and filtration cloth since 1983

4.Factory price, Best quality, excellent service( before or after sale)

5.One-stop service can be provided under request to save your time and cost.

6.At least 3-4times inspections before goods shipping out, the sales as the directly person with customers will check the goods not fixed time and goods.

7.Professional and highly motivated staffs.
