Screen printing on glass / screen printing mesh
Screen printing on glass / screen printing mesh
Screen printing on glass / screen printing mesh
Screen printing on glass / screen printing mesh
Screen printing on glass / screen printing mesh
Screen printing on glass / screen printing mesh
Screen printing on glass / screen printing mesh
Screen printing on glass / screen printing mesh
Specifications
Brand Name :
SPRING
Model Number :
SP-SPM silk screen printing mesh
Certification :
ISO9001, FDA, ROSH, SGS
Place of Origin :
CHINA
MOQ :
1 Square meter
Price :
US $0.4 - 1.4 / 1-50Meter
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
10000 Meter/Meters per WeeK silk screen printing mesh
Delivery Time :
3-5 work days
Packaging Details :
Waterproof plastic,Bubble bag,carton,Woven bag,Packing belt.
Material :
100% polyester monofilament
Usage :
screen printing
Type :
100% polyester monofilament silk screen printing mesh
Thickness :
100 μm 120μm 150μm silk screen printing mesh
Length :
30-70m/roll silk screen printing mesh
Width :
0.6m-3.7m silk screen printing mesh
Hole Shape :
Square
Product name :
Shanghai Spring factory Polyester or nylon silk screen printing mesh/fabric
Other name :
Shanghai Spring factory Polyester or nylon silk screen printing mesh/fabric
Mesh count :
15-420mesh/inch
Weave style :
Plain Woven silk screen printing mesh
Mesh opening :
26um -1080um silk screen printing mesh
Thread dia :
31μm 350μm
Factory advantage :
Lowest price, Low MOQ
Free samples :
Accepted
Our advantages :
more than 30 years professional factory experience
Description

Screen printing on glass

Silk screen printing glass is made by using ceramic frit to print graphics through a special screen onto float glass. Melt colorant into glass surface in a tempering furnaces and subsequently a silkscreen glass product with qualities of non-fading and multi-pattern is manufactured.

Application of Screen printing on glass:

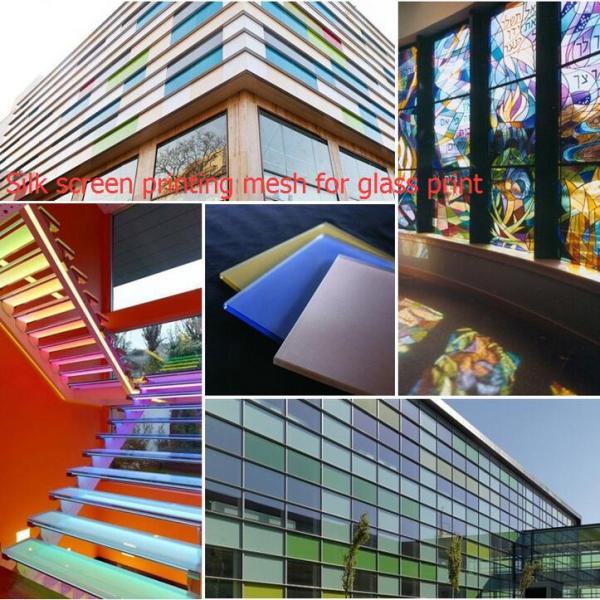

Flat Glass Screen printing mesh for glass printing is widely used in all corners of people's lives: you can easily find them in display window, building space zoning, building landscaping, car windshield and mosaic glass. They are also widely used in furniture decoration and gaming tools.

Screen printing on glass / screen printing mesh

Silk screen printing on glass Description:

Screen printing toughened glass is an opaque or translucent glass, patterned with color ceramic enamel. The pattern is applied using screen printing mesh.The enamels used do not contain any dangerous metals*such as lead, cadmium, mercury or chromium VI. The enamel is fired at a very high temperature, so that it fuses to the surface of the glass, giving it exceptional durability.

Screen printing on glass / screen printing mesh

Polyester screen mesh printing on glass plate Types:
Clear float glass, Ultra clear glass, Tinted float glass

Screen printing mesh - Printed Glass

Mesh(T)/cm-

wirediameter/μm

 mesh/inch Opening (μm) Open area(%) thickness(μm) Theoretical ink volume(cm3/㎡)
13T-150 33 619 64 300 128
21T-150 55 326 46 260 118
24T-100 60 316 57 136 65
24T-120 60 296 51 162 83
28T-140 70 217 40 195 76
32T-55 81 257 67 103 67
32T-100 81 212 45 165 73
36T-90 92 183 44 150 65
39T-55 100 177 56 88 55
39T-80 100 176 48 125 60
43T-80 110 149 41 130 53
47T-55 120 152 61 88 48
48T-70 122 133 41 115 47
53T-55 135 133 50 86 42
54T-64 137 115 39 100 39
59T-55 150 114 45 95 43
61T-64 155 90 31 101 30
61T-70 155 94 33 120 40
64T-55 160 98 38 98 36
64T-64 160 85 30 115 34
68T-55 175 85 34 85 28
72T-48 182 90 36 78 33
72T-55 182 85 30 90 27
77T-48 195 77 35 80 28
77T-55 195 67 27 88 24
80T-48 200 72 33 74 25
90T-48 230 56 25 78 19
100T-40 255 58 33 63 21
120T-34 305 45 30 55 16
130T-34 330 40 27 55 15
140T-31 355 36 26 48 12
140T-34 355 31 20 53 10
150T-31 380 32 23 49 11
150T-34 380 23 13 55 6.5
165T-31 420 23 15 48 7

Screen printing on glass / screen printing mesh

Screen printing on glass Performance Parameter:
1.Facades: combines an attractive appearance with functionality .It provides good visibility from indoors to outdoors and protects against glare.
2.Laminated: This can be used for guarding, roofing elements or floor bridges, combining ,various patterns and colours.
3.Street furniture : durable, safe product which is ideal for use in street furniture ,advertising and information panels.
4.Interior applications: different levels of light transmittance , bringing light and safety to doors , partitions, guarding, shower cubicles and furniture.
Screen printing on glass / screen printing mesh

Production Process

We buy yarn from Jintong, Switzerland and Japan, we inspect the yarn when they unloaded in our factory. (tolerance, tensile strength, physics test etc.).

After that, we put the warp wire on beam, draw the warp wire into heddle and reed. Then our experienced weaver will start weaving according to orders.

Screen printing on glass / screen printing mesh

Our Factory

Shanghai SPRING Industrial Corporation as a professional manufacture of monofilament screen mesh, we have more than 30 years experience in this line since 1983. We have full size mesh from 18mesh to 500mesh with different width and colors can be provided. We have more than 150sets Sulzer Ruti P7100 and P7300 weaving machines to make sure the goods can be produced with good surface and high tension we use the best quality yarn from China also imported from Japan for high count mesh. The max width 390CM to make sure the width can satisfy the customers demand.

Packaging and shipping:Shanghai Spring factory Polyester or nylon silk screen printing mesh/fabric

The common packaging:

1.30-70m/roll in PVC bag

2.2-8 rolls per carton
3.waterproof bags outside
4.package belt strengthen

Screen printing on glass / screen printing mesh
Screen printing on glass / screen printing mesh
Certification
Shanghai Spring factory Polyester or nylon silk screen printing mesh/fabric
Screen printing on glass / screen printing mesh

Contact:

Sales Manager: Sara

Tel:0086-21-56011358

Mob/WhatsApp/wechat:0086-18117348869

Email: info@silkscreenmesh.com

Skype: springmesh

Twitter: springmesh

Facebook: https://www.facebook.com/screenprintingmesh

Web: www.silk-screen-mesh.com
