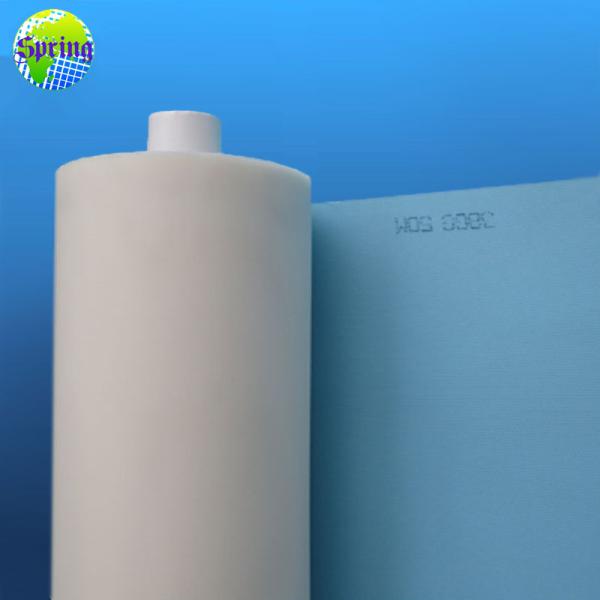

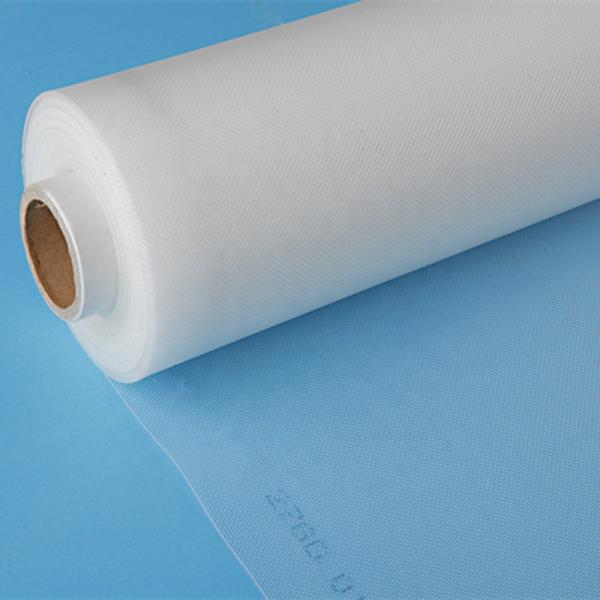

Food grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machine
Food grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machine
Food grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machine
Food grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machine
Food grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machine
Food grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machine
Food grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machine
Food grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machine
Specifications
Brand Name :
SPRING
Model Number :
JPP
Certification :
ISO9001
Place of Origin :
shanghai
MOQ :
30M
Price :
www.silkscreenmesh.com
Payment Terms :
TT/LC/Western Union/paypal/others
Supply Ability :
5500000m/month
Delivery Time :
2-5 Days
Packaging Details :
Paper tube, plastic bag, carton box, sailcloth
Material: :
Nylon
Type :
Sub-efficient
Use :
Screening
Applicable object: :
small particles
Opening rate :
47 (%)
Knitting way :
plain / twill
Monofilament diameter :
0.15 (mm)
Mesh number :
53 (mesh / inch)
Radial fracture strength :
113 (N / cm)
Wide :
0.9-1.7 (m)
Density :
325 (root / 10cm)
Performance: :
low temperature resistance, fire resistance
Description
Flour filter screens Flour screens Wheat flour screens, corn flour screens, sweet potato screens, rice wine, liquor and food filters
Size 3-17XXX, 10-74GG
Mesh 20-2000 microns
Thickness 60-1100 microns
Wire diameter 30-550 microns
Mesh 10-600 mesh
Ranch
Roll width: 42 '' 50 '' 65 '' 68 '' 72 '' 80 '';
Length of each roll: 30-70 meters; can be customized
Flour net is strong and durable, sells all over the country, and exports to more than 30 countries
Homes and regions, Pakistan, Thailand, Singapore, Australia, USA, Russia, Indonesia, etc.
Sieve silk (referred to as screen mesh) is an important auxiliary material for flour mills.
1. Classification and selection criteria of screens
According to the material, the screens used in flour mills are roughly as follows:
Silk screen: Twisted and woven into several strands of natural silk, and then woven. It is characterized by good elasticity, not easy to relax, difficult to deform the size of the eyelet, good hygroscopicity and dehumidification, and less prone to static electricity. But it is not abrasion-resistant and easy to fuzz.
Nylon (nylon) screen: woven from polyamide monofilament fiber. Abrasion resistance, long service life, high strength, good comprehensive use effect.
Polyester screen, woven from polyester fiber monofilament. High strength, not easy to deform, but abrasion resistance and antistatic effect are slightly worse than nylon mesh.
Foreign flour mills also generally used silk screens until the 1940s. At that time, the screens used for classification were usually special screens (14-72) and three screens (7-72). Type, roughly equivalent to the opening size of 1600-200um; the screen used for sieving powder, there are standard (code S, 3-25S), single material screen (code X, 4X-17X), double material screen (code XX , 3-17XX), three material sieve silk (code XXX, 3XXX-18XXX), approximately equivalent to the size of the sieve opening 300-60um.
Silk flour meshes are also commonly used in domestic flour mills, and the labels are also derived from foreign industry norms. "GG" (Grit Gauze) refers to coarse screens, which means the number of sieve holes per Vienna inch The weaving method is full-strand weaving. "XX" refers to the fine-mesh screen, which is mainly used for powder screening and semi-twist weaving.
The marking of domestic screens is based on the metric system, such as CB, JQ, JCQ, etc., which indicate the number of sieve holes per centimeter. The material has silk, nylon and silkworm interwoven, and the weaving method has plain weave, semi-twisted, full Skein and square weave.
With the introduction of imported nylon mesh materials supporting the powder production line, it has attracted the attention of the industry with its long life and good performance. It is directly marked by the size of the mesh. This opening has been serialized, standardized and standardized. Considering the industry appellation and continuous inertia, they correspond to "GG, XXX," respectively, where "GG" is plain weave; "XXX" is an enhanced plain weave, which is also the most widely used in flour mills, and weaving methods are single and double warp Xiang Zhongping weaving, general title: "XX".
The meaning of "GG, XX, XXX" in the title of imported sieve screen has changed greatly from the domestic sieve screen that everyone is familiar with. "XXX" has a thick wire diameter, long service life, and "XX" is stable in size and effective. The sieve area is slightly larger, the surface roughness is high, and the automatic classification effect is good.
The domestic code is "JM" (single and double warp heavy plain weave), "JMG" (plain weave), and now also a "PDM" (single and double warp heavy plain weave). The specifications are different from imported screens, but Close.
Antistatic property: All flour sieves require antistatic treatment. This is because the contact and friction between fibers and fibers, fibers and materials will cause the transfer of charges between the fiber surfaces and generate static electricity. It is thin and easy to be attracted by electric charge, which makes it difficult to sieve, and even pastes the net.
Polyester and nylon must be antistatic treated. Generally, there are the following methods:
1. Surface treatment: generally treated with antistatic agent;
2. Polymerization treatment: When the synthetic fiber is polymerized, add a hydrophilic polymer or a conductive low-molecular polymer;
3． Conductive fiber: if carbon is added to the center of the monofilament or carbon is added to the whole filament;
4． Use high-energy radiation, such as gamma radiation or electron beam radiation, to denature fibers, improve hygroscopicity, and increase antistatic effects.
The last three methods are actually antistatic treatment of materials, which are antistatic. The first method is surface antistatic.
Width: With the development of milling technology and grain machine technology, especially the emergence of eight-roll mills and large-scale high-level flat screens, it has indeed created conditions for increasing milling efficiency and increasing production capacity. Therefore, the sieve grid also follows the development direction along the standard type, enlarged type, and super large-scale direction. The width of the imported screen is also 1.10 meters, 1.36 meters, and 1.54 meters (the width of domestic screens is 1.04-1.27 meters). Select the appropriate width according to the sieve standard used by each plant.
Food grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machine

Food grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machine

Food grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machineFood grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machineFood grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machineFood grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machineFood grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machineFood grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machine

Food grade 3-17XXX, 10-74GG Nylon flour strainer   High side sieve Special for flour machine

Type Mesh Count
(/cm)		 Mesh Count
(/inch)		 Wire Diameter
(um)		 Mesh Opening
(um)		 Open Area
(%)
PA-10GG 4.25 11 500 1920 64
PA-12GG 4.5 11 500 1800 61
PA-14GG 5 13 450 1560 61
PA-15GG 5.5 14 400 1450 62
PA-16GG 6 15 400 1320 56
PA-18GG 6.5 17 400 1170 55
PA-19GG 7 17.8 350 1080 57
PA-20GG 7.5 19 325 1030 57
PA-22GG 8 20 300 950 58
PA-23GG 8.3 21 300 900 56
PA-24GG 9 23 280 830 55
PA-26GG 9.5 24 280 790 54
PA-27GG 10.5 27 250 730 55
PA-28GG 10.75 27 250 700 54
PA-30GG 11 28 250 660 52
PA-31GG 11.5 29 250 630 51
PA-32GG 12 30 250 600 50
PA-34GG 13 33 225 560 51
PA-36GG 13.5 34 225 530 49
PA-38GG 14 36 225 500 47
PA-40GG 15 38 195 475 49
PA-42GG 16 41 195 440 46
PA-44GG 16.5 42 195 420 46
PA-45GG 17 43 195 400 46
PA-47GG 18 46 180 375 43
PA-48GG 18 46 195 365 43
PA-50GG 20 51 150 355 51
PA-52GG 21 53 150 335 49
PA-54GG 22 56 150 310 47
PA-58GG 23 58 140 300 46
PA-60GG 24 61 140 280 43
PA-62GG 24 61 150 270 41
PA-64GG 26 66 120 265 47
PA-66GG 27 69 120 255 46
PA-68GG 27.5 70 120 245 43
PA-70GG 28 71 120 240 44
PA-72GG 29 74 120 225 42
PA-74GG 30 76 120 212 40
The above is theoretical data, for your reference only!
Type Mesh Count
(/cm)		 Mesh Count
(/inch)		 Wire Diameter
(um)		 Mesh Opening (um) Open Area
(%)
PA-3XXX 23 58 140 300 46
PA-4XXX 24 61 140 280 43
PA-5XXX 27 69 120 255 46
PA-6XXX 30 76 120 212 40
PA-7XXX 31 79 120 200 39
PA-8XXX 36 91 100 180 43
PA-8.5XXX 38 97 100 160 37
PA-9XXX 41 104 90 155 39
PA-9.5XXX 43 109 90 140 36
PA-10XXX 46 117 80 135 39
PA-10.5XXX 49 124 80 125 38
PA-11XXX 51 130 80 115 35
PA-12XXX 55 140 70 115 37
PA-12.5XXX 55 140 80 105 32
PA-13XXX 57 145 70 100 32
PA-14XXX 62 157 70 90 30
PA-14.5XXX 66 168 61 90 35
PA-17XXX 71 180 61 80 32
The above is theoretical data, for your reference only!
Type Mesh Count Wire Diameter Mesh opening Open Area
(/cm) (/inch) Warp(/um) Weft(/um) (um) (%)
PET-6XX 32/34 76/86 80+64*2 80 209 49
PET-7XX 33/36 84/91 80+64*2 80 199 47
PET-8XX 36/40 91/102 80+64*2 70 174 45
PET-9XX 43/48 109/22 70+48*2 64 150 45
PET-10XX 49/52 124/132 64+40*2 64 132 43
PET-11XX 53/60 135/152 64+40*2 48 117 44
PET-12XX 55/63 140/160 64+40*2 48 110 42
PET-13XX 58/68 147/173 64+40*2 48 100 39
PET-14XX 62/69 157/175 48+40*2 48 97 40
PET-15XX 65/74 165/188 48+40*2 48 90 38
The above is theoretical data, for your reference only!
