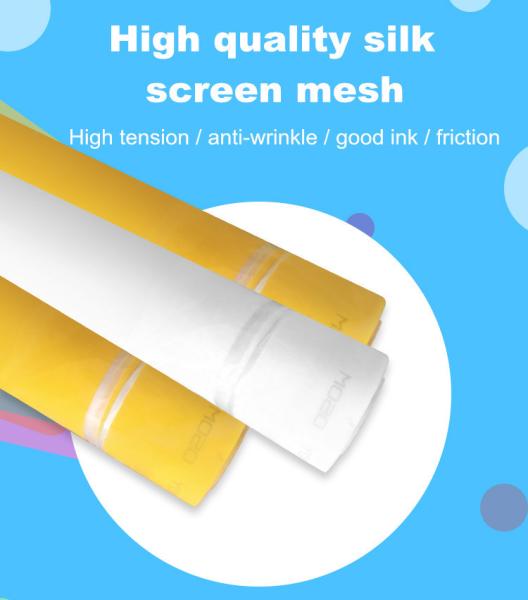

Screen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension mesh
Screen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension mesh
Screen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension mesh
Screen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension mesh
Screen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension mesh
Screen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension mesh
Specifications
Brand Name :
SPRING
Model Number :
DPP
Certification :
ISO9001
Place of Origin :
Shanghai China
MOQ :
30m
Price :
www.springscreenmesh.com
Payment Terms :
TT/LC/Western Union/paypal/others
Supply Ability :
500000m/Month
Delivery Time :
2-5Days
Packaging Details :
Paper tube, plastic bag, carton box, sailcloth
Material :
100% Polyester
Mesh count :
15-420mesh/inch
Weave type :
Plain,Twill
Color :
yellow and white
Width :
105-360cm,max width 3.9M
Length :
50m/roll,50M Or at your request
Mesh opening :
25-2000um
Application :
Screen printing,Ink Polyester Screen Printing Mesh
Specification :
7T-165T printing mesh
Description
Wire mesh characteristics: Single yarn yam yarn is suitable for general screen printing factory, garment printing factory, handbag silk screen,
Screen printing of plexiglass, plastic panels, etc. Polyester mesh has solvent resistance, high temperature resistance and water resistance.
The advantage of chemical resistance is that the polyester mesh has stable physical properties when subjected to external pressure.
The stretchability is small. It is also suitable for printing printed circuit boards with high dimensional accuracy requirements.
Select the type of mesh: clothes, cloth, water-based glue, general 80-120 mesh
200-250 mesh for printing inks that are not required for packaging, etc.
Acrylic-metal nameplate printing ink is generally used for 300-350 mesh
300-420 mesh for printing inks for electronic products
Yellow net white net: Generally only the high mesh has a yellow net, and the yellow net is printed on the edge of the pattern because it absorbs light.
Smoother than white net. The low accuracy of the general mesh is not so high, so you don't need to use the yellow net.
The price of the corresponding yellow net is also higher than that of the white net.
Good or bad mesh: The silk screen sold in this shop is marked by the joint venture (imported wire, imported steel wire)
Production, more uniform mesh, better tensile strength, better ink passability, dedicated to
High precision printing. The joint venture is not marked as ordinary domestic wire mesh, suitable for general
General printing with low printing accuracy.
Screen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension meshScreen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension meshScreen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension meshScreen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension meshScreen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension meshScreen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension meshScreen printing mesh gauze 1.27 meters wide monofilament 80 100 420 mesh screen printing supplies high tension mesh
Product specifications
100% Polyester Monofilament Mesh
Type Mesh/CM Mesh/inch Wire Dia.
(um)		 Mesh Opening(um) Open Area
(%)		 Thickness
(um)
DPP7/350 7 18 350 1080 57 640
DPP8/300 8 20 300 950 58 550
DPP10/200 10 25 200 800 64 380
DPP10/250 10 25 250 750 56 480
DPP12/200 12 30 200 633 58 390
DPP12/250 12 30 250 583 49 480
DPP16/200 16 40 200 425 46 400
DPP20/80 20 50 80 420 71 140
DPP20/100 20 50 100 400 64 185
DPP20/120 20 50 120 380 58 230
DPP20/150 20 50 150 350 49 290
DPP24/80 24 60 80 337 65 150
DPP24/100 24 60 100 317 58 190
DPP24/120 24 60 120 297 51 235
DPP24/150 24 60 150 267 41 295
DPP29/120 29 74 120 225 43 238
DPP32/64 32 80 64 249 63 115
DPP32/80 32 80 80 233 55 150
DPP32/100 32 80 100 213 46 180
DPP34/100 34 86 100 194 44 185
DPP36/100 36 90 100 178 41 190
DPP39/55 39 99 55 201 62 90
DPP39/80 39 99 80 176 47 150
DPP39/100 39 99 100 156 37 195
DPP43/80 43 110 80 153 43 155
DPP47/55 47 120 55 158 55 95
DPP47/71 47 120 71 142 44 130
DPP53/55 53 135 55 134 50 98
DPP53/64 53 135 64 125 44 115
DPP53/71 53 135 71 118 39 133
DPP59/55 59 150 55 114 46 100
DPP59/64 59 150 64 105 39 118
DPP64/55 64 163 55 101 42 102
DPP64/64 64 163 64 92 35 120
DPP72/48 72 183 48 91 43 75
DPP72/55 72 183 55 84 37 105
DPP77/55 77 195 55 75 33 108
DPP80/48 80 203 48 77 38 77
DPP90/48 90 230 48 63 32 80
DPP100/40 100 254 40 60 36 65
DPP110/40 110 280 40 51 31 70
DPP120/34 120 305 34 48 35 63
DPP120/40 120 305 40 43 27 75
DPP140/34 140 355 34 37 27 65
DPP150/31 150 380 31 36 29 52
DPP150/34 150 380 34 33 24 56
DPP165/27 165 420 27 34 31 50
DPP165/31 165 420 31 30 24 58
