Semi Automatic Rockwell Hardness Tester
Semi Automatic Rockwell Hardness Tester
Semi Automatic Rockwell Hardness Tester
Semi Automatic Rockwell Hardness Tester
Semi Automatic Rockwell Hardness Tester
Semi Automatic Rockwell Hardness Tester
Semi Automatic Rockwell Hardness Tester
Semi Automatic Rockwell Hardness Tester
Semi Automatic Rockwell Hardness Tester
Semi Automatic Rockwell Hardness Tester
Specifications
Brand Name :
SINOWON
Model Number :
iRock-TR2
Certification :
CE
Place of Origin :
Dongguan, China
MOQ :
1 Sets
Price :
Can be discussed
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets/Month
Delivery Time :
15 work days
Packaging Details :
Plywood
Code# :
811-360
Preliminary Test Force :
3Kgf(29.4N);10Kgf(98.1N)
Dwell Time :
1-60s adjustable
LCD Display Screen :
5.2 ”Color touch screen; Resolution: 640*480
Resolution :
0.1HR
Loading Mode :
Auto loading/dwell/unloading
Data Output :
Optional wireless printer
Languages :
Chinese, English, German, Portuguese, Turkish, Czech, Korean
Max. Height of Specimen :
240mm
Throat :
170mm
Dimension :
620*210*900mm
Net Weight :
120Kg
Description

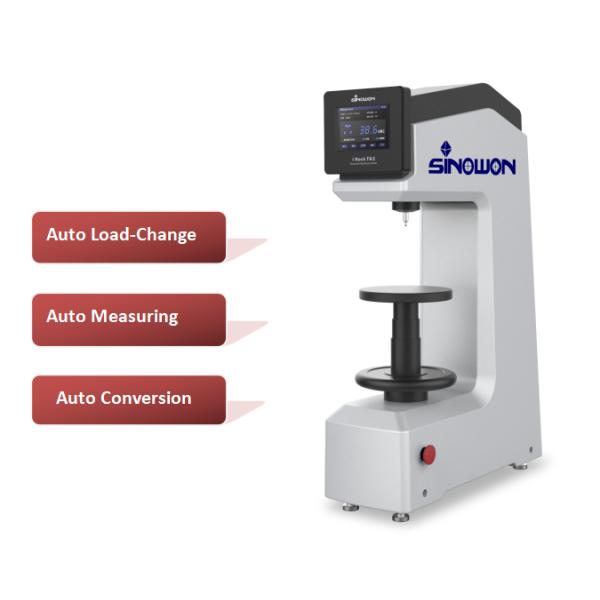

Heighten Digital Twin Rockwell Hardness Tester iRock-TR2

Semi Automatic Rockwell Hardness Tester

Features:

● Semi-automatic intelligent Digital Rockwell Hardness tester, you can automatically test the Rockwell hardness and surface Rockwell hardness measurement；

● Automatic variable load, automatic loading, automatic unloading, automatic conversion, automatic measurement；

● Friendly human-computer interaction,5.2“colorful LCD screen direct display test force,loading time,conversion value and indenter type etc；

● Automatically calculate and display the measured value, the maximum value, the minimum value, the average value and the hardness value deviation, the display shows the resolution 0.1HR；

● There are functions such as hardness upper and lower limit settings, tolerance alarms, data graph analysis, average and (single point) batch measurement modes；

● Software compensation function, the machine can be ± 3HR software compensation, no need to open the top cover for mechanical adjustment;

● With automatic hardness conversion function, according to ASTM E140 conversion, no need to check the complex hardness of the table；

● Multi-language features, can switch Chinese, English, German, Portuguese, Turkish, Czech, Korean and other languages；

● Built-in 2000 single data storage function and 1000 group packet data storage function, can view a single data and data analysis；

● Optional Bluetooth wireless printer to print the measurement data, no need to manually record and write test data.

Applications:

◆ Cemented Carbide

◆ Case-hardening Steel

◆ Copper Alloy

◆ Hardened and Tempered Steel

◆ Carburizing Steel

◆ Cast Steel

◆ Malleable Iron Castings

◆ Annealed Steel

◆ Hardened Steel

◆ Aluminium Alloy

◆ Soft Steel

◆ Bearing Steel

Specifications:

Commodity Heighten Digital Twin Rockwell Hardness Tester
Model iRock TR2
Code# 811-360
Preliminary Test Force 3Kgf(29.4N);10Kgf(98.1N)
Total Test Force 15Kgf(147.1N),30Kgf(294.3N),45Kgf(441.3N); 60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N)
Full Rockwell Scale HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV; 15T,30T,45T;15T,30T,45T; 15N,30N,45N
Dwell Time 1-60s adjustable
LCD Display Screen 5.2 ”Color touch screen; Resolution: 640*480
Resolution 0.1HR
Loading Mode Auto loading/dwell/unloading
Data Output Optional wireless printer
Conversion Scale HRC, HV, HBS, HBW, HK, HRA, HRD, HR15N, HR30N, HR45N, HS, HRF, HR15T, HR30T, HR45T, HRB
Languages Chinese, English, German, Portuguese, Turkish, Czech, Korean
Max. Height of Specimen 240mm
Throat 170mm
Dimension 620*210*900mm
Packing Dimension 710*530*1000mm
Power AC 220V/50Hz;AC110V/60Hz/200W
Net Weight /Gross 120Kg /143Kg
Execution standard GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTME-18
