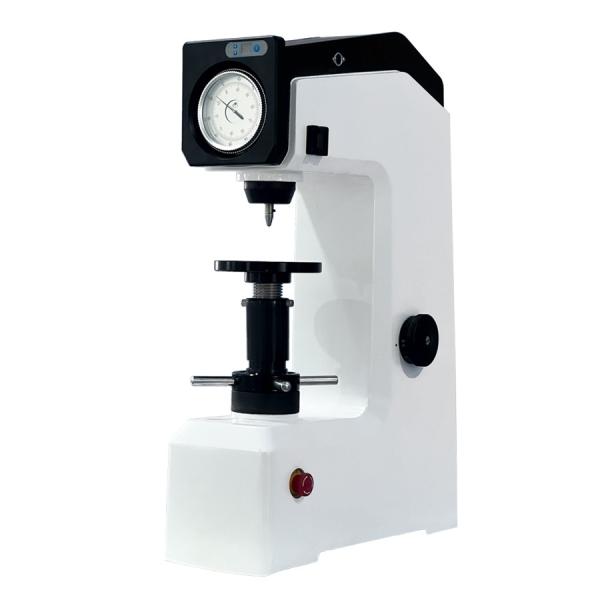

Electronic Rockwell Hardness Tester 0.5HR Resolution DigiRock MR2
Electronic Rockwell Hardness Tester 0.5HR Resolution DigiRock MR2
Electronic Rockwell Hardness Tester 0.5HR Resolution DigiRock MR2
Electronic Rockwell Hardness Tester 0.5HR Resolution DigiRock MR2
Electronic Rockwell Hardness Tester 0.5HR Resolution DigiRock MR2
Electronic Rockwell Hardness Tester 0.5HR Resolution DigiRock MR2
Electronic Rockwell Hardness Tester 0.5HR Resolution DigiRock MR2
Electronic Rockwell Hardness Tester 0.5HR Resolution DigiRock MR2
Specifications
Brand Name :
SINOWON
Model Number :
DigiRock MR2
Certification :
CE
Place of Origin :
Dongguan, China
MOQ :
1 Sets
Price :
Can be discussed
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets/Month
Delivery Time :
15 work days
Packaging Details :
Plywood
Code# :
811-120
Preliminary Test Force :
10Kgf(98.07N)
Dwell Time :
Adjustable 1-60s
Resolution :
0.5HR
Hardness Indication :
Analogue Display
Max. Height Of Specimen :
175mm
Instrument Throat :
165mm
Dimension(LxWxH) :
546*182*755mm
Loading Control :
Electronic
Net Weight :
90Kg
Description

Electronic Rockwell Hardness Tester DigiRock MR2

Electronic Rockwell Hardness Tester 0.5HR Resolution DigiRock MR2

Features:

● DigiRock MR2 analogue gauge resolution is 0.5HR, it is useful to improve the reading accuracy than traditional 1HR resolution;

● DigiRock MR2 dwell time from 1to 60s can be setup by the “time key” on the panel , it is much convenient than the setup on the manual hardness tester;

● DigiRock MR2 force knob adopts the metal material to replace the plastic, it largely improves the instrument using-life;

● DigiRock MR2 loading, dwell and unloading is buffering by electronic motor automatically ,doesn’t need the operator to handle it , it eliminates the human operation error maximum;

● DigiRock MR2 intenter protector is available to improve the using lifetime of indenter.

Application:

◆ Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.

◆ Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.

◆ Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.

Specifications:

Commodity Electronic Rockwell Hardness Tester
Model DigiRock MR2
Code# 811-120
Rockwell Scales HRC ,HRB, HRA
Preliminary Test Force 10Kgf(98.07N)
Test Force 60Kgf(558.4N),100Kgf(980.7N),150Kgf(1471N)
Dwell Time Adjustable 1-60s
Hardness Indication Analogue Display

Resolution

0.5HR
Loading Control Electronic
Max. Height Of Specimen 175mm
Instrument Throat 165mm
Power supply AC 220V/50Hz;AC110V/60Hz
Dimension(LxWxH) 546x182x755mm
Packing Dimension 620x460x870mm
Gross/Net Weight 110Kg/90Kg
Execution Standard ISO 6508,ASTM E18,JIS Z2245,GB/T230

Electronic Rockwell Hardness Tester 0.5HR Resolution DigiRock MR2

Electronic Rockwell Hardness Tester 0.5HR Resolution DigiRock MR2

Electronic Rockwell Hardness Tester 0.5HR Resolution DigiRock MR2
