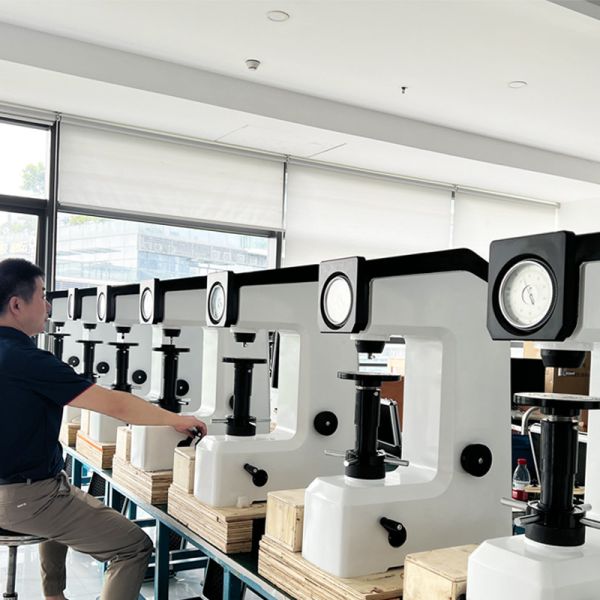

Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1
Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1
Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1
Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1
Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1
Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1
Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1
Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1
Specifications
Brand Name :
SINOWON
Model Number :
DigiRock HS1
Certification :
CE
Place of Origin :
Dongguan, China
MOQ :
1 Sets
Price :
Can be discussed
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets/Month
Delivery Time :
15 work days
Packaging Details :
Plywood
Code# :
811-210
Preliminary Test Force :
3Kgf(29.42N)
Dwell Time :
Adjustable 1-60s
Resolution :
0.5HR
Hardness Indication :
Analogue Display
Max. Height Of Specimen :
175mm
Instrument Throat :
165mm
Dimension(LxWxH) :
546*182*755mm
Loading Control :
Manual
Net Weight :
90Kg
Description

Manual Superficial Rockwell Hardness Tester DigiRock HS1

Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1

Features:

● DigiRock HS1 analogue gauge resolution is 0.5HR, it is useful to improve the reading accuracy than traditional 1HR resolution;

● DigiRock HS1 force knob adopts the metal material to replace the plastic, it largely improves the instrument using-life;

● DigiRock HS1 loading, dwell and unloading is buffering by oil pump,it eliminate the operator' s tiredness;

● DigiRock HS1 intenter protector is available to improve the using lifetime of indenter.

Application:

◆ Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.

◆ Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.

◆ Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.

Specifications:

Commodity Manual Superficial Rockwell Hardness Tester
Model DigiRock HS1
Code# 811-210
Rockwell Scales HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Preliminary Test Force 3Kgf(29.42N)
Test Force 15Kgf(147.1N),30Kgf(294.2N),45Kgf(441.3N)
Dwell Time Adjustable 1-60s
Hardness Indication Analogue Display
Resolution 0.5HR
Loading Control Manual
Max. Height Of Specimen 175mm
Instrument Throat 165mm
Dimension(LxWxH) 546x182x755mm
Packing Dimension 620x460x870mm
Gross/Net Weight 110Kg/90Kg
Execution Standard ISO 6508,ASTM E18,JIS Z2245,GB/T230

Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1

Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1

Manual Rockwell Superficial Hardness Tester Analogue Display DigiRock HS1
