Specifications
Brand Name :
SINOWON
Model Number :
SU-340T
Certification :
CE
Place of Origin :
Gongguan, China
MOQ :
1 Sets
Price :
Can be discussed
Payment Terms :
L/C, T/T
Supply Ability :
300 Sets/Month
Delivery Time :
15 work days
Packaging Details :
Carton
Code# :
882-141T
Optional Probe :
20N: HP-2T
Hardness Scales :
HV; HRA, HRB, HRC; HB；HS
Screen :
3.2“ Color LCD
Language :
Chinese, English, German, Portuguese, Turkish
Data Output :
RS232 Hyper Terminal/Bluetooth Printer
Word Input :
Letters and numerals
Battery Voltage :
Rechargeable lithium battery; Voltage :4.2V, 3200mAh
Main unit Dimension :
160*80*30mm
Weight :
(No Probe): 0.5Kg
Description

Shorten Ultrasonic Hardness Tester (Tube Hardness Tester,Inner Wall Hardness Tester)

SU-340T

Shorten Ultrasonic Hardness Tester SU-340T Tube / Inner Wall Hardness Tester

SU-340T Introduction:

l SU-340T Shorten Ultrasonic Hardness Tester is a special manual portable durometer with shorten probe HP-1T made by Sinowon group. It applies method of ultrasonic contact impedance to make hardness testing at the spot.

l SU-340T is a NDT durometer due to the contact indention is too small to observe, it is one of the excellent solution to test hardness of inner wall, such as, engine, pressure vessel, pipeline, etc.

l SU-340T conforms the standard ASTM A1038-2005, DIN standard DIN50159-1-2008 and China National standard GB/T 34205-2017.

Application:

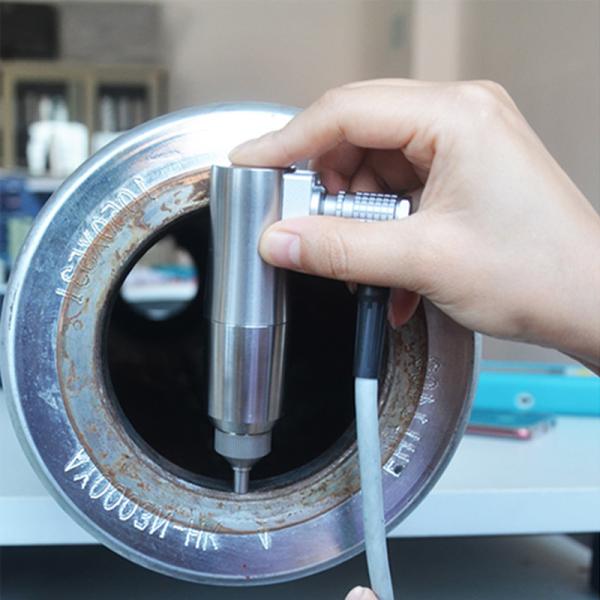

SU-340T equips with short probe, it can non-destructively measure hardness of internal wall of tube, also called Tube Hardness Tester,Inner Wall Hardness Tester.

Features:

l Perfect Accuracy——±3% HV, ±1.5HR, ±3%HB

l Microscopic Indentation—— Only high-power microscope can observe the indentation.

l Quick Measurement——Result in 2 seconds.

l Large LCD Display——Directly display measurement result, times count, maximum, minimal, average and deviation.

l Friendly Operation——Operate well after short training.

l Promised Warranty——2-Year warranty for main unit (Excludes Probe).

l Mass Storage——Save 1000 groups measurement data.

l Simple Calibration——Save 20 groups calibration data for invoking, improve calibration efficiency.

Specifications:

Commodity Shorten Ultrasonic Hardness Tester
Model SU-340T
Code# 882-141T
Optional Probe

20N: HP-2T
Range(DIN)

HRC:20-68；HRB:55-100；HRA:37-85；

HBS:100-500；HV:100-1500；Mpa:255-2180N/mm

Accuracy(%)

 Scale ﹤250HV 250~500HV 500~800Hv ﹥800HV
HV0.1 6 7 8 9
HV0.3 6 7 8 9
HV0.8 5 5 6 7
HV1 5 5 6 7
HV5 5 5 5 5
HV10 5 5 5 5
Hardness Scales HV; HRA, HRB, HRC; HB; HS
Screen 3.2“ Color LCD
Data Display

Loading force, Testing-times, Testing result, Average,

Maximum,Minimum,Deviation and Conversion scale.
Language Chinese, English, German, Portuguese, Turkish
Data Output RS232 Hyper Terminal/Bluetooth Printer
Data Storage To save 1000-groups of measuring data and 20-groups of calibration data
Word Input Letters and numerals
Working Environment Temperature: -10°C to 50°C; Humidity :30%-80% R.H.
Battery Voltage Rechargeable lithium battery; Voltage :4.2V, 3200mAh
Recharger Voltage AC220V/50Hz, 110V/60Hz
Main unit Dimension and Weight Main unit Dimension :160*80*30mm (L*W *H); Manual Probe: Φ22*153mm;

Weight(No Probe): 0.5Kg
Packing Dimension and Weight Packing Dimension :320*430*155mm (L* W *H) ; Packing Weight (Standard Delivery):4.3Kg
