Specifications
Brand Name :
SINOWON
Model Number :
AutoVision26162A
Certification :
CE/ROHS
Place of Origin :
Jiangmen, China
MOQ :
1 Sets
Price :
Can be discussed
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets/Month
Delivery Time :
30 work days
Packaging Details :
Plywood
Code# :
523-180R
X/Y Axis Travel :
(2600*1600)mm
Z Axis Travel :
200mm
X/Y/Z Axis Linear Scale :
Resolution: 0.1um
XY Axis Accuracy :
≤4.0+L/200(um)
Z Axis Accuracy :
≤5.0+L/200(um)
Repeatability :
2um
Measuring Software :
iMeasuring
Dimension(WxDxH) :
(3572*2170*1926)mm
Net Weight :
6500Kg
Description

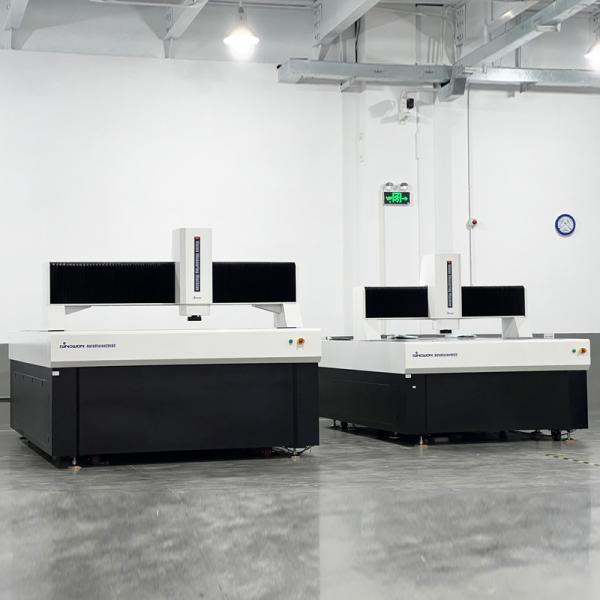

High Precision Super Large Travel Automatic Vision Measuring Machine

AutoVision26162 Series

Super Large Travel Auto Vision Measuring System High Precision Measuring Machine

Product Introduction:

AutoVision is a high precision moving bridge automatic vision measuring instrument designed for high precision and large scale measurements. Using mobile bridge structure, measuring the workpiece stationary, guarantee measure precision and stability, is suitable for the electronics industry, medical apparatus and instruments, measurement of LCD and aerospace and other industries.

Product Characteristic:

  • Moving bridge type structure, measuring workpiece is fixed;l
  • Four-axis CNC fully auto close loop control, auto measurement;l
  • Indian Marble base and pillar, good stability;l
  • Imported RSF linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system;
  • Imported HD color camera to meet the needs of clear observation and accurate measurement;
  • 8.3x high-resolution motorized coaxial zoom lens, accurate doubling and one times pixel correction only needed;
  • With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatically control the brightness in the 8-division;
  • Powerful function and easy operation iMeasuring Software to enhance quality control;l
  • Optional MCP Probe and Laser Senser Module. Machines can be customized according to customers’ requirements.

Specifications:

Commodity High Precision Super Large Travel Automatic Vision Machine AutoVision Series
Model AutoVision26162
X/Y Axis Travel (mm) 2600*1600
Z Axis Travel (mm) 200
X/Y/ZAxis Linear Scale (um) Open Grating Ruler, resolution: 0.1um
Linear Guide X Axis 260N.m Thrust Magnetic Levitation Motor with INA Germany Dual Linear Guide
Y Axis 1100N.m Thrust Dual Magnetic Levitation Motor with INA Germany Quadruple Linear Guide and Dual Grating Encoder
Z Axis Panasonic 400W AC Servo Motor with Brake and INA Germany Dual Linear Guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Accuracy* (um) XY Axis:≤4.0+L/200
Z Axis:≤5.0+L/200
Repeatability (um) 2um
Illumination System Contour LED parallel contour illumination
Surface 0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Video System** 1/1.8" High-Definition Digital Color Camera
8.3X Motorized Zoom Lens; Optical Magnification: 0.6X~5.0X; Video Magnification: 20X~170X (21” monitor)
Measuring Software iMeasuring
Operating System Support WIN10/11-32/64 bit operating system
Language English, Simplified Chinese, traditional Chinese, other languages can be added
Working Environment Temperature 20℃±2℃, temperature change<1℃/Hr; humidity 30%~80%RH; vibration<0.02g's, ≤15Hz
Power Supply AC220V/50Hz; 110V/60Hz
Dimension (WxDxH) (mm) 3572*2170*1926
Net Weight (Kg) 6500

Note:

L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

Magnification is approximate value, it is related to the dimension of monitor and resolution.

Field of view(mm) = (diagonal*Horizontal*Vertical)

Product Configuration Model Description(Example with AutoVision 26162):

Product Category 2.5D 3D 2.5D 3D
Commodity

2.5D Automatic Vision

Measuring Machine

 3D Automatic Contact & Vision Measuring Machine 2.5D Automatic Laser-Scan & Vision Measuring Machine

3D Automatic Multisensory

Measuring Machine
Model AutoVision26162A AutoVision26162B AutoVision26162C AutoVision26162D
Type A B C D
Significance Optical Zoom-lens Sensor Zoom-lens Sensor and Contact Probe Sensor Zoom-lens Sensor and Lazer Sensor Zoom-lens Sensor, Contact Probe Sensor and Lazer Sensor
Contact Probe Without MCP-Kit1 Without MCP-Kit1
Lazer Module Without Without Omron Lazer Omron Lazer
Software Version iMeasuring4.1 iMeasuring4.2 iMeasuring5.0 iMeasuring5.1

Moving Bridge Automatic Vision Measuring Machine Models and Specifications:

Model Code# Model Code# Model Code# Model Code#
AutoVision432A

523-180H

 AutoVision542A 523-180J AutoVision652A 523-180K AutoVision862A 523-180L
AutoVision432B 523-280H AutoVision542B 523-280J AutoVision652B 523-280K AutoVision862B 523-280L
AutoVision432C 523-380H AutoVision542C 523-380J AutoVision652C 523-380K AutoVision862C 523-380L
AutoVision432D 523-480H AutoVision542D 523-480J AutoVision652D 523-480K AutoVision862D 523-480L
Model Code# Model Code# Model Code# Model Code#
AutoVision1082A 523-180M AutoVision12102A 523-180N AutoVision15122A 523-180P AutoVision18122A 523-180Q
AutoVision1082B 523-280M AutoVision12102B 523-280N AutoVision15122B 523-280P AutoVision18122B 523-280Q
AutoVision1082C 523-380M AutoVision12102C 523-380N AutoVision15122C 523-380P AutoVision18122C 523-380Q
AutoVision1082D 523-480M AutoVision12102D 523-480N AutoVision15122D 523-480P AutoVision18122D 523-480Q
Model Code# Model Code# Model Code# Model Code#
AutoVision26162A 523-180R SinoVision342A 528-180H SinoVision452A 528-180J SinoVision562A 528-180K
AutoVision26162B 523-280R SinoVision342B 528-280H SinoVision452B 528-280J SinoVision562B 528-280K
AutoVision26162C 523-380R SinoVision342C 528-380H SinoVision452C 528-380J SinoVision562C 528-380K
AutoVision26162D 523-480R SinoVision342D 528-480H SinoVision452D 528-480J SinoVision562D 528-480K

Moving Bridge Automatic Vision Measuring Machine Measurement Space Guide Table:

Travel Model Accuracy X Axis Travel mm Y Axis Travelmm Z Axis Standard Travel mm Z Axis Maximum Custom Travel mm
E1x,y E1z
300X400X200 SinoVision342 1.2+L/200 3.0+L/200 400 300 200 400
400X500X200 SinoVision452 500 400 200 400
500X600X200 SinoVision562 600 500 200 400
400X300X200 AutoVision432 1.8+L/200 4.0+L/200 300 400 200 400
500X400X200 AutoVision542 400 500 200 400
600X500X200 AutoVision652 500 600 200 400
800X600X200 AutoVision862 600 800 200 400
1000X800X200 AutoVision1082 2.0+L/200 5.0+L/200 800 1000 200 300
1200X1000X200 AutoVision12102 2.5+L/200 5.0+L/200 1000 1200 200 300
1500X1200X200 AutoVision15122 3.0+L/200 5.0+L/200 1200 1500 200 300
1800X1200X200 AutoVision18122 3.5+L/200 5.0+L/200 1200 1800 200 200
2000X1500X200 AutoVision20152 4.0+L/200 5.0+L/200 1500 2000 200 200
2600X1600X200 AutoVision26162 1600 2600 200 200
  • Other travel specifications can be customized according to customer needs.
