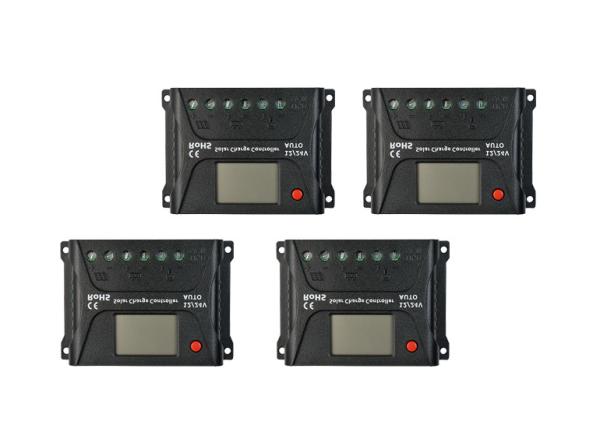

ISO SRNE Solar Panel Regulator Charge Controller 60A TVS Lighting Protection

Features:

1. Automatic identification system voltage
2. Charging program options for sealed, GEL and flooded lead-acid batteries and lithium batteries are available.
3. An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charge to the battery periodically or when over discharged, can effectively prevent the battery from non-equalization and sulfuration, thus extending the battery's service life (with the exception of GEL and lithium batteries).
4. With temperature compensation employed, charging parameters can be automatically adjusted (with the exception of lithium batteries).
5. A wide range of load working modes facilitate the product's application to different types of street lights and monitoring devices.
6. The product provides overcharge, over-discharge, overload protection, as well as short-circuit and reverse-connection protection.
7. By virtue of an advanced load starting method, large-capacitance loads can be started smoothly.
8. A range of parameter settings and power-down saving functions are available ,thus requiring no repeated setting.

FAQ:
Q: How many charging mode does the controller have?
A: There are two charging modes. There are PWM and MPPT. MPPT is the most advanced. Srne have already developed MTTP charge controller with high performance, reliability, efficiency and fast tracking speed.

Q: What's the difference of the PWM charge controller and MPPT charge controller?
A: 1. MPPT controller uses maximum power tracking technology, compared to the PWM controller, the MPPT can generate more electricity with the same solar panels.
2. MPPT controller has low requirement of solar power system voltage, if the line or component parts damage the voltage, using MPPT controller does not affect the system generating.
3. MPPT controller can detect the temperature of the battery, then adjust the temperature by itself, the solar panel can charge the battery more efficiency.

Q: Why should the controller have temperature compensation function?
A: As temperature rises, electrochemical activity in the battery increases. Similarly, as temperature falls, electrochemical activity decreases. Therefore, as temperature rises, charging voltage should be reduced to prevent overcharge, as temperature falls, charging voltage should be increase to avoid undercharge. In general, to assure optimum service life, use of a temperature compensated charger is recommended.

Q: How does your factory carry out quality control?
A: Quality is our priority. Our QC always attached great importance to quality control from the very beginning to the end of the production. Each product will be fully assembled and carefully tested before packed.

Why choose us?
SRNE, as a high-tech enterprise with the government support ,and with own R&D team as well as factory, has become the famous brand and the experts of PV storage management and control, we always insist on good quality, professional service and leading technology. Besides, customer can purchase premium products with favorable prices from us.
Our R&D team and service: in SRNE, there' re some technicians having more than 10 years experience in the field of solar controller and all the products we design are the trend of market development.
Our tenet is continuously in pursuit of warm customer service.
